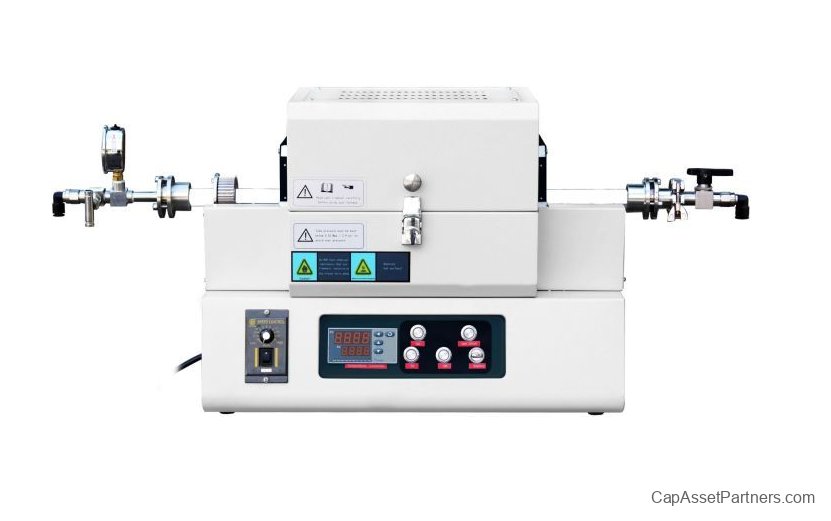

1200°C 1-Zone, Rotary Top-Open Tube Furnace

Experience precision and efficiency with the RTF1200 series compact top-open rotary tube furnace. Designed for advanced thermal processes, this high-performance furnace features spiral wire coils embedded in premium Mitsubishi alumina fiber insulation. Its double-walled steel internal housing significantly reduces heat loss, ensuring optimal thermal management. The furnace operation is governed by a sophisticated multi-segment digital controller, enabling precise temperature regulation.

Key Features:

Compact, portable, and lightweight design for various laboratory applications.

Top-open furnace chamber for seamless and rapid access to the tube.

Microprocessor-based self-tuning PID control system minimizes thermal overshoot.

Facilitates multiple atmosphere processes in a single cycle, ideal for tasks like binder burnout in air and parts sintering in a controlled environment.

Long-lasting Type K thermocouple ensures consistent temperature readings.

CE compliant, meeting stringent European safety standards.

Safety Features:

Overheat protection system automatically shuts down the furnace if the temperature exceeds safe limits or if there's a thermocouple malfunction.

Power failure protection resumes operation from the point of interruption once power is restored.

Limit switch feature ensures the furnace turns off automatically when the top is opened.

Warning: Avoid introducing explosive gases, such as Hydrogen, Carbon Monoxide, and Methane, into the furnace.

Included in the RTF1200 Series:

Quantity	Product
1 piece	Quartz tube 25mm OD x 700mm L (2" diameter x 5" L in the center with baffle)
1 set	Stainless steel vacuum sealing flanges with pressure meter
1 piece	Stainless steel hook
1 set	Thermal block
2 pieces	Spare fuse
1 pair	Thermal gloves
1 piece	Furnace operation manual
