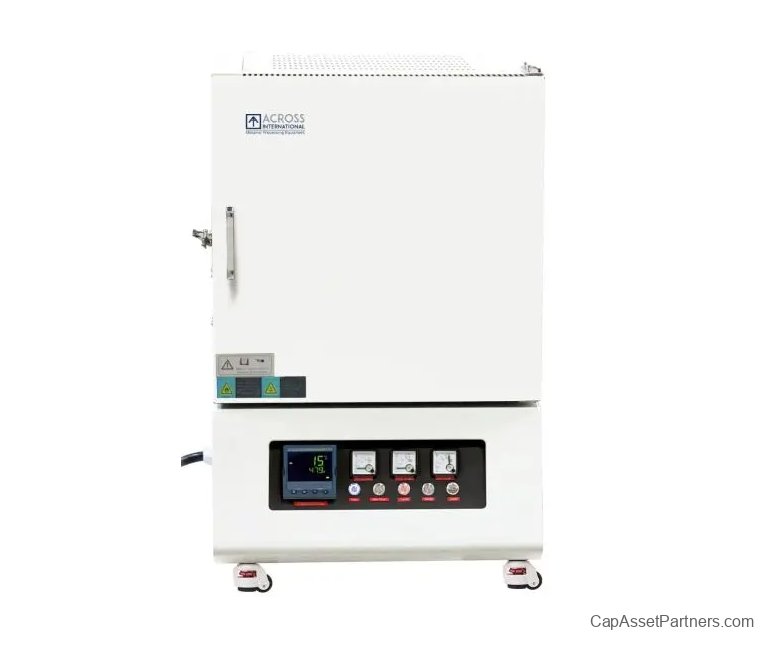

1400°C 40-Segment Muffle Furnaces - CF1400 Series
The CF1400 Series Muffle Furnaces are engineered for durability and precision, making them an indispensable asset for any laboratory environment. With an impressive maximum operating temperature of 1400°C, these furnaces are constructed with high-quality Mitsubishi alumina fiber insulation and robust silicon carbide (SiC) heating elements to ensure optimal performance and longevity.
Alongside its high-temperature capabilities, the double-walled steel internal housing significantly reduces heat loss, enhancing energy efficiency and safety during operation.
Advanced Control Features
Each unit is equipped with a cutting-edge Shimaden digital controller, featuring a 40-segment programmable setup that facilitates extensive temperature control. The built-in RS485 digital communications port and USB adaptor allow seamless connectivity to a PC for remote monitoring, enabling easy access to test results which can be saved and exported for further analysis.
Key Features:
- Microprocessor-based self-tuning PID control for precise thermal management with minimal overshoot.
- Integrated ammeter and dual voltmeters simplify monitoring and troubleshooting processes.
- Computer interface supports enhanced operational control.
- Long-life type S thermocouple ensures accurate temperature readings.
- ETL and CE certifications affirm compliance with international safety standards.
Safety Features:
- Overheat protection mechanism automatically shuts down the furnace if the temperature exceeds safe limits.
- Automatic shutdown in case of thermocouple failure or malfunction ensures safety during operations.
- Power failure protection resumes operation from the last recorded temperature once power is restored.
Included Accessories:
| Quantity |
Product |
| 1 piece |
Type S thermocouple |
| 1 piece |
Stainless steel tongs |
| 2 pieces |
Spare heating element |
| 1 set |
Alumina thermal cushion block and thermal gloves |
| 2 pieces |
Spare fuse |
| 1 set |
USB/RS485 computer interface kit |
| 1 piece |
Furnace operation manual |
| 1 piece |
Shimaden fp93 temperature controller manual and software |
Specifications:
| SKU |
Power Requirement |
Temperature Accuracy |
Controller |
| CF1400.6.6.6 |
208-240V, 50/60Hz, single phase |
±1°C |
Shimaden digital, 40-segment |
| CF1400.12.8.8 |
208-240V, 50/60Hz, single phase |
±1°C |
Shimaden digital, 40-segment |
| CF1400.16.12.12 |
208-240V, 50/60Hz, single phase |
±1°C |
Shimaden digital, 40-segment |
Dimensions:
| SKU |
Dimensions |
| CF1400.6.6.6 |
20 x 19 x 32" |
| CF1400.12.8.8 |
22 x 25 x 34" |
| CF1400.16.12.12 |
26 x 28 x 39" |
