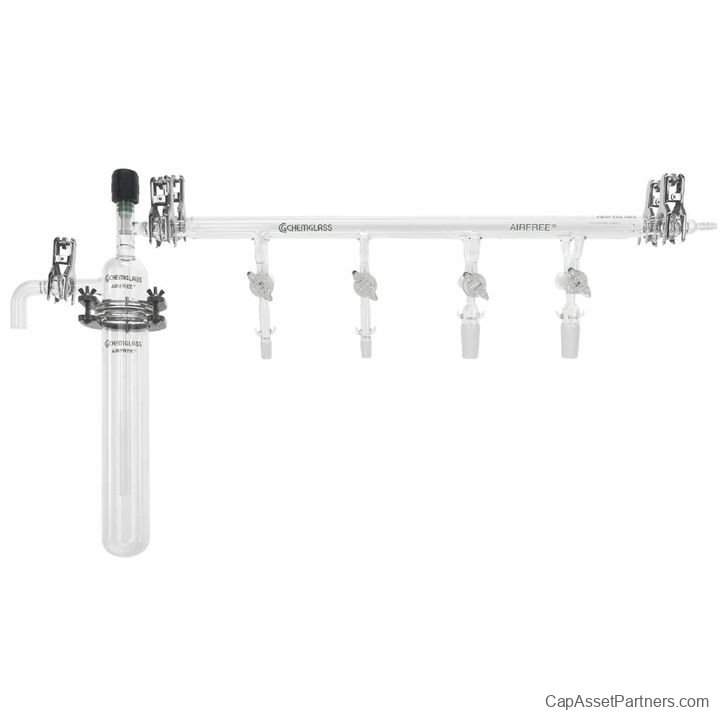

Chemglass 4-Ports, Inert Lines Vacuum Manifolds Airfree, Schlenk
Key Features
- Flexible and compact design for versatile laboratory use.
- Constructed with CG-474-02 double oblique hollow high vacuum greased stopcocks across all four ports, ensuring reliable performance.
- Each port features two 14/20 inner joints and two 24/40 inner joints, conveniently spaced at 5 inches center to center.
- Equipped with #15 o-ring joints at all four ends, allowing for easy attachment of trap assemblies to either side of the vacuum bank.
- Includes two AF-0210-01 #15 stoppers and three AF-0070-05 #15 o-ring joint to serrated hose adapters for enhanced functionality.
- Robust two-piece trap assembly design with an adjustable 0-12mm Chem-Vac™ Chem-Cap® valve for effective shut-off.
- Easy connection of the stopper and body through a durable 57mm flat o-ring flange, complete with a CG-139-02 clamp and #331 Viton o-ring.
- Trap body dimensions measure 57mm OD x 300mm long, providing ample space for sample processing.
- Comes with one AF-0070-03 #15 o-ring joint to 3/4" straight tubing adapter and one AF-0070-20 #15 o-ring joint to 3/4” bent tubing for seamless integration with heavy wall flexible vacuum tubing.
- A variety of AF-0070 adapters are available to accommodate different internal diameter vacuum tubing needs.
Please note: Airfree vessels and AF-0455 adapters must be purchased separately.
