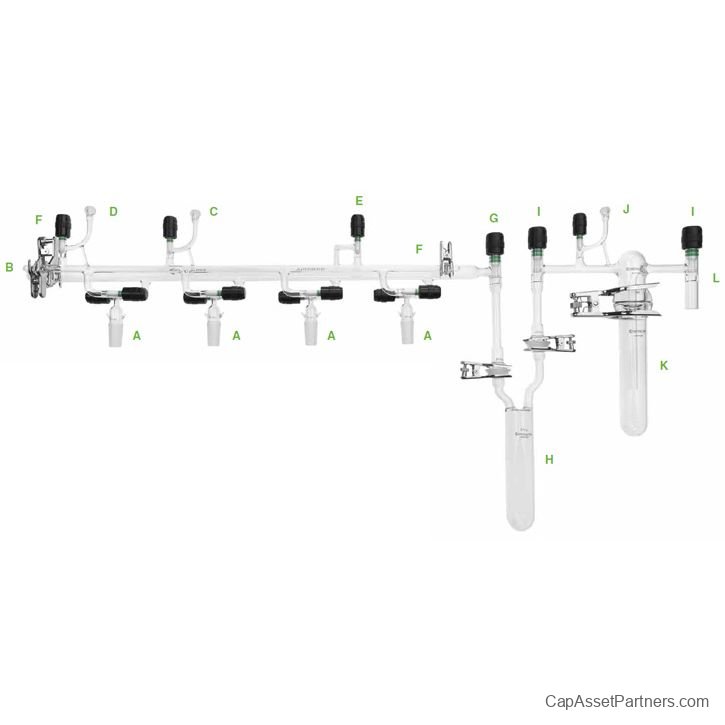

4-Ports Okuda Vacuum/Inert Lines, Airfree, Schlenk
The 4-Ports Okuda Vacuum/Inert Lines provide a versatile and efficient solution for your laboratory needs, ensuring high-quality performance and reliability. Constructed with precision engineering, these lines are designed to facilitate a range of applications requiring vacuum or inert gas environments.
Key Features:
- Main vacuum line featuring four 24/40 inner ports for optimal connectivity.
- Equipped with 0-4mm Chem-Vac Chem-Cap® valves, ensuring robust control of gas flow.
- Valves are strategically sealed to either the vacuum or inert gas side of the manifold, featuring a 90° bend for streamlined access.
- Strong, compact assembly allows for efficient use of laboratory space.
- Flexible installation options permit trap assembly setup on either the right or left side.
- Port spacing measures 170mm center to center for easy integration into existing setups.
- Cleanout at the vacuum line end includes a #25 o-ring joint, complete with a cap-style stopper for convenient maintenance.
- Incorporates a valved gauging port on the main vacuum line, featuring an 18/9 ball joint for accurate monitoring.
- The inert gas line offers a dedicated port for connecting to a bubbler or inert gas source, also equipped with an 18/9 ball joint.
- The valved cross-over line effectively evacuates the entire system, enhancing operational efficiency.
- End cleanouts on the inert gas line feature #9 o-ring joints and come with cap-style stoppers for secure closures.
- Manifold connects seamlessly to the dual trap assembly via a 35/20 ball joint, incorporating a 0-12mm Chem-Vac™ Chem-Cap® shutoff valve for isolated line operation.
- Pre-trap (H) specifications: 50 mm OD x 205 mm in length, including two 35/20 socket joints for manifold and main trap connection.
- Main trap assembly is designed with two 0-12 mm Chem-Vac™ Chem-Cap® valves, allowing for total trap isolation during cleaning procedures.
- Inclusively features a valved gauging port positioned between the main and pre-trap, utilizing an 18/9 ball joint for enhanced measurement capabilities.
- Main trap dimensions: lower body 45 mm OD x 210 mm in length, fitted with a 40 mm o-ring joint for secure connections.
- Connection to the vacuum source is 22 mm outer diameter, optimized for use with heavy wall rubber vacuum tubing.
Package Includes:
- #18 S.S. pinch clamps (2)
- #35 S.S. pinch clamps (3)
- #65 S.S. pinch clamps (1)
