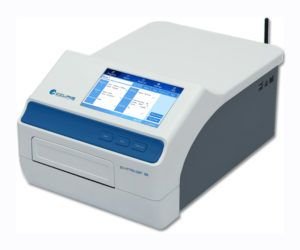

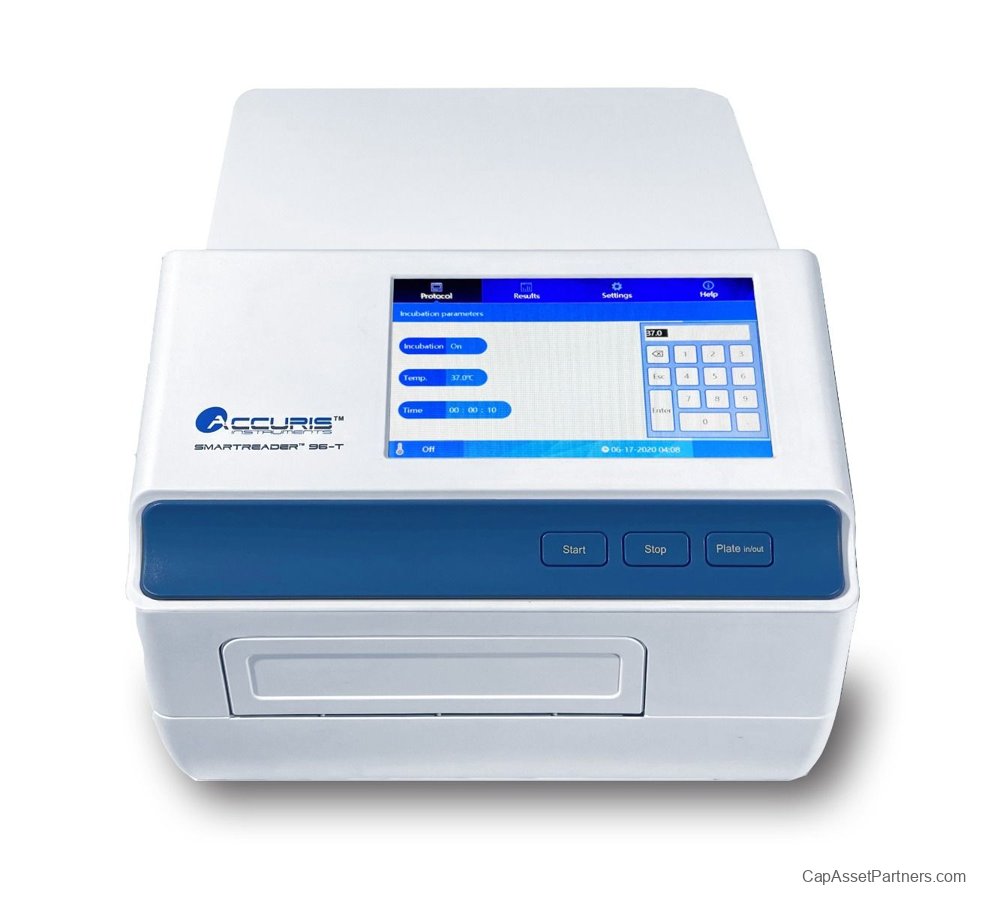

Accuris™ Microplate Absorbance Reader, 115V-230V
The Accuris SmartReader 96 (model MR9600) is an essential instrument for laboratories engaged in precise measurements of concentration and absorbance in 96-well plates. This state-of-the-art absorbance reader is designed to streamline your workflow with its user-friendly features and advanced technology.
Key Features:
- Intuitive Control: Equipped with a 7-inch color touch screen for easy navigation and control.
- Broad Wavelength Range: Filter-based system operates from 340 to 750 nm to accommodate various assay needs.
- Standalone Functionality: Operates independently, with USB flash drive support for effortless data transfer.
- Dynamic Absorbance Range: Capable of reading absorbance values from 0.0 to 4.000 Abs.
- Precise Optical Path: 8-channel vertical optical path with zero dispersion ensures accurate readings.
- Integrated Plate Shaker: Multi-speed settings allow for optimized mixing of samples.
- Temperature Control: Operates comfortably in ambient conditions from +5°C to 50°C.
Enhanced Measurement Capabilities:
The SmartReader 96 comes with four standard filters (405, 450, 492, and 630 nm), with an option for an additional twenty-six filters to fully customize your setup. The integrated filter wheel allows simultaneous loading of up to eight filters, making it simple to select appropriate filters during programming.
Advanced User Interface:
Program and operate easily via the intuitive touch screen or an external mouse. The user-friendly menu allows selection of wavelength filters, adjustment of shaking parameters, entry of plate layout details, and configuration of reading protocols and data calculations. For intricate analyses, up to two filters can be utilized for dual sample measurements, while kinetic calculations can be performed with multiple readings.
Data Management:
Data storage is hassle-free with a USB port for quick saving of files. The universal .csv format makes transferring data to a computer for further processing seamless. Additionally, a dedicated data port simplifies connections to computers or printers for enhanced data management.
Detailed Plate Layout Setup:
The plate layout interface offers a graphical representation of the 96-well configuration, allowing users to label each well according to specific needs, including:
This functionality promotes efficient labeling and management of samples.
Instant Results:
After each reading, measurement data along with interpreted results, calculated analyses, and curve fittings are readily available on-screen, enhancing your laboratory’s operational efficiency.
Specifications:
| SKU |
Accuracy |
Light Source |
Precision |
Resolution |
Speed |
| MR9600-T-E |
+1% (0-3Abs), +2% (3-4Abs) |
Quartz-halogen lamp 6V/10W |
CV<% (0-3Abs), CV< (3-4Abs) |
0.001Abs |
Slow, Medium, Fast |
| MR9600-T |
+1% (0-3Abs), +2% (3-4Abs) |
Quartz-halogen lamp 6V/10W |
CV<% (0-3Abs), CV< (3-4Abs) |
0.001Abs |
Slow, Medium, Fast |
Additional Information:
| SKU |
Country of Manufacture |
Depth |
Height |
Storage Space |
Width |
| MR9600-T-E |
China |
17 in |
8.75 in |
200 programs and 100,000 test records |
11.6 in |
| MR9600-T |
China |
17 in |
8.75 in |
200 programs and 100,000 test records |
11.6 in |
