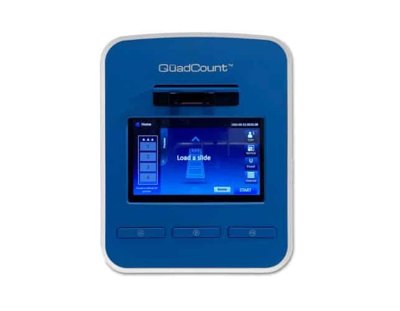

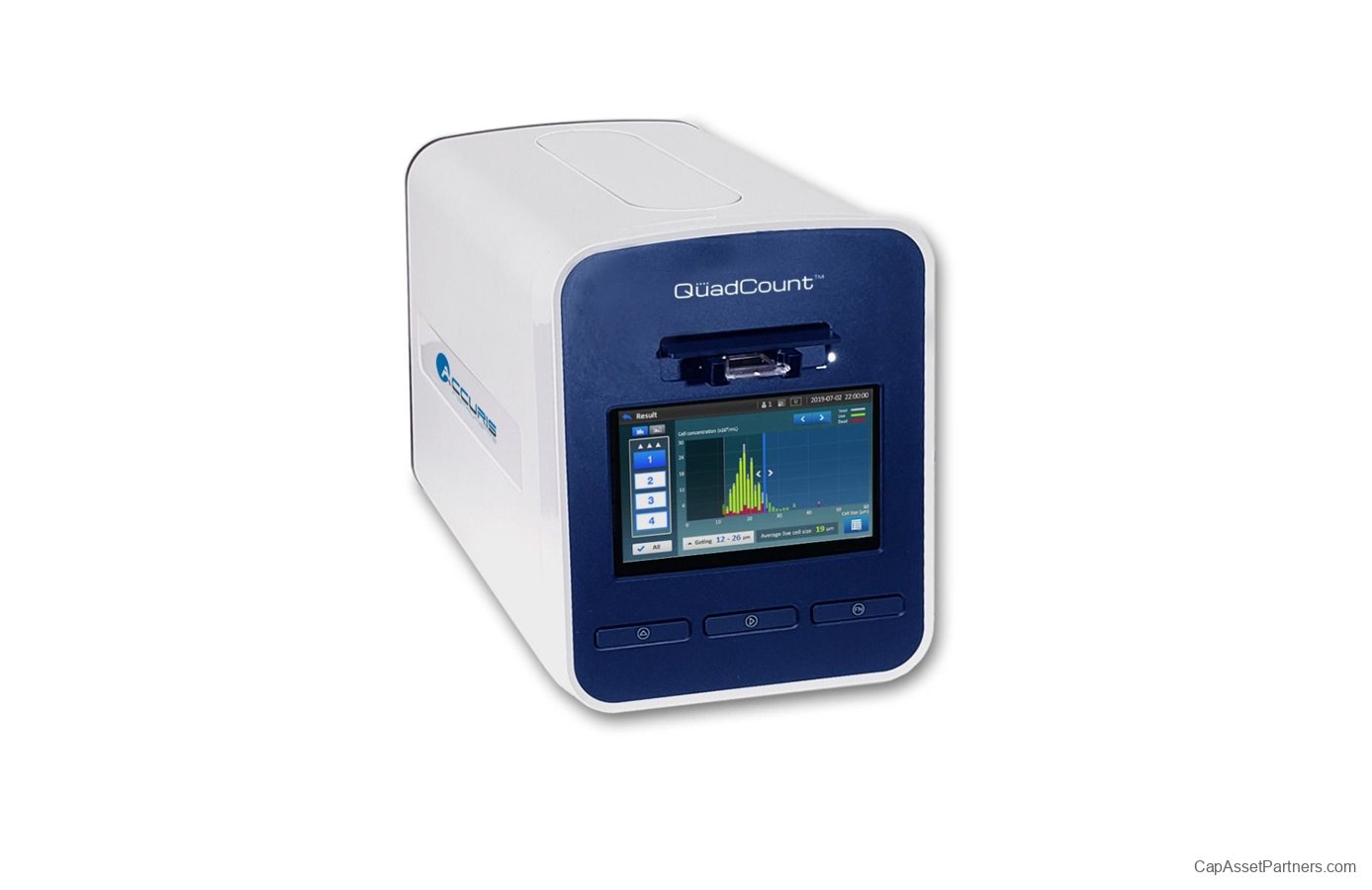

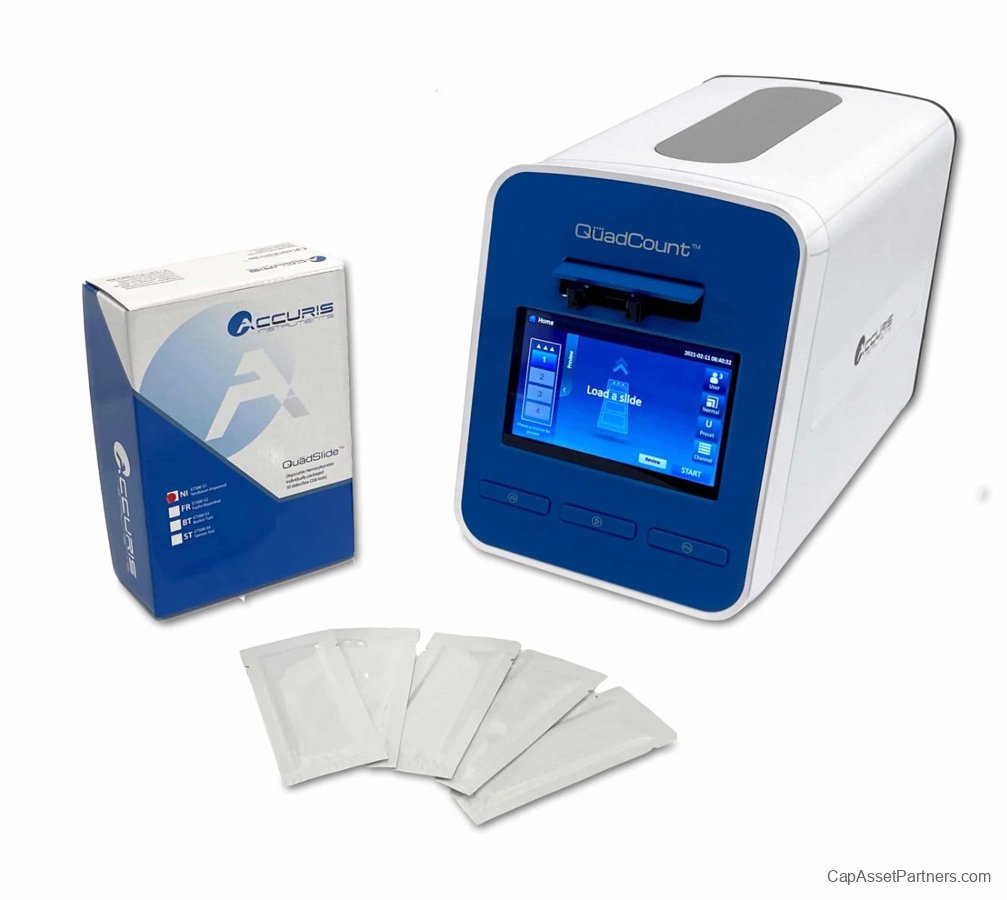

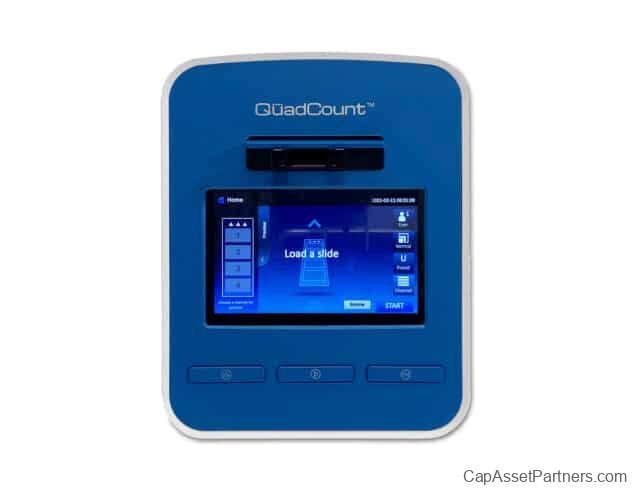

Accuris QuadCount Automated Cell Counters

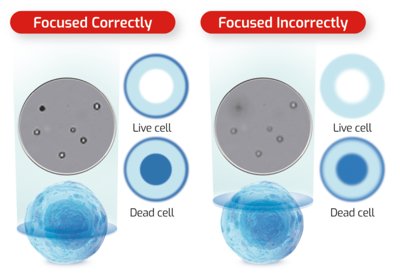

Experience a revolution in cell counting with the Accuris QuadCount Automated Cell Counters. This state-of-the-art device enhances traditional brightfield microscopy techniques by incorporating an advanced LED light source, precision optics, and a high-resolution CMOS detector. The finely tuned motorized XYZ positioning stage offers exceptional fine focusing capabilities, allowing users to capture multiple images with ease. Count speeds can reach up to 20 seconds per sample, making it a superior alternative to the time-consuming manual hemocytometry method.

Key Features

• Fast, accurate, and reproducible results for various applications.

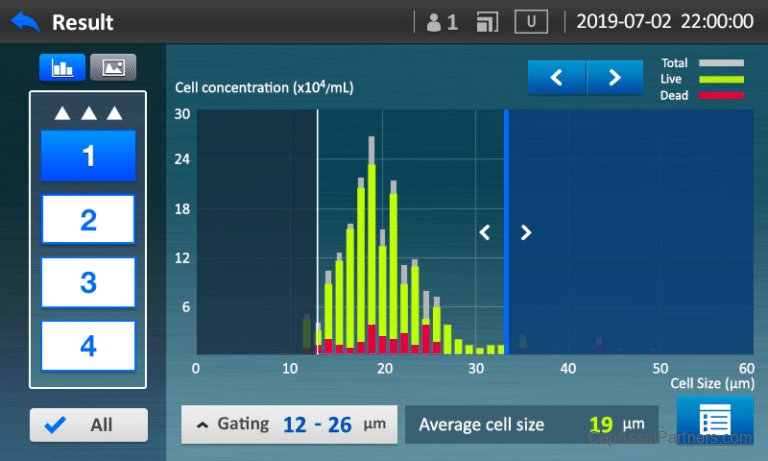

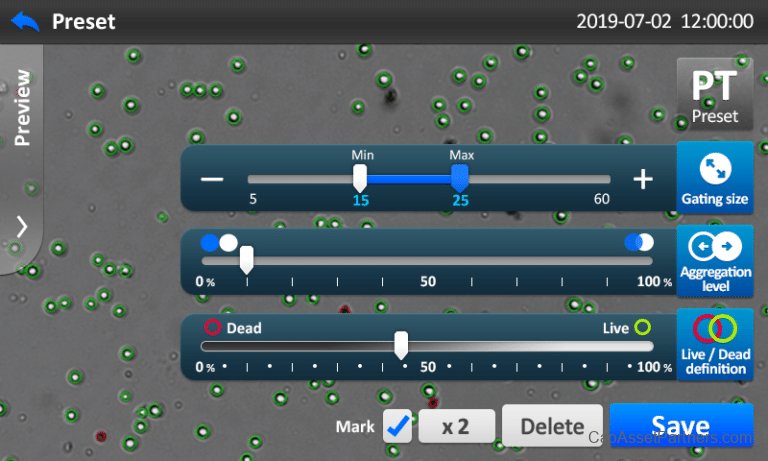

• User-friendly intuitive software accompanied by a touch-screen interface for seamless operation.
• Cost-effective QuadSlides allow processing of multiple samples efficiently.
• Capable of counting sample volumes up to 3.6 µL.

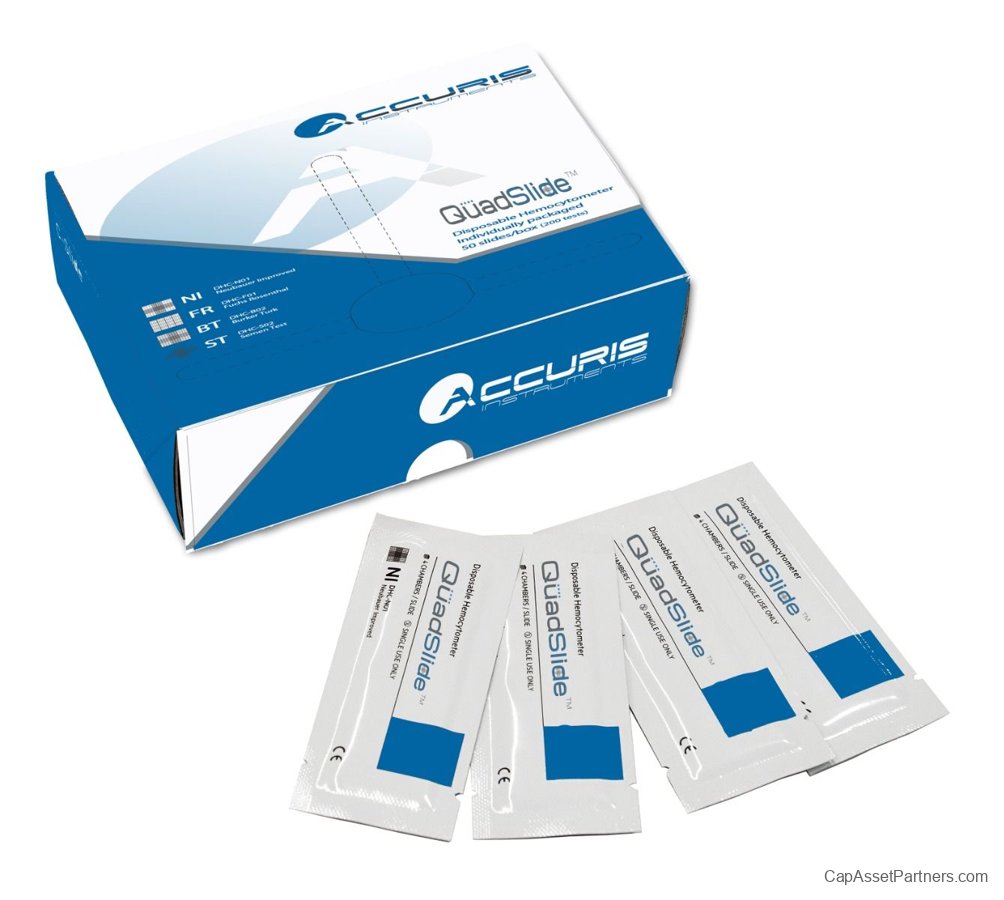

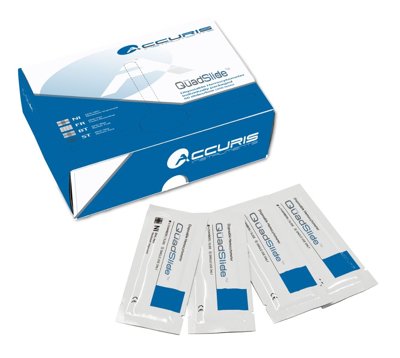

Innovative QuadSlide Design

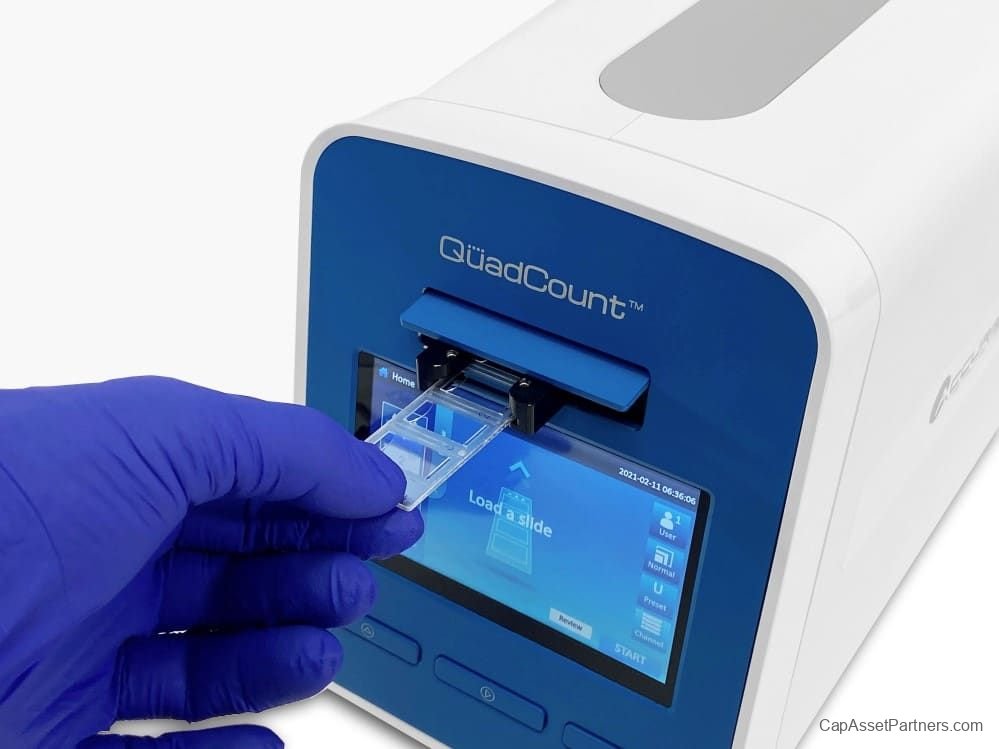

The QuadCount utilizes a unique 4-chambered disposable QuadSlide, significantly enhancing productivity. Each slide accommodates four samples, doubling the capacity of standard 2-chambered slides and minimizing consumable costs. Each chamber features a hydrophilic inner surface with an engraved grid pattern, designed to meet rigorous production standards for optimal counting performance.

Versatile Count Modes

The Accuris QuadCount offers three distinct count modes to accommodate varying sample volumes:

• Quick Mode: Processes 0.15 µL in just 20 seconds, capturing 1 image frame.
• Normal Mode: Analyzes 0.9 µL in 30 seconds, accumulating 6 image frames.
• Precise Mode: Measures 3.6 µL in 100 seconds, utilizing 24 image frames for maximum accuracy.
