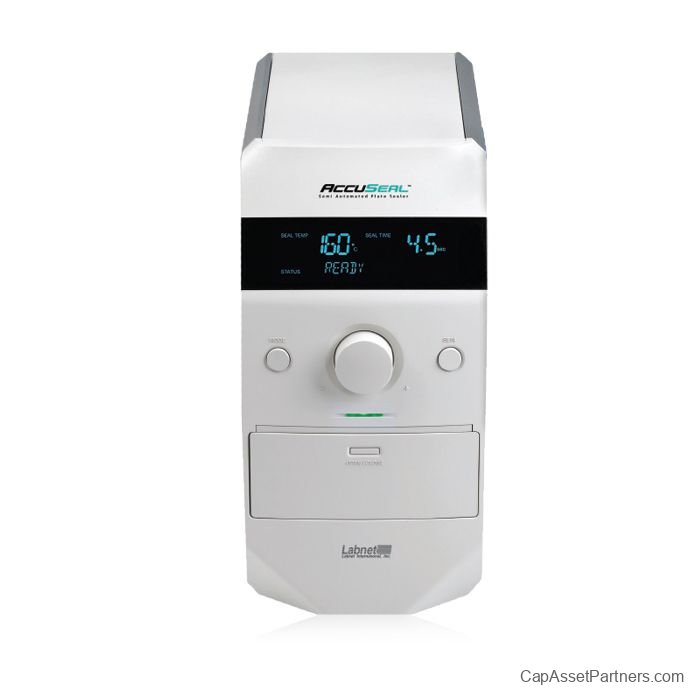

AccuSeal™ Semi Automated Plate Sealer

The AccuSeal™ Semi-Automated Plate Sealer is an essential tool for laboratories that require efficient and reliable sealing of microplates. With its innovative design, this plate sealer caters to low to medium throughput needs, ensuring uniform and consistent sealing across various applications, including PCR, assay, and sample storage. Compatible with both standard height and deep well plates, the AccuSeal™ redefines versatility in lab operations.

Key Features

• Acceptance of a wide range of microplates and heat seals
• User-friendly control system designed for ease of operation
• Large digital display showcases all essential operating parameters
• Adjustable sealing temperature range: 100°C to 190°C
• Precise control over temperature, timing, and pressure for consistent sealing results

Controls and Operation

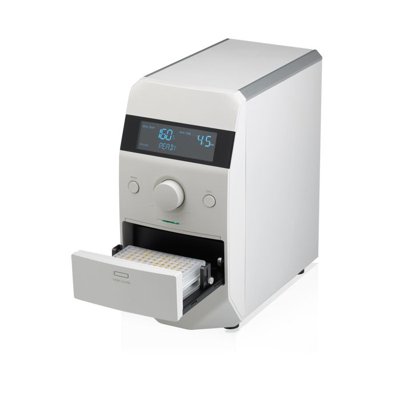

The AccuSeal™ features an intuitive control system that allows for optimal settings tailored to different types of plates and sealing materials. Users can easily switch between sealing time and sealing temperature using the MODE button and adjust settings with the convenient turn knob. Temperature is precisely adjustable in 1.0°C increments, while sealing time can be set in increments of 0.1 seconds. The sealing process is straightforward: simply place a microplate in the open drawer, lay a heat seal on top, and press the SEAL button. The motorized drawer will close automatically, ensuring a firm press for the set time, before revealing the sealed plate.

Versatility and Convenience

This semi-automated plate sealer can accommodate various plate types and heights, thanks to an aluminum adapter for PCR and standard assay plates. The motorized heated platen adjusts automatically for different plate heights, applying uniform pressure to guarantee a high-quality seal. With a special non-stick coating, maintenance is easy; an access door allows for quick cleaning when necessary.

Safety Features

Designed with user safety as a priority, the AccuSeal™ incorporates internal heating elements securely housed within the instrument casing. An internal safety door prevents access to heated areas. Additionally, the motorized drawer includes redundant safety switches; if an obstruction is detected, the drawer motor reverses to avoid injuries.

Recommended sealing temperature and time for all PP microplates is 175°C and 3 seconds. Adjustments may be necessary depending on the specific combination of film and microplates used.

Specifications

SKU	For Use With	Temperature Range
PS1000	Compatible Material: PP (Polypropylene), PS (Polystyrene), PE (Polyethylene) Compatible Plates: Standard Assay Plates, Deep-Well Plates, PCR Plates Maximum Plate Height: 45mm	OFF, 100°C to 190°C (increments of 1.0°C)

Additional Information

SKU	Temperature Uniformity	Run Time	Height	Width	Depth	Temperature Accuracy
PS1000	±1.0°C	Sealing: 0.5 to 10 sec. (increments of 0.1 sec)	14.25 in	6.75 in	12.75 in	±1.0°C
