Acuson SC2000 Ultrasound System

ACUSON SC2000 Ultrasound System
Experience exceptional imaging quality with the ACUSON SC2000 volume imaging ultrasound system—Siemens' leading cardology platform designed for advanced cardiology care. This cutting-edge system boasts an impressive 64 parallel receive beams, providing 16 times the processing capability of traditional ultrasound systems. The ACUSON SC2000's superior information rate empowers its exclusive IN Focus imaging technology to automatically focus across the entire field of view, ensuring consistent image resolution without any manual adjustments.
With the ability to process over 2.88 gigabytes of diagnostic data per second, this system revolutionizes cardiac imaging, allowing for the visualization of red blood cells in grayscale as they flow through the heart. This groundbreaking clarity is crucial for delivering the most thorough and precise diagnoses. The ACUSON SC2000 seamlessly integrates volume imaging with 2D exams, enhancing patient care across a range of applications, including adult and pediatric cases and procedures in echo, vascular, operating room, and interventional cardiology.
Applications:

• Cardiac

• Vascular

Key Standard Features:

• B, M, PW, CW, Color Doppler imaging

• Harmonic Imaging for enhanced clarity

• 17” Flat Panel LCD Display for improved visibility

• Doppler Tissue Imaging (DTI) for detailed motion assessment

• SieClear Multi-View spatial compounding for comprehensive imaging

• Advanced SieClear Compounding (Spatial Compounding) technology

• 2D Beam Steering for optimal image alignment

• Clarify VE (SRI) for superior contrast resolution

Transform your cardiology practice with the unmatched capabilities of the ACUSON SC2000 Ultrasound System, setting new benchmarks in diagnostic imaging and patient management.

Acuson SC2000 Ultrasound System Specifications:

• Dimensions:

• Height: 55.5 inches (141 cm)

• Width: 37.5 inches (95 cm)

• Depth: 30 inches (76 cm)

• Weight:

• Approx. 400 lbs (181 kg)

• Display:

• Screen Size: 19 inches (48 cm)

• Resolution: 1280 x 1024 pixels

• Frequency Ranges:

• Linear Array Transducer: 5-10 MHz (high frequency)

• Curved Array Transducer: 1.5-5 MHz (low frequency)

• Power Supply:

• Input Voltage: 100-240 VAC

• Frequency: 50/60 Hz

• Imaging Modes:

• 2D, M-Mode, Doppler (Color and Spectral), 3D/4D imaging

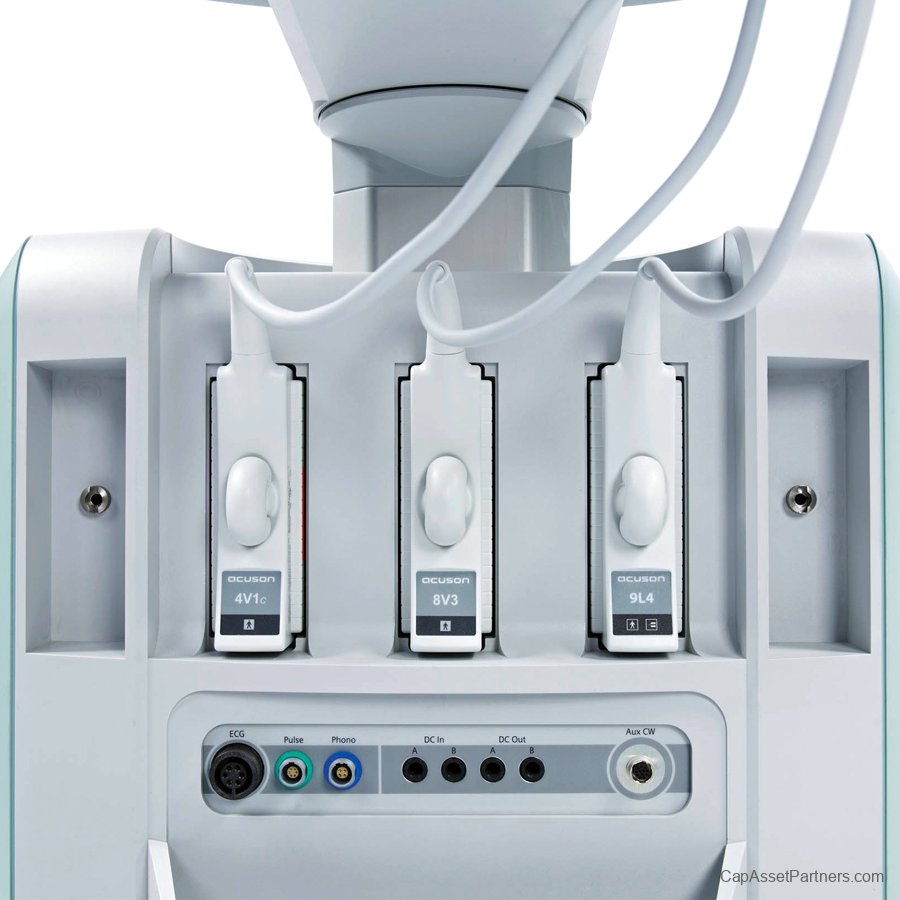

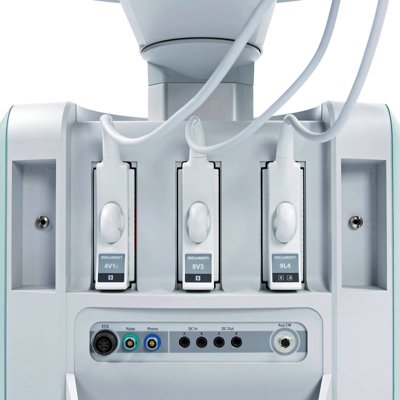

• Transducer Ports:

• Up to 4 simultaneous transducer connections

• Storage Capacity:

• Internal Storage: Up to 160 GB

• USB Ports for external storage

• Operating System:

• Windows-based interface

• Battery Life:

• Rechargeable battery: Approx. 1.5 hours of continuous use

• Networking:

• DICOM compatibility for image transfer and storage

• Ethernet and Wi-Fi connectivity

• Clinical Applications:

• Cardiac, OB/GYN, Vascular, Abdominal, Musculoskeletal

• Software Features:

• Auto IMT (intima-media thickness) measurements

• Advanced image processing algorithms for enhanced image quality

• Additional Options:

• Optional wireless imaging capabilities

• Customizable user interface settings

Note: Specifications may vary based on configuration and specific model updates.
