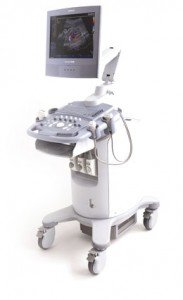

Acuson X150 Ultrasound System

ACUSON X150 Ultrasound System Overview
The ACUSON X150™ ultrasound system combines exceptional diagnostic performance with user-friendly ergonomics and impressive scalability, making it a top choice for medical professionals seeking value without compromising on quality. Its compact and ultra-portable design allows for easy transportation, ensuring adaptability to various clinical environments and the ability to meet evolving medical needs.
Applications
The ACUSON X150 is versatile and suitable for a range of applications, including:

• Vascular Imaging

• Abdominal Scanning

• OB/GYN Assessments

• Urology Evaluations

Key Standard Features
This state-of-the-art ultrasound system includes a multitude of essential features, such as:

• B, M, PW, and 2D Gray Scale imaging capabilities

• Tissue Grayscale Optimization (TGO) for enhanced image quality

• A 15-inch Flat Panel LCD Display for clear visualization

• Doppler Tissue Imaging (DTI) for effective blood flow analysis

• Synthetic Aperture Technology for improved image resolution

• Phase Inversion Tissue Harmonic Imaging (THI) for superior imaging depth

Optional Features
Enhance your diagnostic capabilities with a variety of optional features, including:

• Color Doppler for vivid color imaging

• DICOM 3.0 Networking for seamless integration with healthcare systems

• 3-Scape Imaging (3D/4D) for advanced visualization

• SieScape (Panoramic) imaging for a broader field of view

• Clarify VE (SRI) for enhanced image clarity in challenging situations

• Filtered Tissue Harmonic Imaging for optimized image detail

• SieClear Compounding (Spatial Compounding) for better image quality at depth

The ACUSON X150 ultrasound system is an invaluable asset for any medical facility, delivering impressive performance and flexibility to meet the diverse challenges of modern diagnostics.

Acuson X150 Ultrasound System Specifications:

• Display: 15-inch LCD monitor

• Frequency Range: 1.5 - 15 MHz

• Imaging Modes: B-mode, Color Doppler, Pulsed Wave Doppler

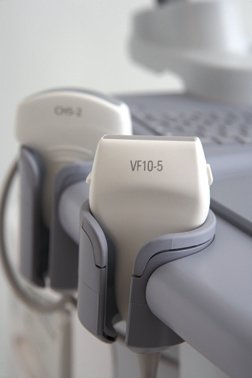

• Transducers:

• Convex array: 2 - 5 MHz (metric: 2 - 5 MHz)

• Linear array: 6 - 15 MHz (metric: 6 - 15 MHz)

• Endocavitary: 5 - 7.5 MHz (metric: 5 - 7.5 MHz)

• Depth of Field: Up to 30 cm (metric: up to 30 cm)

• Dynamic Range: 70 - 90 dB

• Storage Capacity: Up to 64 GB (metric: up to 64 GB)

• Image Processing Technology: Advanced imaging algorithms for enhanced resolution

• Weight: Approximately 126 lbs (57 kg)

• Dimensions: 48 x 24 x 40 in (metric: 121.9 x 61 x 101.6 cm)

• Power Supply: 100-240 V AC, 50-60 Hz

• Battery Life: 2 hours (typical operation)

Note: Specifications may vary by configuration and optional features.
