| Maximum Temperature |
200°C |
| Temperature Stability |
±0.01°C |
| Swivel 180™ Rotating Controller |
Yes |
| Pump |
Variable-Speed |
| Max. Pressure Flow Rate @ 60 Hz |
20.1 LPM |
| Max. Suction Flow Rate @ 60 Hz |
14.7 LPM |
| Closed-Loop Operation |
Yes |
| Open-Loop Operation |
Yes |
| Fluid Optimization / Specific Heat Tuning |
Yes |
| Temperature Calibration Capability |
1-point |
| External Temperature Control Capability (Pt100) |
Yes |
| WhisperCool™ Environment Control System |
Yes |
| Inert Gas Reservoir Purge |
Yes |

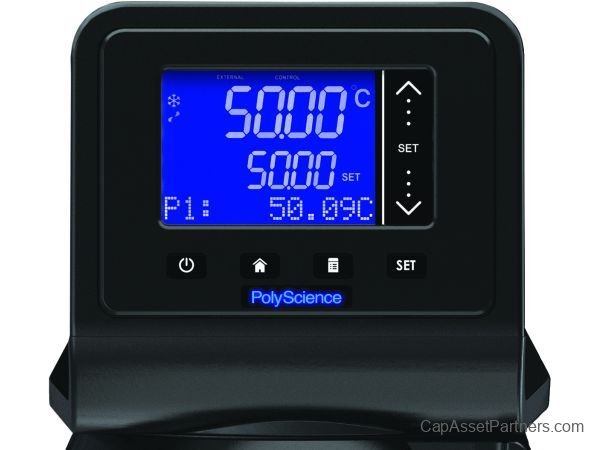

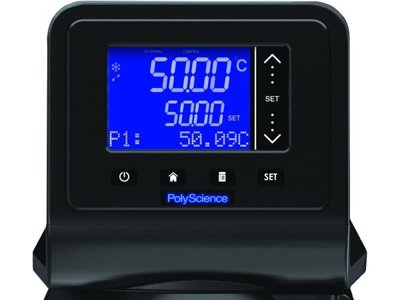

| Display Type & Size |
LCD Display with Touchpad Control (3.75 inches / 9.5 cm) |
| Enhanced Data Display Capability |
Message Bar |
| Multi-Language Menus or Prompts |
4 languages |
| Displays Temperature Trend |
No |
| Time/Temperature Programs & Steps |
No |
| Date & Time with Calendar Start/Stop |
No |
| Timer |
Yes |
| On-Screen Help or Prompts |
Yes |
| RS232/RS485 Serial Output |
Yes |
| USB A and USB B |
Yes |
| Ethernet |
Yes |
| DeviceNet™/Canbus, Modbus®, Profibus® (optional) |
No |
| Software Support for LabView™ Included |
No |
| Remote On/Off Capability |
No |
| Safety Class (DIN 12876-1) |
III |
| Over-Temperature Protection |
Yes |
| Failsafe Heater Control |
Yes |
| High and Low Temperature Limits/Alarms |
Yes |
| Low-Liquid-Level Safety |
Yes |
| Alarm and Fault Indicators |
Message |
