The AFE Series Digital Forced Air Lab Ovens are engineered for precision and performance, perfect for laboratories that require reliable and uniform heat distribution. Designed with high-quality UL and CSA-recognized components, these ovens utilize forced-air circulation to ensure optimal dehydration and evaporation processes across a wide temperature range.
Key Features:
- Advanced Digital Microprocessor Control for precise temperature setting

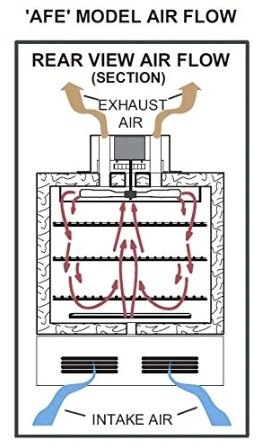

- Efficient Air Forced Gravity Convection for even heat distribution
- Durable Double-Wall Construction minimizes heat loss and enhances safety
- Scratch-resistant Hammer Finish provides durability and a professional look
- Corrosion-resistant Aluminized Interior ensures longevity and ease of cleaning
- Backed by a Full 18-month Factory Warranty
- Proven Reliability with years of successful use in various applications
Advanced Design:
The AFE ovens feature a visually appealing and robust exterior with a light gray hue and a hard, scratch-resistant finish. Each unit is equipped with heavy steel double-wall construction and high-impact thermoplastic handles for easy access. Insulated with one inch of high-density mineral wool, the workspace remains efficient while the interiors are crafted from corrosion-resistant aluminized steel for added durability.
Innovative Controls:
The digital control system combines the advantages of analog devices with user-friendly features, maintaining temperature stability within +/- 0.5°C (1°F) despite varying environmental conditions. The large LED display provides continuous visibility of both set and process temperatures, with a setting lock mode that safeguards against unintentional adjustments.
Heating Elements:
Engineered for efficiency, the low-watt density, incoloy sheathed heating elements are designed for swift temperature rise and recovery. An integrated perforated heat shield absorbs and redistributes radiant heat, ensuring uniformity throughout the chamber for numerous applications.
Specifications:
| SKU |
Controller |
Material |
Max Temperature |
Temperature Range |
Dimensions |
Shelf Capacity |
Internal Dimensions |
Max. # of Shelves |
| 10AFE |
Digital PID Microprocessor Control |
Aluminum, Solid Steel |
450°F (232°C) |
Ambient +25°F to 450°F |
14 in x 20.5 in x 12.3 in |
35 lbs |
12 in x 8.25 in x 10 in |
8 |
| 20AFE |
Digital PID Microprocessor Control |
Aluminum, Solid Steel |
450°F (232°C) |
Ambient +25°F to 450°F |
15 in x 25 in x 15.3 in |
35 lbs |
13 in x 11 in x 13 in |
11 |
| 30AFE |
Digital PID Microprocessor Control |
Aluminum, Solid Steel |
450°F (232°C) |
Ambient +25°F to 450°F |
20 in x 29 in x 14.3 in |
35 lbs |
18 in x 14.2 in x 12 in |
14 |
| 40AFE |
Digital PID Microprocessor Control |
Aluminum, Solid Steel |
450°F (232°C) |
Ambient +25°F to 450°F |
20 in x 35 in x 16.3 in |
35 lbs |
18 in x 19.8 in x 14 in |
20 |
Additional Information:
| SKU |
Model # |
Electrical Information |
Plug Type |
Temperature Stability |
Time to Reach Temperature |
Door Recovery Time |
Warranty |
| 10AFE |
10AFE |
115V, 6.6A, 800W |
5-15P |
± 1.0°F (± 0.5°C) |
Ambient to Max: 43 min. |
@300°F (Door Open 15 Sec.) 10 min.
@300°F (Door Open 30 Sec.) 14 min. |
18 Months |
| 20AFE |
20AFE |
115V, 8.8A, 1050W |
5-15P |
± 1.0°F (± 0.5°C) |
Ambient to Max: 44 min. |
@300°F (Door Open 15 Sec.) 10 min.
@300°F (Door Open 30 Sec.) 1 min. |
18 Months |
| 30AFE |
30AFE |
115V, 12.5A, 1500W |
5-15P |
± 1.0°F (± 0.5°C) |
Ambient to Max: 38 min. |
@300°F (Door Open 15 Sec.) 11 min.
@300°F (Door Open 30 Sec.) 12 min. |
18 Months |
| 40AFE |
40AFE |
115V, 12.5A, 1500W |
5-15P |
± 1.0°F (± 0.5°C) |
Ambient to Max: 48 min. |
@300°F (Door Open 15 Sec.) 13 min.
@300°F (Door Open 30 Sec.) 14 min. |
18 Months |
