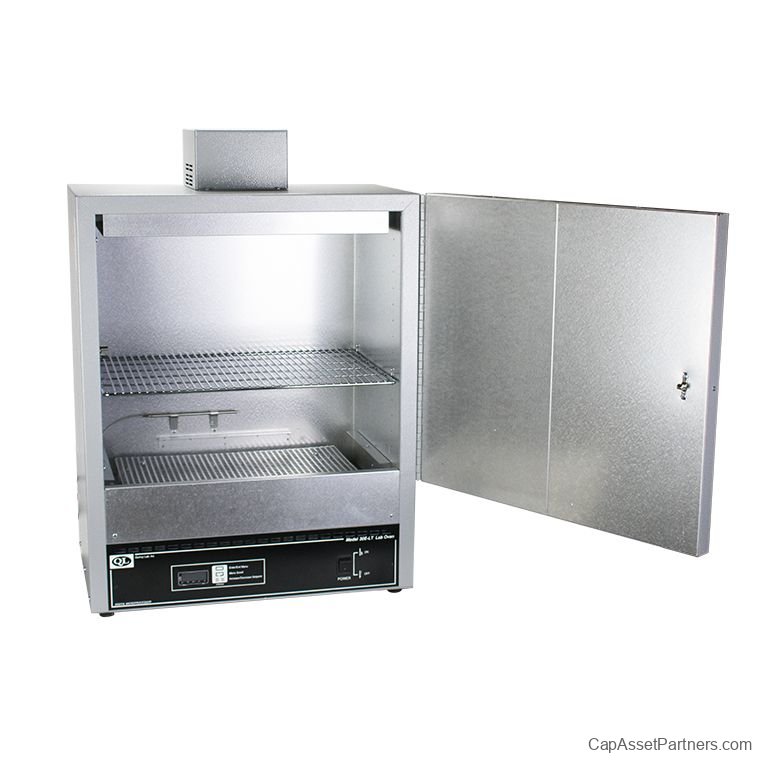

AFE Series Low Temperature Digital Forced Air Mechanical Ovens
Experience precision and reliability with the AFE Series Low Temperature Digital Forced Air Mechanical Ovens. Engineered for optimal performance, these ovens utilize forced air circulation to ensure a uniform heat distribution throughout the chamber, making them particularly effective for dehydration and evaporation processes.
Key Features:
- Advanced Digital Microprocessor Control for precise temperature settings.
- Efficient Air Forced Convection system promotes uniform heating.
- Constructed with durable double-wall design for enhanced insulation.
- Scratch-resistant hammer finish exterior adds longevity and style.
- Corrosion-resistant aluminized steel interior for extended durability.
- Supported by a full 18-month factory warranty, assuring reliability.
Advanced Design:
The cabinets boast a visually appealing light gray finish, complemented by a robust scratch-resistant surface. Featuring high-impact thermoplastic handles, these cabinets are equipped with heavy steel double-wall construction. They safely insulate the workspace from the outer cabinet using an inch of high-density mineral wool, and the interiors are crafted from corrosion-resistant aluminized steel.
Precision Controls:
The digital control system enhances usability by combining the advantages of analog models with the ease of temperature adjustments. It employs a full PID microprocessor to maintain the set temperature within ±1.0°C, ensuring stability even under varying conditions. A temperature-tracking feature monitors deviation from the set point, signaling any control issues during operation. The large LED displays keep process temperatures visible, while a setting lock mode prevents accidental adjustments.
Heating Elements:
Designed for energy efficiency, the low-watt density Incoloy sheathed elements deliver quick heating and recovery times. Enhanced temperature uniformity is achieved through a perforated heat shield that evenly disperses radiant heat.
Specifications:
| SKU |
Controller |
Material |
Max Temperature |
Temperature Range |
Dimensions |
Shelf Capacity |
Internal Dimensions |
Max. # of Shelves |
| 10AFE-LT |
Digital PID Microprocessor Control |
Aluminum, Solid Steel |
225°F (107°C) |
Ambient +15°F to 225°F |
14 in x 20.5 in x 12.3 in |
35 lbs |
12 in x 8.25 in x 10 in |
8 |
| 20AFE-LT |
Digital PID Microprocessor Control |
Aluminum, Solid Steel |
225°F (107°C) |
Ambient +15°F to 225°F |
15 in x 25 in x 15.3 in |
35 lbs |
13 in x 11 in x 13 in |
11 |
| 30AFE-LT |
Digital PID Microprocessor Control |
Aluminum, Solid Steel |
225°F (107°C) |
Ambient +15°F to 225°F |
20 in x 29 in x 14.3 in |
35 lbs |
18 in x 14.2 in x 12 in |
14 |
| 40AFE-LT |
Digital PID Microprocessor Control |
Aluminum, Solid Steel |
225°F (107°C) |
Ambient +15°F to 225°F |
20 in x 35 in x 16.3 in |
35 lbs |
18 in x 19.8 in x 14 in |
20 |
Additional Information:
| SKU |
Model # |
Electrical Information |
Plug Type |
Temperature Stability |
Time to Reach Temperature |
Door Recovery Time |
Warranty |
| 10AFE-LT |
10AFE-LT |
115V, 3.65A, 330W |
5-15P |
±0.8°C |
Ambient to Max: 36 min. |
@200°F (Door Open 15 Sec.) 3 min.
@200°F (Door Open 30 Sec.) 4 min. |
18 Months |
| 20AFE-LT |
20AFE-LT |
115V, 3.65A, 440W |
5-15P |
±0.8°C |
Ambient to Max: 40 min. |
@200°F (Door Open 15 Sec.) 8 min.
@200°F (Door Open 30 Sec.) 12 min. |
18 Months |
| 30AFE-LT |
30AFE-LT |
115V, 4.8A, 800W |
5-15P |
±1.0°F (±0.5°C) |
Ambient to Max: 27 min. |
@200°F (Door Open 15 Sec.) 4 min.
@200°F (Door Open 30 Sec.) 6 min. |
18 Months |
| 40AFE-LT |
40AFE-LT |
115V, 6.8A, 800W |
5-15P |
±1.0°F (±0.5°C) |
Ambient to Max: 40 min. |
@200°F (Door Open 15 Sec.) 7 min.
@200°F (Door Open 30 Sec.) 9 min. |
18 Months |
*Accessory options are custom-built into your unit, which may lead to a 3-4 week delivery time. Non-custom items such as shelves and shelf supports will be shipped separately.
