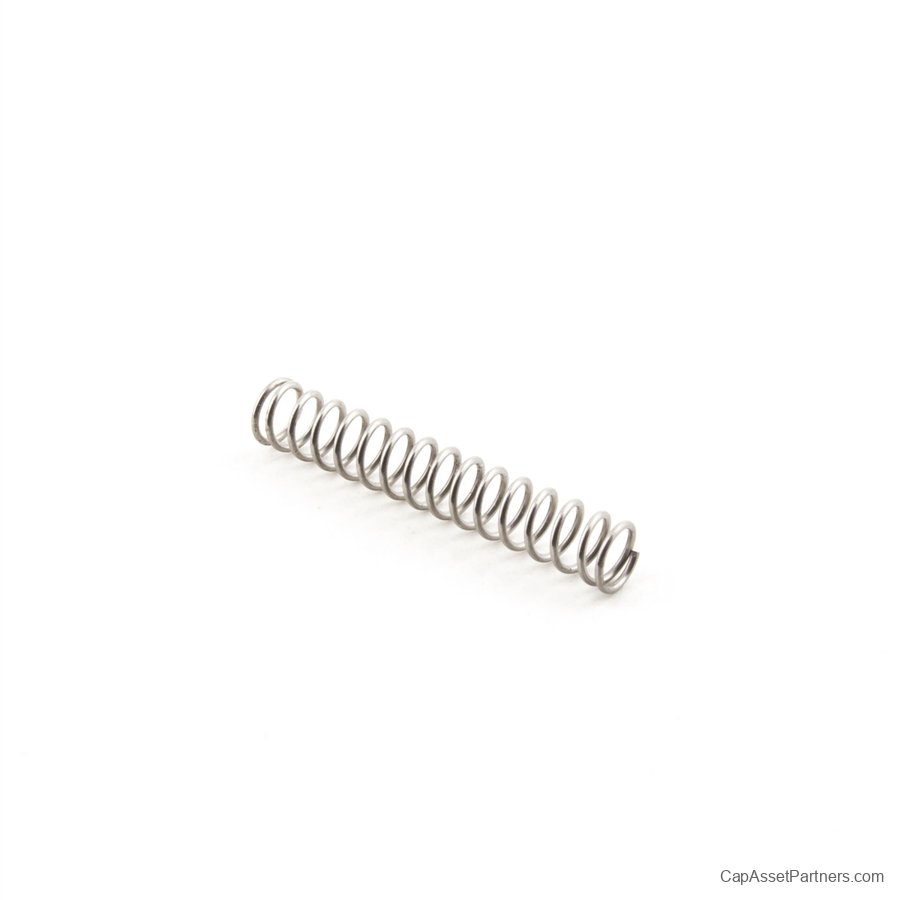

Alaris 8000 8015 8100 8300 Compression Spring

Product Description: Alaris 8000, 8015, 8100, 8300 Compression Spring
Discover the essential Alaris 8000, 8015, 8100, and 8300 Compression Spring, a critical component designed to enhance the functionality of your medical equipment. This compression spring is meticulously tested, cleaned, and refurbished by skilled biomedical technicians, ensuring it meets the highest manufacturer standards for performance and reliability.
Compatibility:
This compression spring is compatible with the following units:

• Alaris 8000 Point of Care Units

• Alaris 8015 Point of Care Units

• Alaris 8100 Infusion Pump Modules

• Alaris 8300 Microstream etCO2 Modules

OEM Part Numbers:
This compression spring is a component of assembly 147080-100, making it an integral part of your medical device's operation.
Ensure your Alaris equipment operates seamlessly with our high-quality compression spring, designed for optimal performance in clinical settings.

Alaris 8000 Series Compression Spring Specifications

• Model Numbers: 8015, 8100, 8300

Specifications:

• Material: Stainless Steel

• Outer Diameter (OD):

• 8015: 0.630 in (16.00 mm)

• 8100: 0.750 in (19.05 mm)

• 8300: 0.875 in (22.23 mm)

• Inner Diameter (ID):

• 8015: 0.310 in (7.87 mm)

• 8100: 0.500 in (12.70 mm)

• 8300: 0.625 in (15.88 mm)

• Free Length:

• 8015: 1.500 in (38.10 mm)

• 8100: 1.700 in (43.18 mm)

• 8300: 2.000 in (50.80 mm)

• Wire Diameter:

• 8015: 0.060 in (1.52 mm)

• 8100: 0.080 in (2.03 mm)

• 8300: 0.090 in (2.29 mm)

• Spring Rate:

• 8015: 10.0 lbs/in (1.75 N/mm)

• 8100: 15.0 lbs/in (2.63 N/mm)

• 8300: 20.0 lbs/in (3.51 N/mm)

• Deflection at Load (Load/Deflection):

• 8015: 0.125 in (3.18 mm) at 5 lbs (22.24 N)

• 8100: 0.150 in (3.81 mm) at 10 lbs (44.48 N)

• 8300: 0.200 in (5.08 mm) at 15 lbs (66.74 N)

• Coil Configuration: Round Wire, Closed and Ground Ends

• Finish: Natural or Coated option available

• Operating Temperature Range: -40°F to 300°F (-40°C to 149°C)

Note: Always verify compatibility with application requirements and consult manufacturer data for specifics before use.
