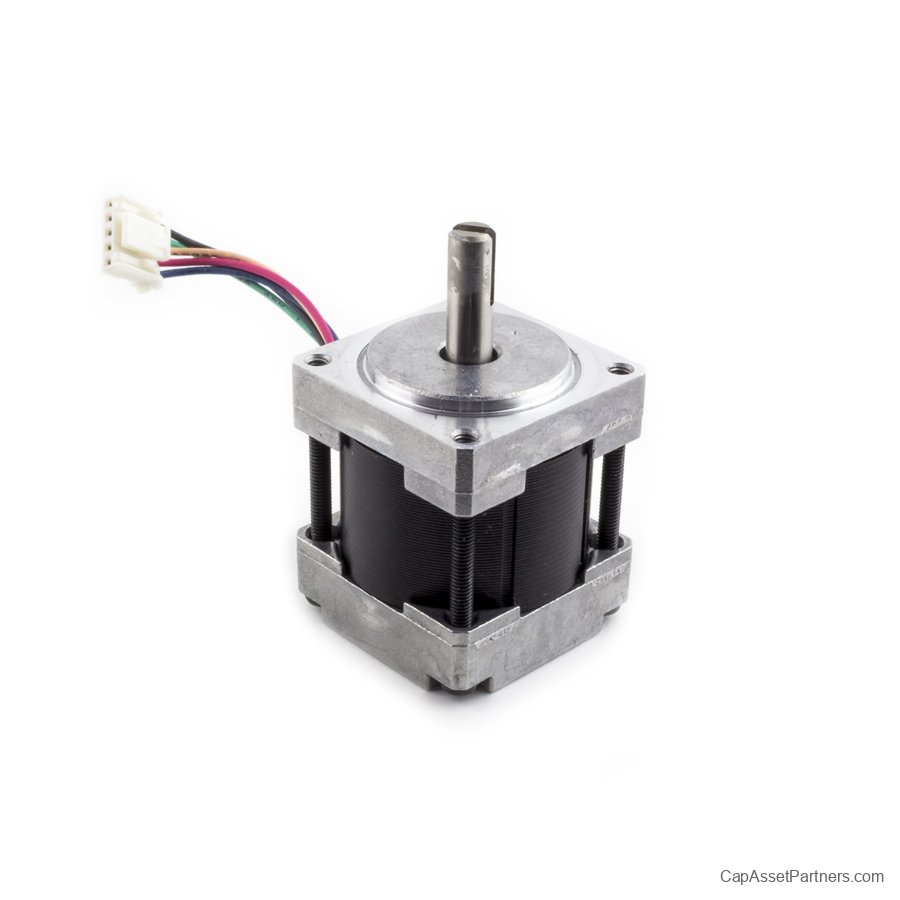

Alaris 8100 Infusion Pump Module Motor Assembly

Introducing the Alaris 8100 Infusion Pump Module Motor Assembly, expertly tested and cleaned to meet manufacturer specifications. This high-quality motor assembly is designed specifically for the Alaris 8100 Infusion Pump Module, ensuring optimal performance and reliability in your medical facility.
Designed for seamless compatibility, the motor assembly features the OEM part number 146465-001, making it a perfect fit for your existing equipment. Trust in the quality of this essential component to help maintain the efficacy of your infusion delivery systems.
Enhance the efficiency of your medical operations with the Alaris 8100 Infusion Pump Module Motor Assembly – a critical part for ensuring precise medication administration.

Alaris 8100 Infusion Pump Module Motor Assembly Specifications:

• Motor Type: DC Motor

• Voltage: 24 VDC (± 10%)

• Current Rating: 1.5 A (max)

• Speed: 100 RPM (± 10%)

• Torque: 0.40 Nm (3.54 in-lbs)

• Dimensions:

• Length: 8.1 cm (3.2 in)

• Width: 5.3 cm (2.1 in)

• Height: 6.6 cm (2.6 in)

• Weight: 0.45 kg (1.0 lb)

• Operating Temperature Range: 0°C to 40°C (32°F to 104°F)

• Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)

• Humidity Range: 10% to 95% RH (non-condensing)

• Connection Type: Electrical Connector - Molex

• Compliance: ISO 13485, IEC 60601-1

Please verify with the manufacturer for the most accurate and current specifications as variations may exist.
