Alaris PCA Module

Do you have a Alaris PCA Module you want to sell?

We buy used equipment! Learn about selling

Manufactured by: Alaris

Category: Infusion Pumps

Alaris Alaris PCA Module

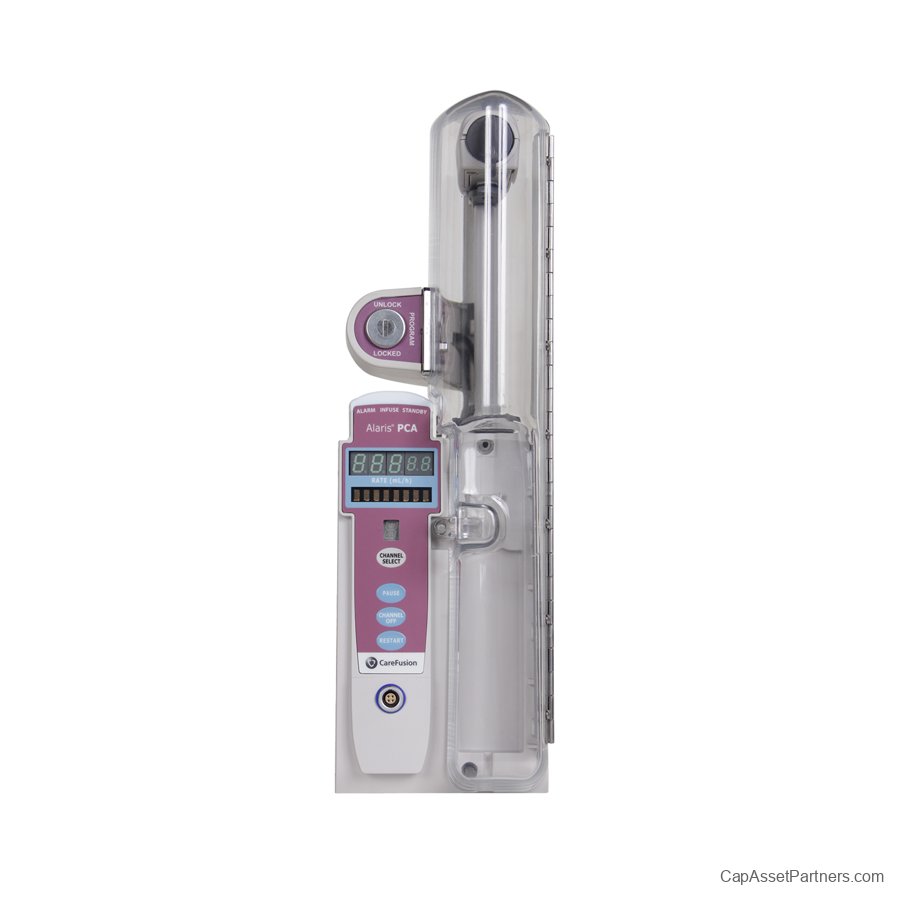

Alaris PCA Module: Advanced Patient-Controlled Analgesia Solution
The Alaris PCA Module is a cutting-edge device designed to enhance patient care through its seamless integration with the Alaris Pump Module, Syringe Module, EtCO2, and SpO2 Modules. This innovative solution promotes infusion efficiency and prioritizes safety, making it an essential tool for healthcare providers committed to delivering the highest standard of patient care.
One of the key features of the Alaris PCA Module is its PCA infusion pause protocol, which activates if a patient’s respiration drops below customizable EtCO2 or SpO2 limits. This critical capability helps mitigate the risks associated with opioid administration, ensuring timely intervention when necessary. In addition, the module can be equipped with Guardrails MX error reduction software, further enhancing safety during medication delivery.
Key Features of the Alaris PCA Module:
  • Seamless integration of the PCA device with other components of the Alaris system
  • Adherence to industry guidelines for continuous monitoring of EtCO2 and SpO2
  • Enhanced safety and efficiency in infusion practices
  • PCA pause protocol designed to prevent respiratory complications
  • Availability of Guardrails MX software for additional safety

Elevate your clinical practice with the Alaris PCA Module, a sophisticated tool that empowers healthcare professionals to provide safe and effective pain management for their patients.

Alaris PCA Module Specifications


  • Dimensions:
  • Height: 10.0 in (25.4 cm)
  • Width: 12.5 in (31.8 cm)
  • Depth: 3.5 in (8.9 cm)

  • Weight:
  • Approx. 3.0 lbs (1.36 kg)

  • Power Supply:
  • Input Voltage: 100-240 VAC
  • Frequency: 50/60 Hz

  • Battery:
  • Type: Rechargeable Lithium-ion
  • Runtime: Up to 8 hours (depending on usage)

  • Flow Rate:
  • Accuracy: ± 5% of set rate
  • Range: 0.1 to 999.9 mL/hr

  • Infusion Modes:
  • Continuous infusion
  • Intermittent infusion
  • PCA (Patient-Controlled Analgesia)

  • Display:
  • Type: LCD
  • Size: 3.5 in (8.9 cm) diagonal

  • Data Connection:
  • USB port
  • Ethernet compatible

  • Alarm Functionality:
  • Visual and audible alarms
  • Multiple alarm types for various conditions

  • Programming:
  • Via keypad and display interface

  • IV Set Compatibility:
  • Compatible with standard IV sets (specific brands/models as per manufacturer)

  • Safety Features:
  • Drug library integration
  • Air detector
  • occlusion detection

  • Temperature Operating Range:
  • 32°F to 104°F (0°C to 40°C)

  • Humidity Operating Range:
  • 10% to 95% non-condensing

  • Regulatory Compliance:
  • CE Marked
  • FDA cleared

  • User Manual:
  • Available in multiple languages

  • Maintenance:
  • Routine cleaning and inspection guidelines provided

Additional Information

  • Manufacturer: Alaris Medical Systems (part of BD)
  • Model Number: Specific model numbers may vary by region.

Please verify all specifications with the official manufacturer's documentation as they may vary by model and revision.
