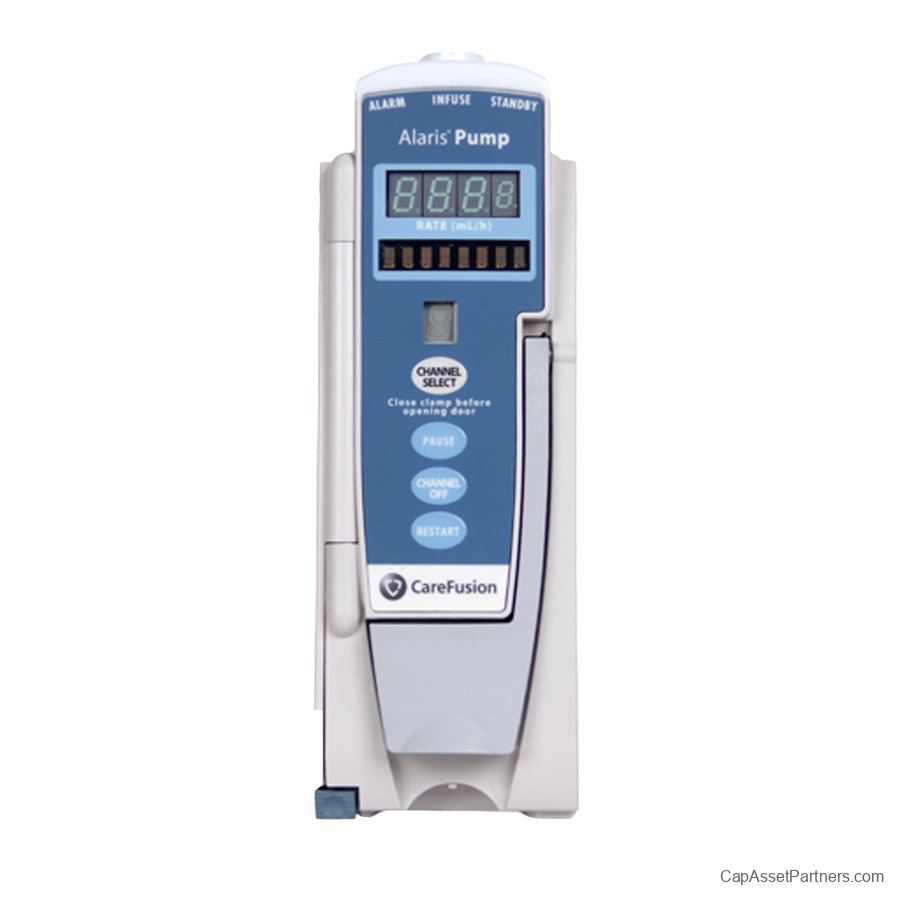

Alaris Pump Module

Alaris Pump Module Product Description
The Alaris Pump Module is an advanced infusion pump designed to meet the needs of healthcare facilities, providing safe and efficient infusion solutions for adult, pediatric, and neonatal patients. This versatile device allows for the continuous or intermittent delivery of fluids, medications, blood, and blood products, making it an essential addition to any clinical setting.
Designed for flexibility, the Alaris Pump Module supports up to four IV infusion modules, enabling multiple independent infusions on a single PC unit. This feature enhances workflow efficiency and patient care by allowing simultaneous administration of various therapies.
To further enhance patient safety, this infusion pump is compatible with the Guardrails Suite MX Software, a valuable tool in reducing the risk of medication errors. The IV pump module not only supports primary and secondary delivery but also features an intuitive LCD screen that displays critical information such as IV drug or fluid names, doses, and administration rates. The display colors provide a quick reference to channel status, ensuring that healthcare providers can monitor infusion processes effectively.
Key Features:

• Suitable for adult, pediatric, and neonatal patients

• Offers continuous or intermittent delivery options

• Accepts up to 4 IV infusion modules for multi-infusion capabilities

• User-friendly LCD screen for monitoring IV drug or fluid information

• Color-coded display indicating channel status

• Compatible with Guardrails Suite MX software for enhanced safety

• Supports both primary and secondary delivery functions

Discover the reliability and performance of the Alaris Pump Module — an invaluable tool for modern healthcare delivery.

Alaris Pump Module Specifications (Old)

• Dimensions:

• Height: 15.5 inches (39.4 cm)

• Width: 6.7 inches (17.0 cm)

• Depth: 8.2 inches (20.8 cm)

• Weight:

• 4.2 lbs (1.9 kg)

• Input Power:

• Voltage: 100-240 VAC

• Frequency: 50/60 Hz

• Flow Rate Range:

• 0.1 to 1200 mL/hr (0.03 to 32 oz/hr)

• Accuracy:

• ±5% of programmed flow rate

• Occlusion Sensing:

• Low, Medium, High occlusion detection

• Infusion Modes:

• Continuous

• Intermittent

• PCA (Patient-Controlled Analgesia)

• Battery Life:

• Rechargeable battery duration: Up to 8 hours on a full charge

• Data Logging:

• Event history storage for up to 255 events

• Communication Ports:

• Compatible with Alaris System for data integration

• User Interface:

• Large LCD display

• Touchscreen controls

• Pump Types Supported:

• Volumetric infusions

• Gravity infusions

• Compatibility:

• Compatible with various IV sets and accessories

• Safety Features:

• Drug libraries with customizable limits

• Visual and audible alarms for system errors

• Environment:

• Operating Temperature: 50°F to 104°F (10°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Humidity: 10% to 95% non-condensing

These specifications summarize the critical parameters of the old Alaris Pump Module. Please check with the manufacturer for any updates or specific configurations.
