AlumaSeal®

Do you have a AlumaSeal® you want to sell?

We buy used equipment! Learn about selling

Manufactured by: Excel Scientific

Category: Plasticware

Excel Scientific AlumaSeal®
Excel Scientific AlumaSeal®
Excel Scientific None - Plasticware
Excel Scientific None - Plasticware

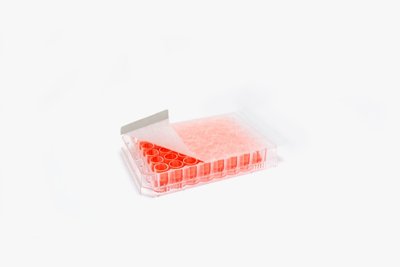

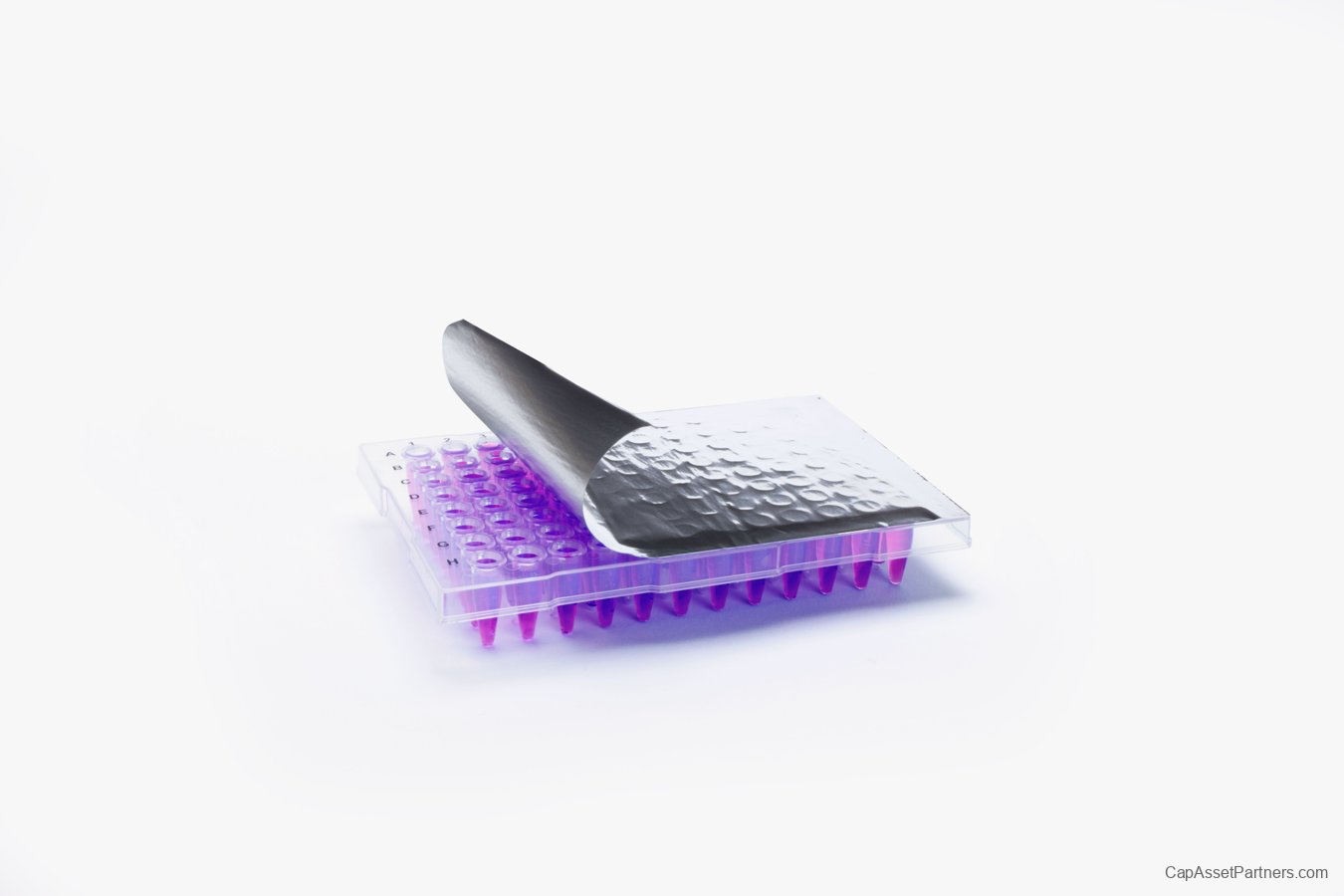

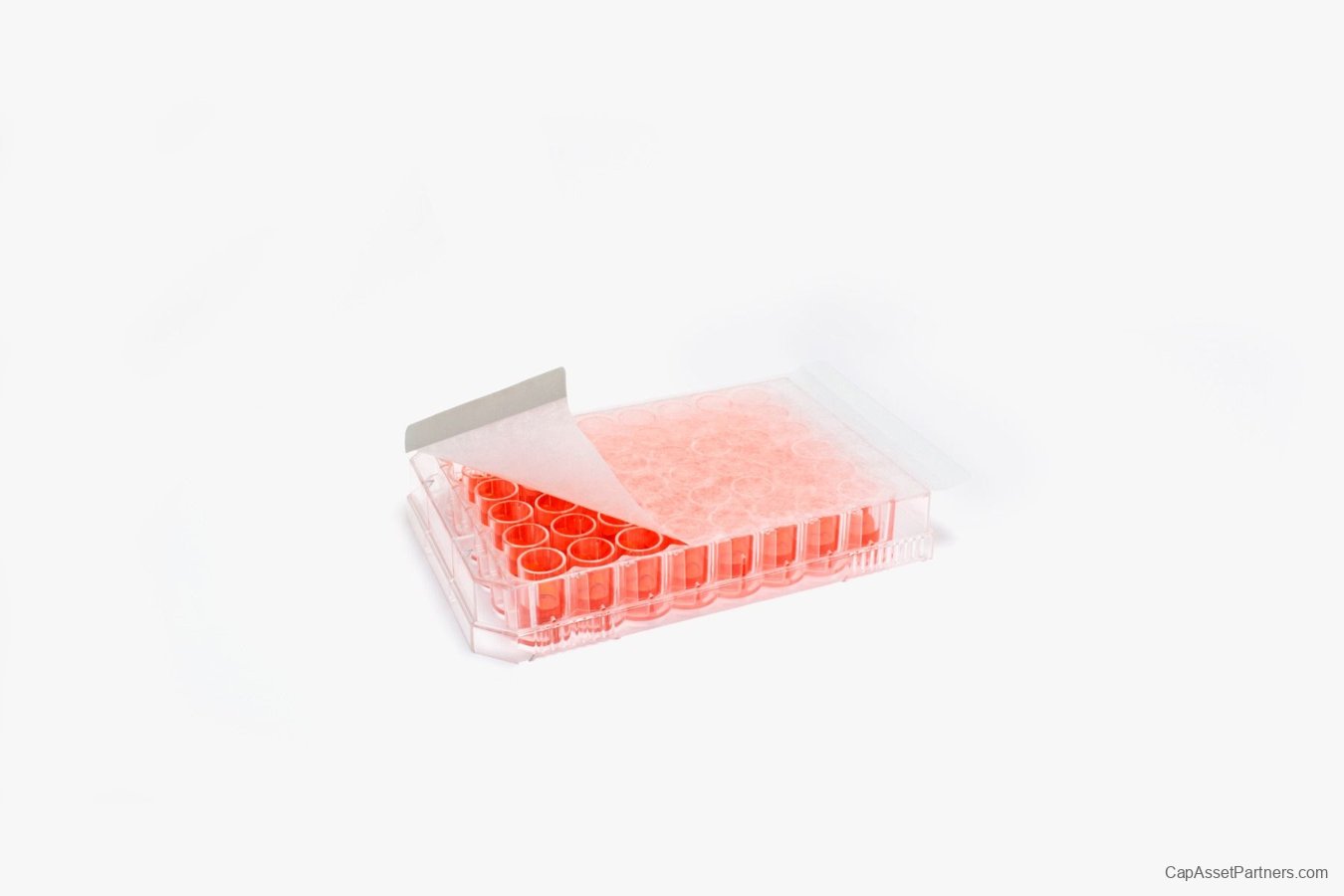

AlumaSeal® - Secure Sample Preservation for Well Plates

AlumaSeal® is expertly designed to provide a reliable seal for well plates, effectively minimizing evaporation, reducing cross-contamination, and preventing spillage. It's the ideal solution for laboratories that demand precision and efficiency in sample management.

Key Features:

    • Easy-to-pierce design allows for direct sample recovery.
    • Certified DNase- & RNase-free for contamination-free results.
    • Compatible with both 384-well and deep-well plates. For raised-rim and non-skirted PCR plates, opt for AlumaSeal® 96™ for a better fit.
    • One end-tab with no perforation enhances ease of use.
    • Pierceable with a pipet tip or robotic probe to facilitate direct sample retrieval.
    • Designed with a large cut for simple aligning to the edge of the plate instead of centering, ensuring effortless application.
    • Available in a convenient roll format for automated use: AlumaSeal Roll-Seal.
    • Note: All sales are final. No refunds permitted except for manufacturer defects.

Helpful Tips:

    • Remove the end-tab before thermal cycling for optimal performance.
    • For best results, peel diagonally from a corner to minimize tearing.
    • Selecting the appropriate film size significantly reduces evaporation.
    • Avoid overhanging the film or allowing it to ride up the walls of a raised-rim plate.
    • Ensuring complete coverage of skirted flat-top plates aids in reducing evaporation in outer wells.

Specifications:

SKU Temperature Range Dimensions Corner Radius
F-96-100 -80°C to +120°C 5.406" ± 0.015" x 3.250" ± 0.015" 0.063 opposite side of tab, 0.125 tab side
RF-80x100 -80°C to +120°C 80mm x 100 meters (3.15" x 328'), 3" Cores 0.063 opposite side of tab, 0.125 tab side
F-384-100 -80°C to +120°C 5.406" ± 0.015" x 3.250" ± 0.015" 0.063 opposite side of tab, 0.125 tab side

Additional Information:

SKU Film Material Film Thickness Adhesive Thickness Liner Material Liner Thickness Tab Dimensions
F-96-100 Aluminum Foil 1.5 mil ±10% 1.48 mil ±10% White Poly-Coated Paper 6.4 mil ±10% 0.531" ± 0.015"
RF-80x100 Aluminum Foil 1.5 mil ±10% 1.48 mil ±10% White Poly-Coated Paper 6.4 mil ±10% 0.531" ± 0.015"
F-384-100 Aluminum Foil 1.5 mil ±10% 1.48 mil ±10% White Poly-Coated Paper 6.4 mil ±10% 0.531" ± 0.015"
