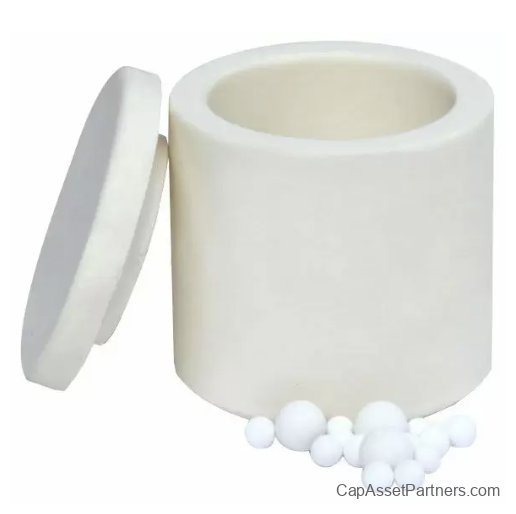

Alumina Ceramic Grinding Jars

The Alumina Ceramic Grinding Jars are expertly polished and designed for grinding small quantities of samples with precision and efficiency. Ideal for laboratory use, these jars are a vital tool in materials science and analytical applications.

Each Set Includes:

Grinding Jar

Rubber Sealing Gasket

Mixed Sizes of Alumina Ceramic Grinding Balls

Key Features:

Al₂O₃ content: < 97%

Hardness: 9 Mohs

Density: 3.65 g/cm³

Ball Configurations:

Ball Size/Qty (Pcs)		50 mL	100 mL	500 mL	1000 mL
6 mm	50	100	500	1000
	10 mm	8	16	100	200
	20 mm			2	3

Jar Configurations:

Planetary Ball Mill	Capacity	Compatible Non-Vacuum Jars	Compatible Vacuum Jars	Quantity
PQ-N04	0.4 L	50 mL - 100 mL	50 mL	4
PQ-N2	2 L	250 mL - 500 mL	100 mL - 250 mL	4
PQ-N4	4 L	100 mL - 250 mL	250 mL - 500 mL	4

Tolerance: ±2-3 mm

Specifications:

SKU	Material	For Use With	Outer Diameter	Inner Diameter	Height	Depth
AC.1L	Alumina Ceramic	PQ-N4	131 mm	115 mm	115 mm	115 mm
AC.500	Alumina Ceramic	PQ-N2, PQ-N4	107 mm	87 mm	110 mm	85 mm
AC.100	Alumina Ceramic	PQ-N04	68 mm	52 mm	70 mm	52 mm
