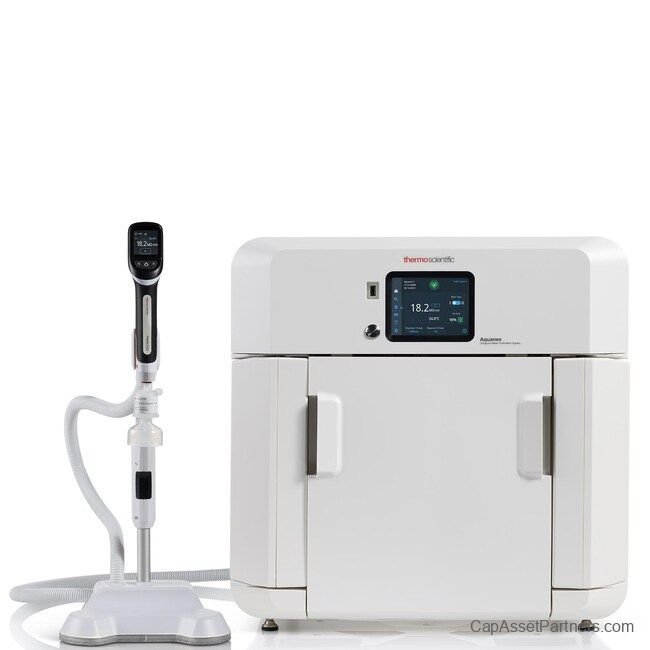

Aquanex™ Ultrapure Tap to Type I/II Water Purification Systems

The Aquanex™ system redefines laboratory water purification with its advanced features designed to enhance efficiency and usability. Equipped with an intuitive touch screen interface, the system provides effortless navigation for secured access, event logging, real-time monitoring, and comprehensive reporting. The innovative cartridge design ensures low Total Organic Carbon (TOC) levels, prolonged service life, and user-friendly cartridge replacements.

Easy to Use Design

• Touchscreen user interface simplifies start-up procedures and consumable changes.
• Aquanex Touch Smart Dispenser allows for convenient water dispensing using either the unit interface or a handheld device.
• Versatile dispensing options: the dispenser can remain mounted or be removed for use over larger containers.
• Effortless cartridge exchange with a one-button release; new cartridges automatically connect and are recognized upon insertion.
• Easily accessible consumables located under the magnetic front panel—no complex fixtures necessary.
• Quick-connect fixtures streamline installation, making setup fast and straightforward.

Reliable Water Quality

• Secured login feature with seamless event logging and monitoring, significantly reducing audit preparation time.
• High flow smart dispensing capabilities deliver superior dispensing accuracy with innovative cartridge design achieving <3PPB TOC.
• Heavy-duty ultrafilter paired with a 0.1 micron Point-Of-Use (POU) final filter ensures consistently high-quality ultrapure water.
• Automatic leak detection and system shut-off provide an added layer of safety in laboratory environments.

Sustainability Selection Mode

• Customizable operational modes allow the Aquanex system to function optimally for your lab's requirements, including Water Saver Mode, DI Pack Saver Mode, or Dynamic Mode.
• Water Saver Mode effectively recirculates water during tank filling, potentially saving up to 50% more water than Pack Saver Mode; however, it may impact the lifespan of cartridges and consumables.
• Pack Saver Mode minimizes wastewater recirculation to prolong the life of DI cartridges and other consumables.
• Dynamic Mode intelligently alternates between Pack Saver and Water Saver modes based on local water quality, offering the best balance of water savings and operational costs.

Specifications

SKU	Water Type	Output	Includes	Resistivity
7101010	Type 1 & Type 2	100 L	Water Purification System, Aquanex Touch Type 1 Dispenser, & Start-Up Consumables	18.2 MΩ·cm
7101011	Type 1 & Type 2	100 L	Water Purification System, Aquanex Touch Type 1 Dispenser, Barnstead Pre-Treatment System, & Start-Up Consumables	18.2 MΩ·cm
7201030	Type 1 & Type 2	100 L	Water Purification System, Aquanex Touch Type 1 Dispenser, 30 L Tank, & Start-Up Consumables	18.2 MΩ·cm
7201031	Type 1 & Type 2	100 L	Water Purification System, Aquanex Touch Type 1 Dispenser, 30 L Tank, Barnstead Pre-Treatment System, & Start-Up Consumables	18.2 MΩ·cm

Additional Information

SKU	Dimensions	Tank Dimensions	Feedwater Source
7101010	25 in x 24 in x 16 in		Potable Tap
7101011	25 in x 24 in x 16 in		Potable Tap
7201030	25 in x 24 in x 16 in	24 in x 16 in x 15 in	Potable Tap
7201031	25 in x 24 in x 16 in	24 in x 16 in x 15 in	Potable Tap
