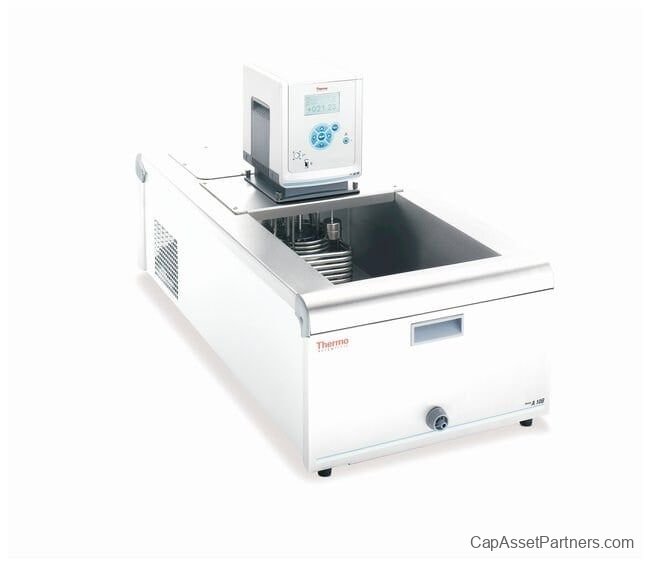

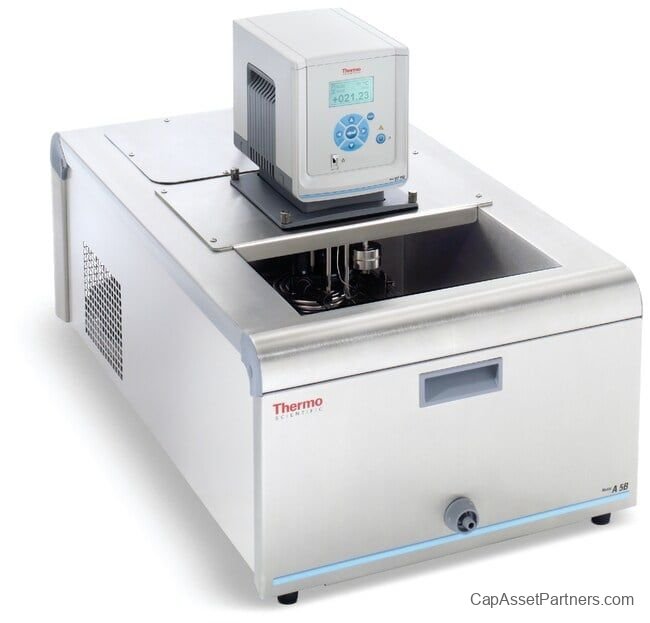

ARCTIC A10B Refrigerated Circulators
The ARCTIC A10B Refrigerated Circulator is expertly designed to enhance laboratory workflows, featuring a spacious work area that supports high throughput requirements. This state-of-the-art circulator operates within a temperature range of -10°C to +100°C and can accommodate a maximum bath volume of 30 liters, making it ideal for various cooling applications.
Key Features:
- Temperature Range: -10°C to +100°C
- Maximum Bath Volume: 30 liters (17 to 30L)
- Available with STANDARD or ADVANCED controller options for customized control based on specific application needs
- Robust stainless-steel construction ensures durability and longevity
Specifications:
| Voltage |
115V / 230V / 100V |
| Max Pressure |
300mbar / 4.35psi |
| Temperature Stability |
0.02°C |
| Flow Rate |
17L/min. |
| Dimensions (L x W x H) Exterior |
35.9 x 16.9 x 18.5 in. (91.3 x 42.9 x 47.1cm) |
| Net Weight |
97.9 lb. / 44.5kg |
| Safety Class |
1/NFL |
| Thermostat Control |
SC100 / SC150 / AC150 |
Design and Usability:
This unit is equipped with an innovative three-side ventilation design, allowing up to two sides to be blocked with full refrigeration performance and without degradation of equipment efficiency. The thermostat can be indexed 90° on all sides of the bath for easy viewing, while integrated handles and a front draining port promote user-friendly operation.
Sustainability:
Utilizing a CFC-free refrigerant, the ARCTIC A10B not only meets high-performance standards but also aligns with environmentally responsible practices.
