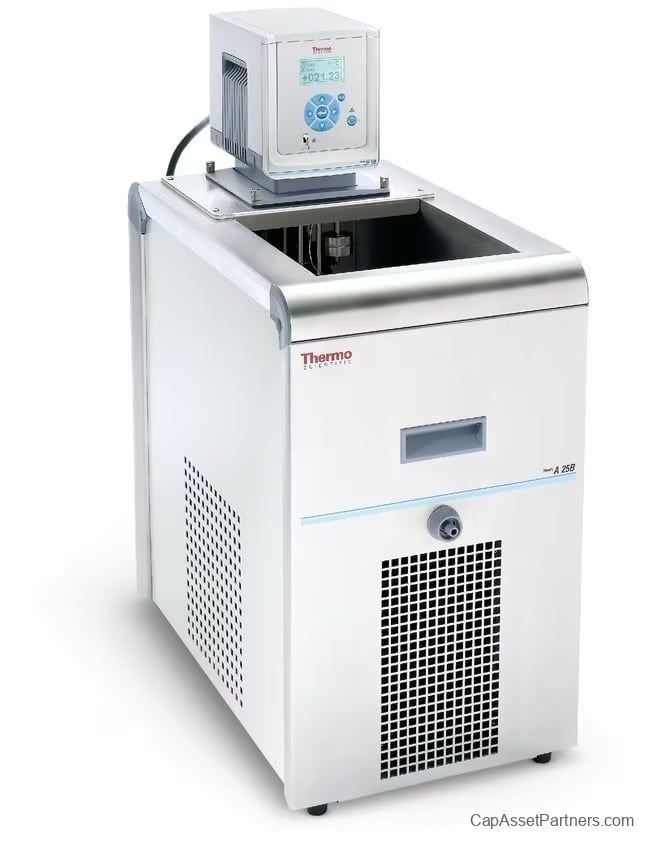

ARCTIC A25B Refrigerated Circulator
The ARCTIC A25B Refrigerated Circulator is engineered for precision temperature control in diverse applications, featuring a generous bath volume of up to 21 liters. With an extensive temperature range from -25°C to +200°C, it is designed to enhance your workflow efficiency and ensure high throughput.
Key Features:
- Versatile temperature range: -25°C to +200°C
- Maximum bath volume of 21 liters for ample sample capacity
- Customizable with STANDARD, ADVANCED, or PREMIUM controller options to suit various application needs
- Stainless-steel construction for durability and robustness
- 90° indexed thermostat for easy viewing from all sides
- Included external circulation set compatible with plumbing connections: M16×1, 0.25 NPT male, 0.375 in. O.D.
- Three-side ventilation concept allows up to two sides to be blocked without sacrificing refrigeration performance
- Convenient draining port positioned at the front for easy maintenance
- Integrated handles for effortless transport
- Utilizes CFC-free refrigerants for environmental safety
Included Accessories:
- Bridge with gasket and thumbscrews
- Pump plug for external circulation
Recommended Applications:
- Sample and material testing
- Sample and material preparation
Specifications:
| Temperature Range |
-25°C to +100°C |
| Cooling Capacity |
500W |
| Max Bath Volume (Imperial) |
0.46 to 0.73 cu. ft. |
| Max Bath Volume (Metric) |
13 to 21 L |
| Voltage |
230V / 100V / 115V (varies by model) |
| Max Pressure |
300 mbar / 4.35 psi |
| Certifications |
CE/ROHS/WEEE |
| Hertz |
50Hz / 60Hz (varies by model) |
| Net Weight (Imperial) |
93.1 lb. |
| Net Weight (Metric) |
42.3 kg |
| Dimensions (L x W x H) Exterior |
21.3 x 12.8 x 29.1 in. (54.1 x 32.4 x 74 cm) |
| Flow Rate (Metric) |
17 L/min. |
| Temperature Stability |
0.02°C |
| Control |
SC100 / SC150 (varies by model) |
