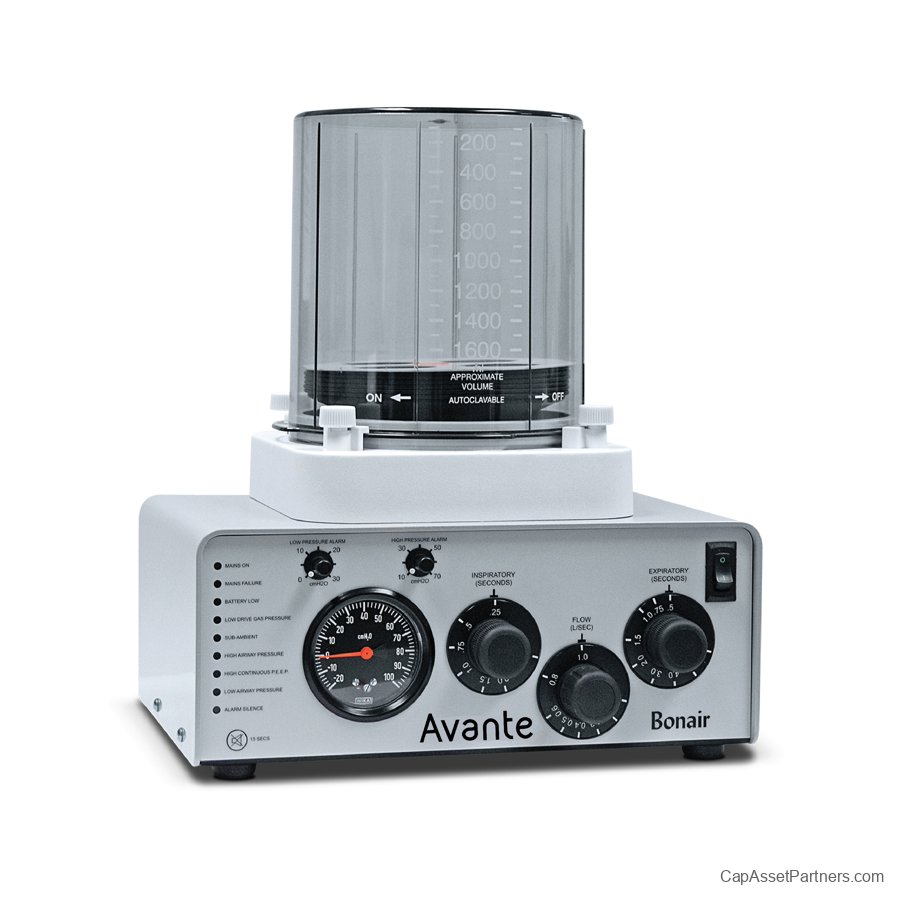

Avante Bonair Anesthesia Ventilator

Avante Bonair Anesthesia Ventilator
The Avante Bonair Anesthesia Ventilator is a state-of-the-art electronic time-cycled ventilator designed to enhance patient safety with its integrated patient alarms. This versatile ventilator features adjustable inspiratory and expiratory times as well as customizable flow rates, ensuring optimal ventilation tailored to individual patient needs. The device is equipped with both low and high pressure alarms; the low pressure alarm safeguards against insufficient patient circuit pressure during each breath, while the high pressure alarm automatically ceases inspiratory flow when the preset high pressure threshold is reached.
This advanced ventilator can be conveniently placed on any flat surface or mounted on a dovetail bracket, integrating seamlessly with anesthesia machines.
Options & Accessories:

• User Manual

• Adult Bellows Assembly

• Pediatric Bellows Assembly

• Bellows Drive Hose

• Patient Circuit - Drive Hose

• Pressure Sensing Hose (2.5m, 22mm M/F Connector)

• Anesthesia Machine Dovetail Bracket

• Patient Circuit Pressure Monitor

Experience the reliability and safety of the Avante Bonair Anesthesia Ventilator, designed for optimal performance in medical settings.

Avante Bonair Anesthesia Ventilator Specifications (Old)

General

• Height: 240 inches (609.6 cm)

• Width: 300 inches (762.0 cm)

• Depth: 260 inches (660.4 cm)

• Weight: 8 kg (17.6 lbs)

• Inspiratory Time: 0.25-3.0 seconds

• Expiratory Time: 0.5-6.0 seconds

• Flow Rate: 0.1-1.0 litres per second (6.1-60.0 L/min)

• Adjustable Pressure Relief: 20-80 cm H2O (2.0-7.8 kPa)

• I:E Ratio: Derived from inspiratory and expiratory time, minimum 1:1 ratio

• Tidal Volume:

• Adult Bellows: 25 ml-1600 ml

• Pediatric Bellows: 25 ml-300 ml

• Driving Gas: Oxygen

• Supply Pressure: 45-100 PSI (310-700 kPa)

• Airway Pressure Gauge: -20-100 cm H2O (-2.0-10.0 kPa)

• Adjustable Low Pressure Alarm: 0-30 cm H2O (0-2.9 kPa)

• Adjustable High Pressure Alarm: 10-70 cm H2O (1.0-6.9 kPa)

• Mute Button: 15 second delay with LED indication

• Patient Audible and Visual Alarms: For disconnect/low airway pressure, high airway pressure, high continuous pressure, and sub-ambient pressure.

• Additional Ventilator Alarms: For mains failure, low battery, and low drive gas pressure.

• External Power Supply: 90-264 volts AC

• Battery Backup: 12 hours minimum
