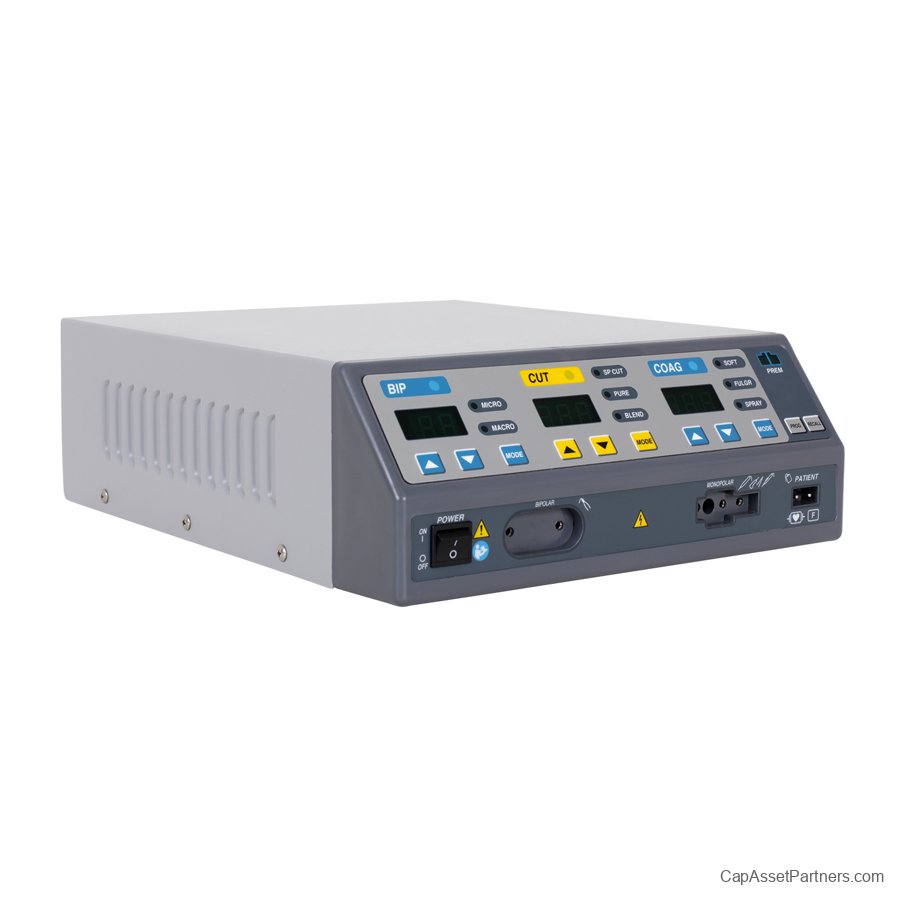

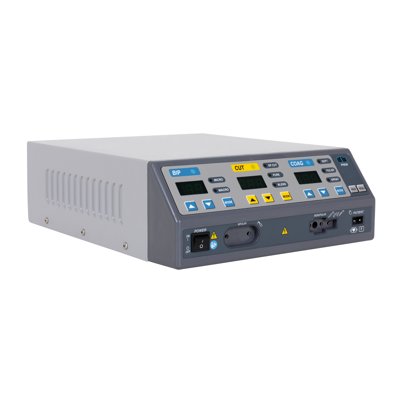

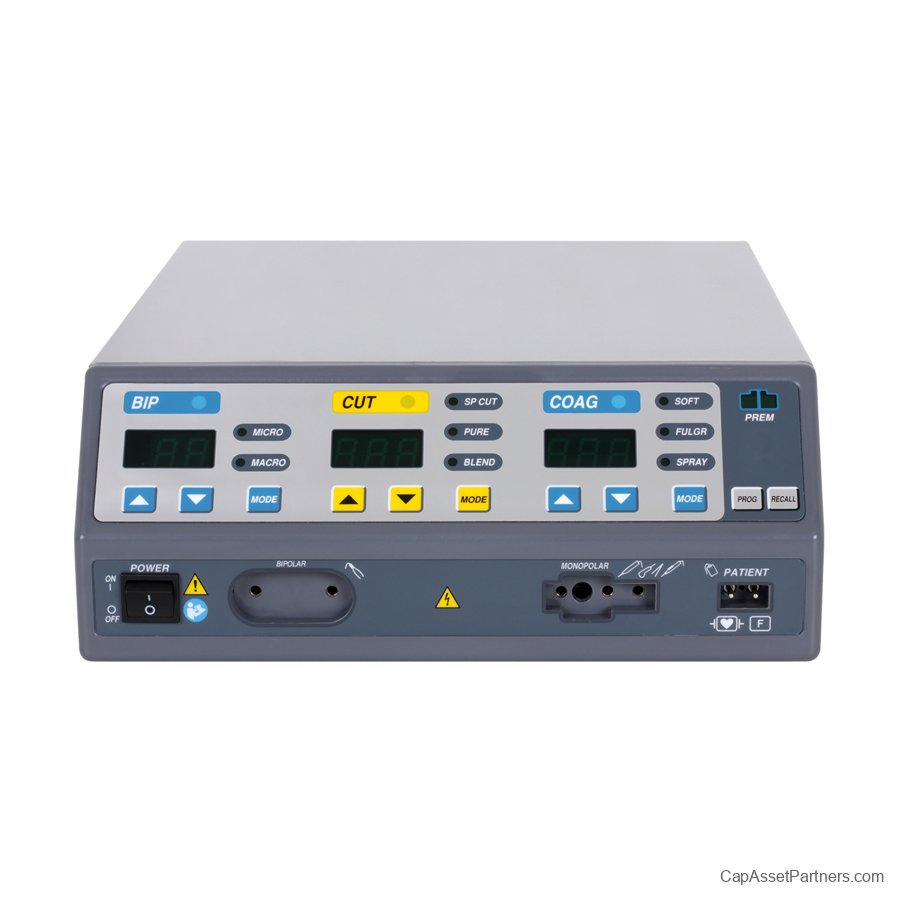

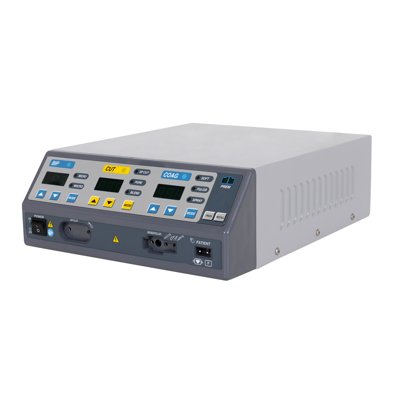

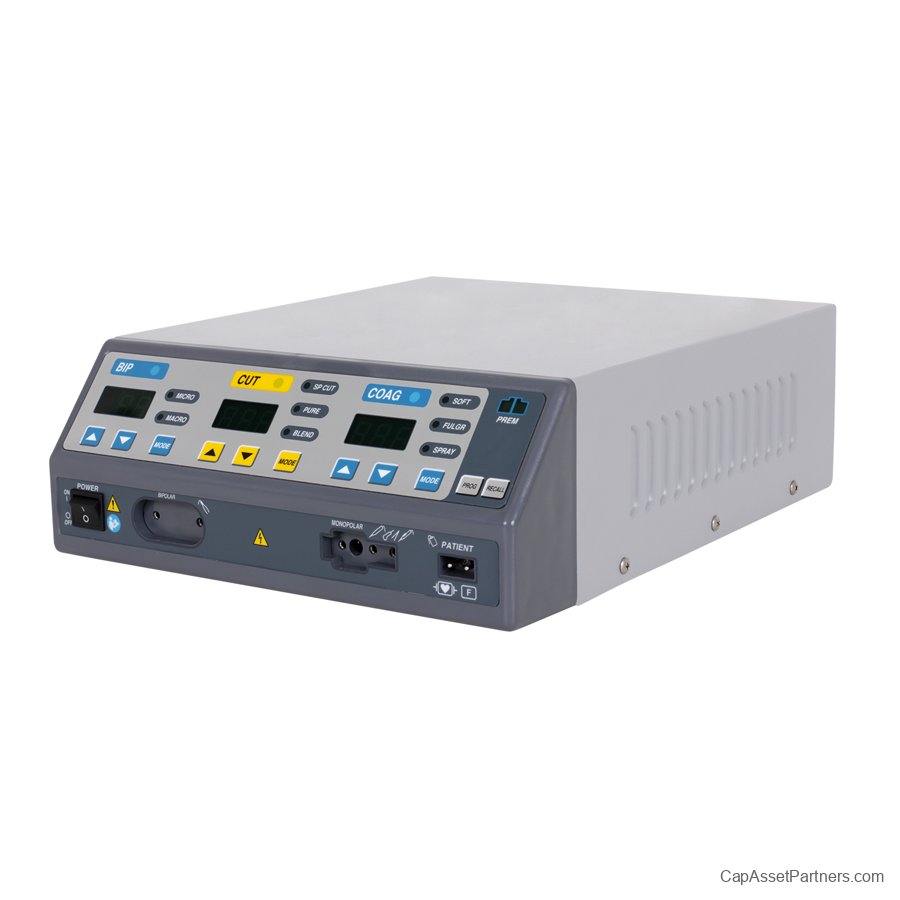

Avante Citadel 180 Electrosurgical Unit (ESU)

Avante Citadel 180 Electrosurgical Unit (ESU)

• Power & Reliability at an Affordable Price

The Avante Citadel 180 is the perfect electrosurgical unit for medical facilities seeking an economical solution without compromising on essential features. Designed to deliver 180 watts of stable power, this unit strikes a balance between performance and cost-effectiveness, making it an excellent choice for a variety of surgical specialties, including Plastic Surgery, Endoscopy, Laparoscopy, Gynecology, Dermatology, ENT, Ophthalmology, and Urology.
With versatile operation modes, clinicians can efficiently switch between monopolar and bipolar approaches, allowing for tailored settings that meet the specific needs of each procedure. Enhancing safety and efficiency, the Avante Citadel 180 features self-diagnostic checks to monitor the functionality of the unit and its accessories.
Key features include:

• Consistent Power Supply: The 180-watt output, complemented by unique tissue feedback technology, ensures stable performance across multiple tissue types.

• Patient Safety: The built-in patient return electrode monitor minimizes the risk of electrode site burns, enhancing patient safety during procedures.

• Self-Diagnostic Protocols: Routine checks confirm that all components are working optimally, providing peace of mind during surgeries.

• Versatile Coagulation Options: The spray coagulation feature allows for efficient treatment over wide areas, while the soft/desiccate coagulation setting is particularly useful for cutting thicker tissues efficiently.

• User-Friendly Interface: Navigate through various surgical modes easily with the programmable user interface.

• Durable Design: Waterproof pedals ensure reliability in the surgical environment.

For added convenience, the Avante Citadel 180 offers optional features such as remote power settings for adjustments from the sterile field, a safety timeout function to halt operation in case of unintended activation, as well as advanced accessories like argon beam coagulation, ultrasonic aspirators, smoke evacuators, and suction irrigation modules.
Make the Avante Citadel 180 Electrosurgical Unit your go-to choice for effective, reliable, and budget-friendly surgical procedures. Experience the perfect blend of performance and affordability designed to meet the needs of today’s healthcare facilities.

Avante Citadel 180 Electrosurgical Unit (ESU) Specifications

Dimensions

• Length: 15 in (38 cm)

• Width: 12 in (30.5 cm)

• Height: 4.5 in (11.5 cm)

• Weight: < 11 lbs (5 kg)

Power

• Operating Voltage: 180-265 V AC

• Max. Power Input: 1000 VA

• Fuse: 4 A

• UPS Backup: 1 KVA

Monopolar AutoCut

• Frequency: Pure Sine wave 390 kHz

• Sp Cut: Programmable Pulse or continuous output, 200 W at 300 ?, CF 1.5

• Pure: Continuous output, 200 W at 300 ?, CF 1.5

• Blend: Bursts repeating at 29 kHz 55% ON cycle, 120 W at 300 ?, CF 2.5

Bipolar

• Frequency: Pure Sine wave 390 kHz

• Micro: Lower output voltage, 50 W at 100 ?, CF 1.5

• Macro: Higher output voltage, 50 W at 100 ?, CF 1.5

Monopolar Coag

• Frequency: Damped Sine wave 460 kHz

• Soft: Repetition Frequency 62 kHz, 80 W at 500 ?, CF 5.0

• Fulgurate: Repetition Frequency 34 kHz, 80 W at 500 ?, CF 7.0

• Spray: Randomized Repetition Frequency 34 kHz < f < 50 kHz, 80 W at 500 ?, CF 8.0

Leakage Currents

• RF Leakage Current: Monopolar < 150 mA rms, Bipolar < 60 mA rms

• Low Frequency Leakage Currents: Normal polarity, intact ground < 10 ?A, Normal polarity, ground open < 50 ?A

Feedback System

• Technology: 3 Microprocessor Controlled 6SENSE Technology

• Sampling Rate: About 4000 sense/second

• Maximum Output Power Deviation: < 15% or 5 watts, whichever is greater at any setting with PER-98

PREM System

• Measuring Frequency: 85 kHz ± 10 kHz

• Measuring Current: < 10 ?A

• Acceptable Resistance Range: Dual Area PREM Patient Return Electrode 10-35 ?, Single Area Patient Return Electrode: < 10 ?
