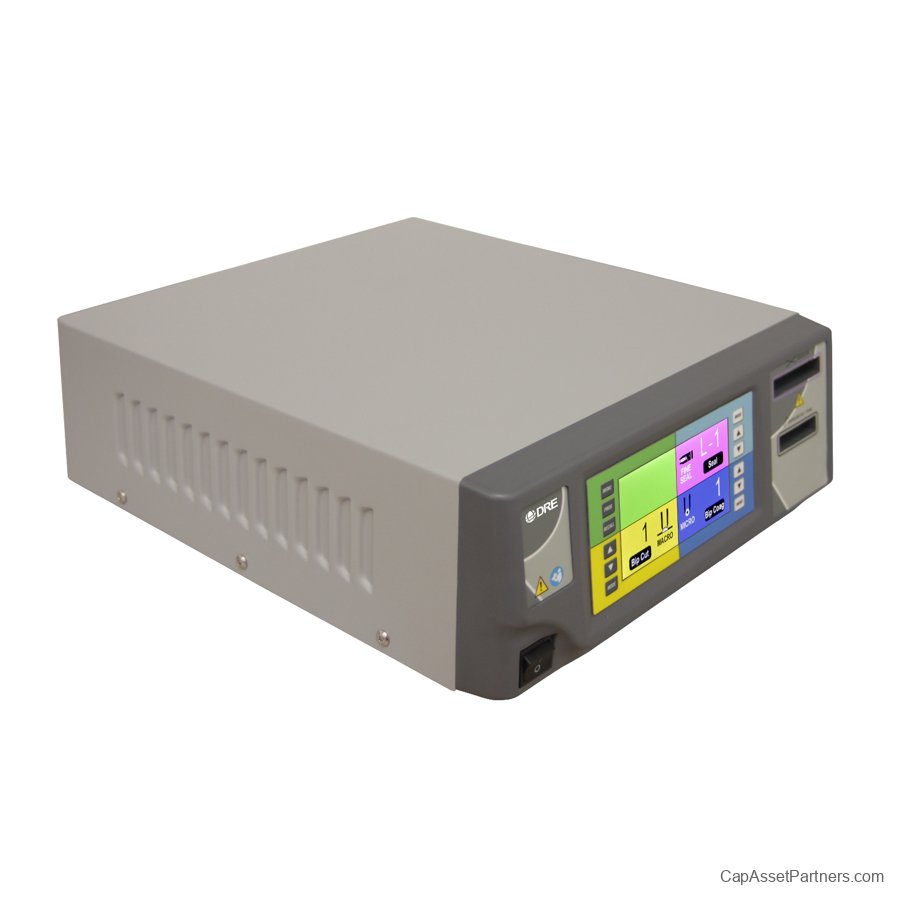

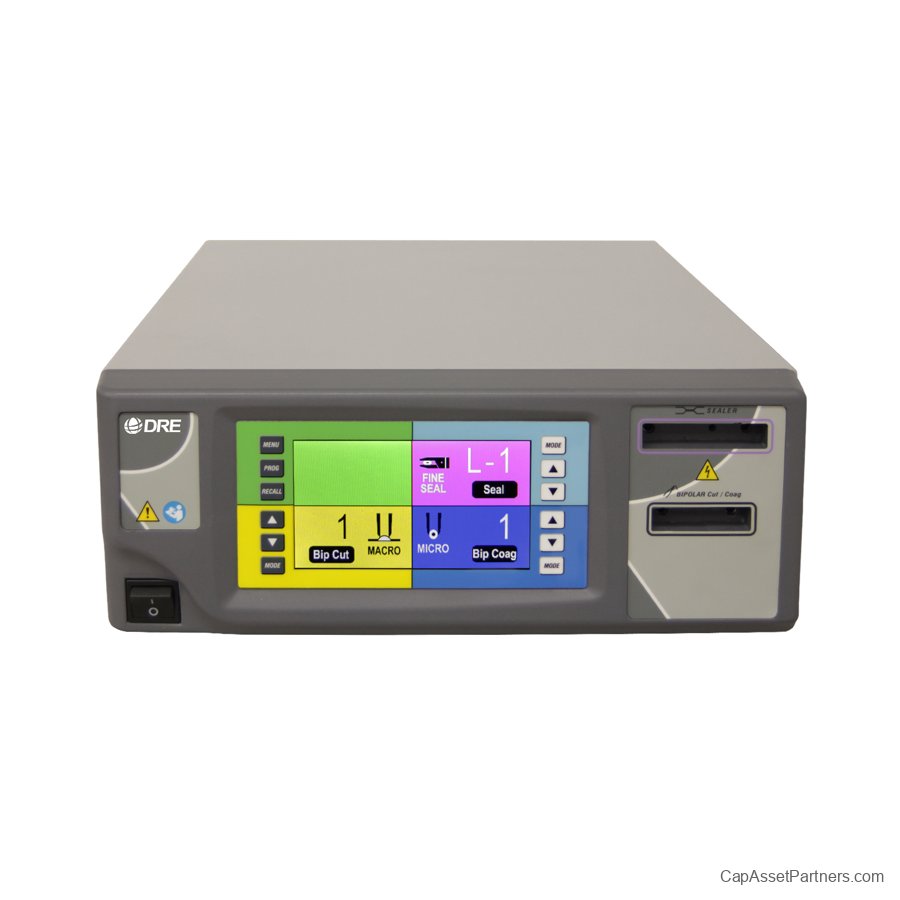

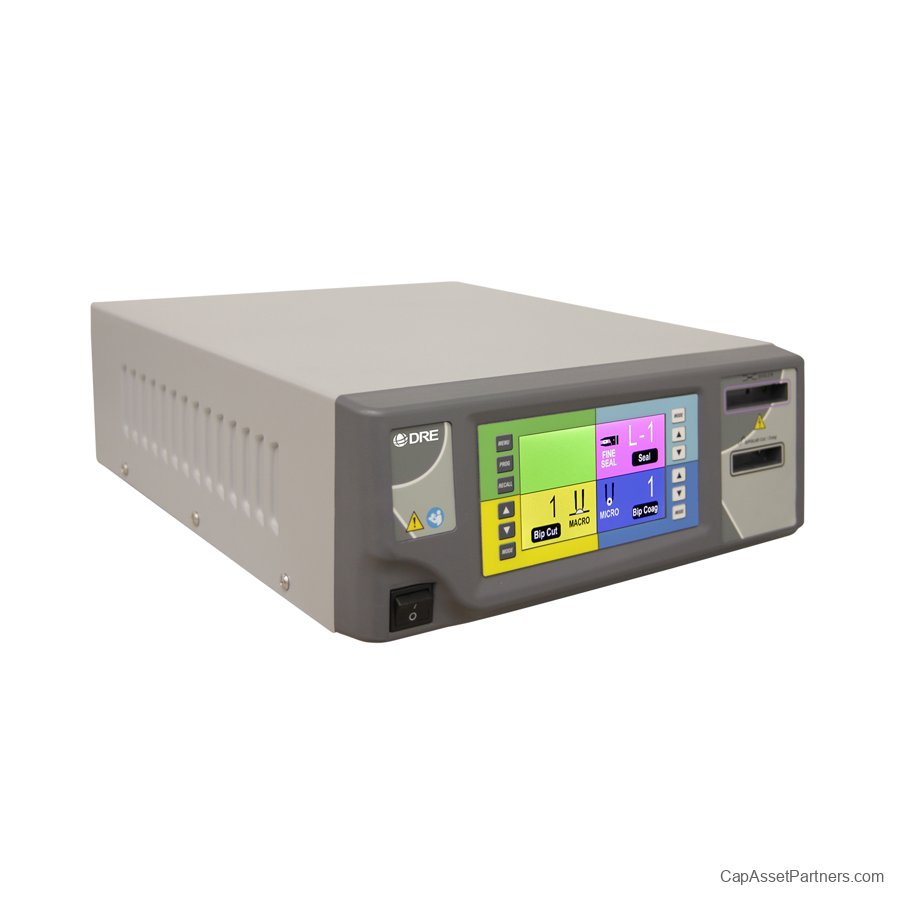

Avante Citadel EVS Vessel Sealing System

Avante Citadel EVS Vessel Sealing System: Precision in Surgical Excellence
The Avante Citadel EVS is an innovative vessel sealing and bipolar electrosurgery system, meticulously designed to enhance surgical efficiency in a single compact unit. This multifunctional device empowers clinicians to seamlessly perform a diverse range of procedures, minimizing the need for multiple instruments.
Key Features:

• Integrated Functions: Offers both vessel sealing and bipolar electrosurgery capabilities, streamlining workflow and enhancing procedural versatility.

• Microprocessor-Controlled Operation: Ensures superior clinical precision across all modes, including Macro Bipolar, Micro Bipolar, and Sealer Mode, allowing for tailored performance in various surgical contexts.

• Advanced 6Sense Technology: This sophisticated feedback system maintains optimal voltage, current, and power, adapting to tissue density for consistent performance while effectively monitoring leakage RF currents.

• Customizable Settings: Tailor the device to specific surgical requirements, maximizing efficiency and outcomes for different procedures.

• Audio Feedback Alarms: Alerts clinicians upon completion of bipolar coagulation, reducing the risk of tissue charring or sticking for improved surgical precision.

Versatile Accessories Available:

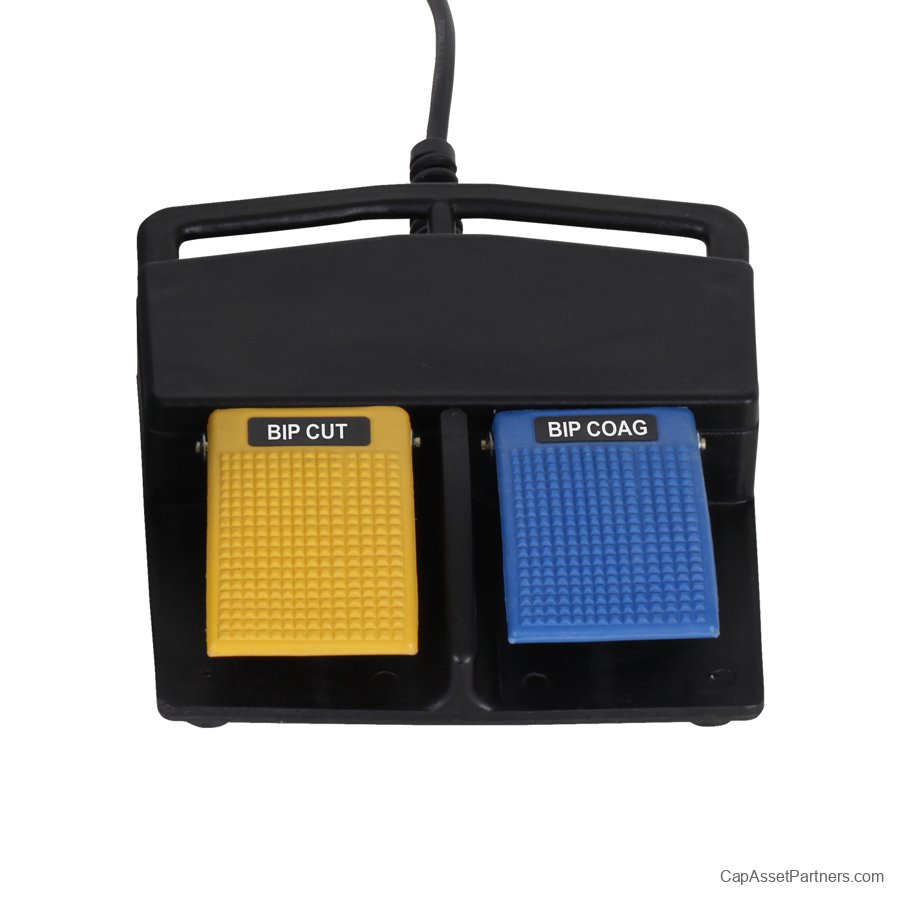

Enhance the functionality of your Avante Citadel EVS with a selection of compatible accessories, including various footswitches, grounding pads, and ESU pens and pencils. Optional accessories include:

• Coated Sealing Clamp with cord

• Sealer Handle

• Sealer Inserts (32 cm and 18 cm)

• Instrument Blade Set (10 mm, 10 pieces)

The Avante Citadel EVS Vessel Sealing System revolutionizes surgical practices by combining cutting-edge technology with ease of use, making it an essential addition to any medical facility seeking to improve surgical outcomes. Experience the future of surgical innovation today.

# Avante Citadel EVS Vessel Sealing System Specifications

## Bipolar

• Micro: 95 W at 100 ?, CF 1.5

• Micro: 95 W at 100 ?, CF 1.5

## Vessel Sealer

• Sealer: 150 W at 100 ?, CF 1.5

## Dimensions & Weight

• Length: 15.0 in (38 cm)

• Width: 12.0 in (30.5 cm)

• Height: 4.5 in (11.5 cm)

• Weight: < 11.0 lbs (< 5.0 kg)

## Transport & Storage

• Temperature Range: -40°C to 70°C (-40°F to 158°F)

• Relative Humidity: 10% to 100%, condensing

## Operating Parameters

• Temperature Range: 10°C to 40°C (50°F to 104°F)

• Relative Humidity: 30% to 75%, non-condensing

## Audio Volume

• Activation Tone: Volume (adjustable): 50 to ? 65 dB | Frequency: Bipolar: 940 Hz

• Alarm Tone: Volume (not adjustable): ? 65 dB | Frequency: 660 Hz | Pulse: Two Pulse 1 sec ON time, 1 sec OFF time

## Power

• Mains nominal voltage: 110 Volt

• Maximum VA at nominal line voltage: Idle: 60 VA | Bipolar: 360 VA | Cut: 816 VA | Coag: 480 VA

• Input mains voltage, full regulation range: 90-135 Vac

• Input mains voltage, operating range: 80-140 Vac

• Mains current (maximum): Idle: 0.4 A | Bipolar: 2.6 A | Cut: 6.4 A | Coag: 3.6 A

• Mains line frequency range (nominal): 50 to 60 Hz

• Fusing: 10 A

• Power Cord: 3-prong standard connector

## General

• Warm-up Time: Allow one hour for the generator to reach room temperature before use, if transported or stored at temperature outside the operating temperature range.

• Internal Memory: Non-volatile

• High Frequency (RF) Leakage Current: Bipolar RF leakage current: < 60 mA RMS
