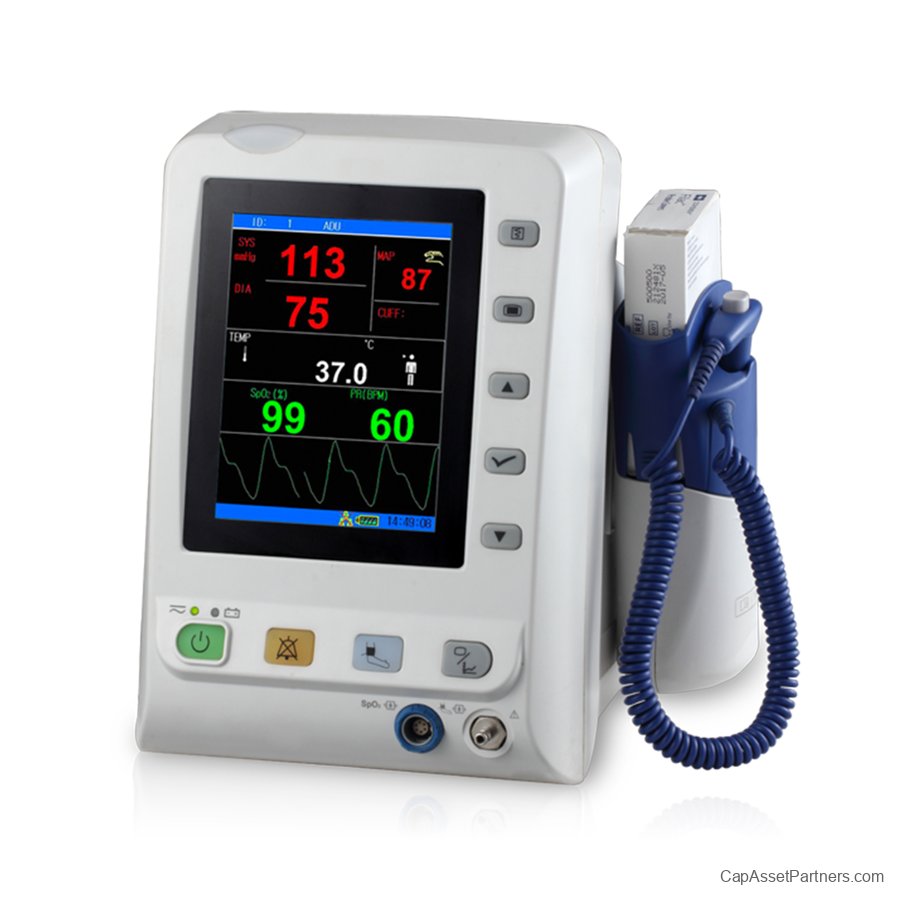

Avante Echo Portable Vital Signs Monitor

Avante Echo Portable Vital Signs Monitor

Introducing the Avante Echo Portable Vital Signs Monitor, meticulously designed for pre-op and post-op care. This ultra-lightweight device features a built-in rechargeable Lithium-ion battery, providing an impressive 10 hours of continuous operation, perfect for both outpatient settings and doctor's offices.

Key Features:

• Advanced Technology: Now equipped with Covidien Quick Temp Technology, ensuring rapid and accurate temperature readings.

• High-Resolution Display: The 5.7-inch display offers clear visibility, making it easy for healthcare professionals to monitor vital signs.

• Flexible Configurations: Choose from a variety of configurations, including SpO2, Non-Invasive Blood Pressure (NIBP), and temperature monitoring to suit your specific needs.

• Real-time Data: The monitor provides real-time measurements with a trend table for straightforward review, empowering healthcare providers to make informed decisions.

• Communication Capabilities: Supports bi-directional communication with central stations, whether through wired or wireless networks, enhancing connectivity and data management.

• Versatile Patient Application: Suitable for adult, pediatric, and neonatal patients, making it a versatile choice for diverse clinical environments.

• Optional Features: Additional features include the Nellcor Oximax™ option for enhanced SpO2 monitoring and an optional recorder for documenting patient data.

The Avante Echo Portable Vital Signs Monitor represents the perfect blend of portability, functionality, and accurate monitoring, making it an essential tool for any medical facility.

Avante Echo Portable Vital Signs Monitor Specifications

General

• Size: 7.9 in (L) × 9.5 in (H) × 7.4 in (D)

• Weight: 6.6 lbs (3 kg)

• Display: 5.7 in LCD

• Color TFT Resolution: 640 × 480 pixels

• Power Supply: 100-240 VAC, 50/60 Hz

• Maximum Power Consumption (Pmax): 70 VA

• Fuse: T 1.6A L

• Battery Type: Lithium-ion

• Voltage: 14.8 V DC

• Battery Capacity: 4,400 mAh

• Working Period: 480 min (Color TFT)

• Recharge Time: < 360 min

• Recorder: Optional

• Record Width: 1.89 in (48 mm)

NIBP (Non-Invasive Blood Pressure)

• Method: Oscillometric

• Mode: Manual, Auto, Continuous

• Measuring Interval in AUTO Mode: 1/2/3/4/5/10/15/30/60/90/120/240/480 minutes

• Continuous Measurement Interval: 5 min, with a 5 s interval

• Measuring Type: Systolic Pressure, Diastolic Pressure, Mean Arterial Pressure

Adult Mode:

• Systolic (SYS): 40-270 mmHg

• Diastolic (DIA): 10-215 mmHg

• Mean Arterial Pressure (MAP): 20-235 mmHg

Pediatric Mode:

• Systolic (SYS): 40-200 mmHg

• Diastolic (DIA): 10-150 mmHg

• Mean Arterial Pressure (MAP): 20-165 mmHg

Neonatal Mode:

• Systolic (SYS): 40-135 mmHg

• Diastolic (DIA): 10-100 mmHg

• Mean Arterial Pressure (MAP): 20-110 mmHg

• Cuff Pressure Measuring Range: 0-290 mmHg

• Pressure Resolution: 1 mmHg

• Maximum Mean Error: ±5 mmHg

• Maximum Standard Deviation: ±8 mmHg

• Entire Measuring Period: 30-45 seconds (dependent on heart rate/motion)

Dual Overpressure Protection:

• Adult: 297 mmHg ±3 mmHg

• Pediatric: 240 mmHg ±3 mmHg

• Neonatal: 145 mmHg ±3 mmHg

Pulse Rate (PR):

• Measuring Range: 40-240 bpm

• Resolution: 1 bpm

• Accuracy: ±3 bpm or ±3% of maximum

• Compliance: IEC 60601-2-30

SpO2 (Oxygen Saturation)

• Resolution: 1%

• Accuracy:

• Adult (including Pediatric):

• ±2% for 70%-100% SpO2

• Undefined for 0%-70% SpO2

• Neonate:

• ±3% for 70%-100% SpO2

• Undefined for 0%-70% SpO2

• Measuring Range: 0-100%

• Alarm Range: 0-100%

Pulse Rate:

• Measuring and Alarm Range: 30-300 bpm

• Resolution: 1 bpm

• Accuracy: ±3 bpm

• Data Update Period: 2 seconds

• Compliance: ISO 9919
