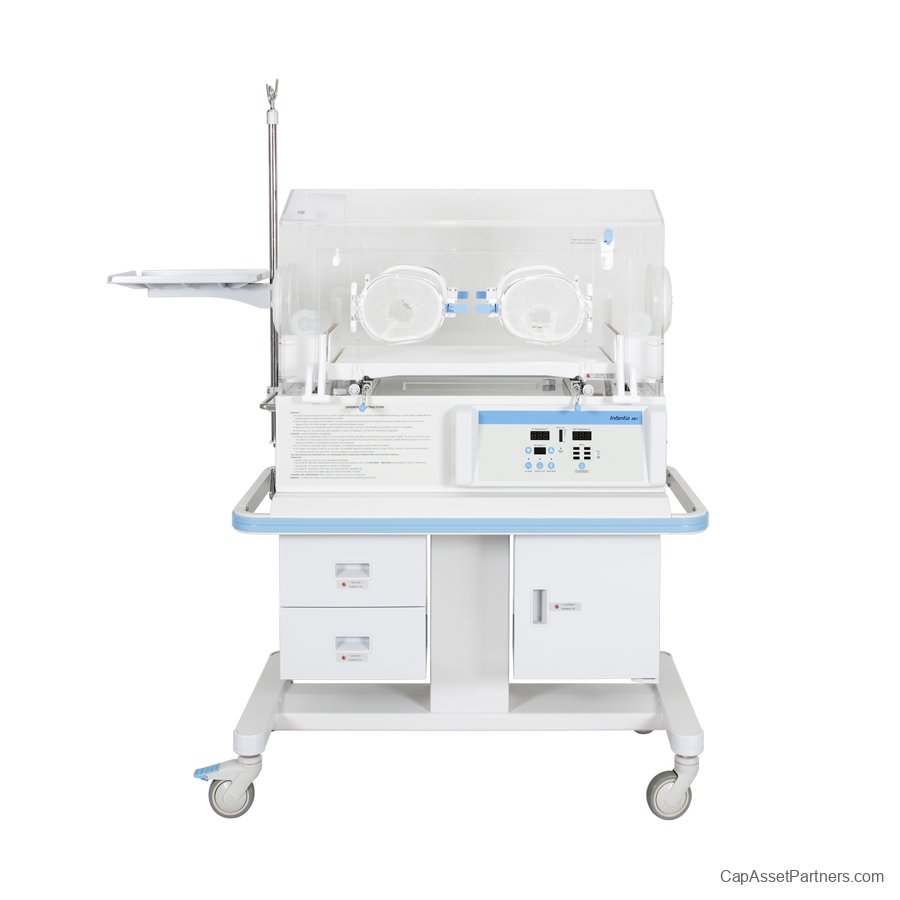

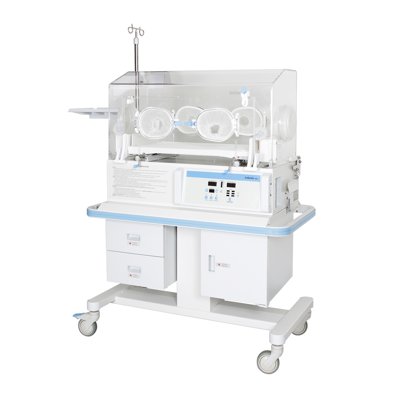

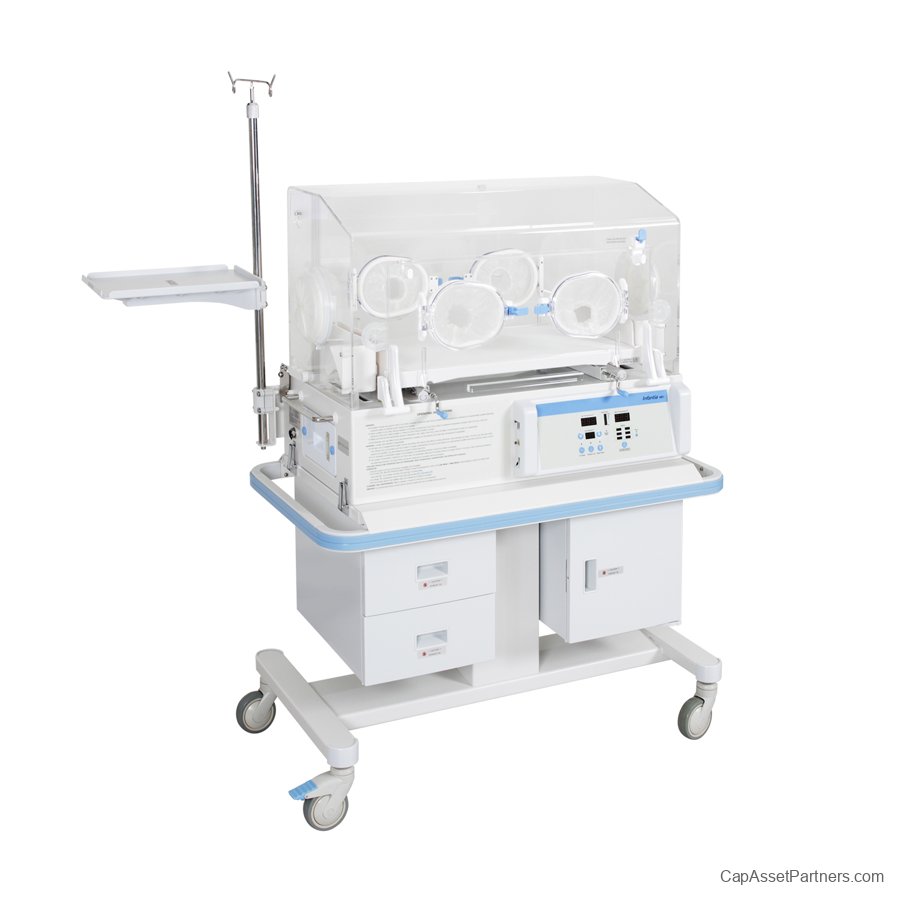

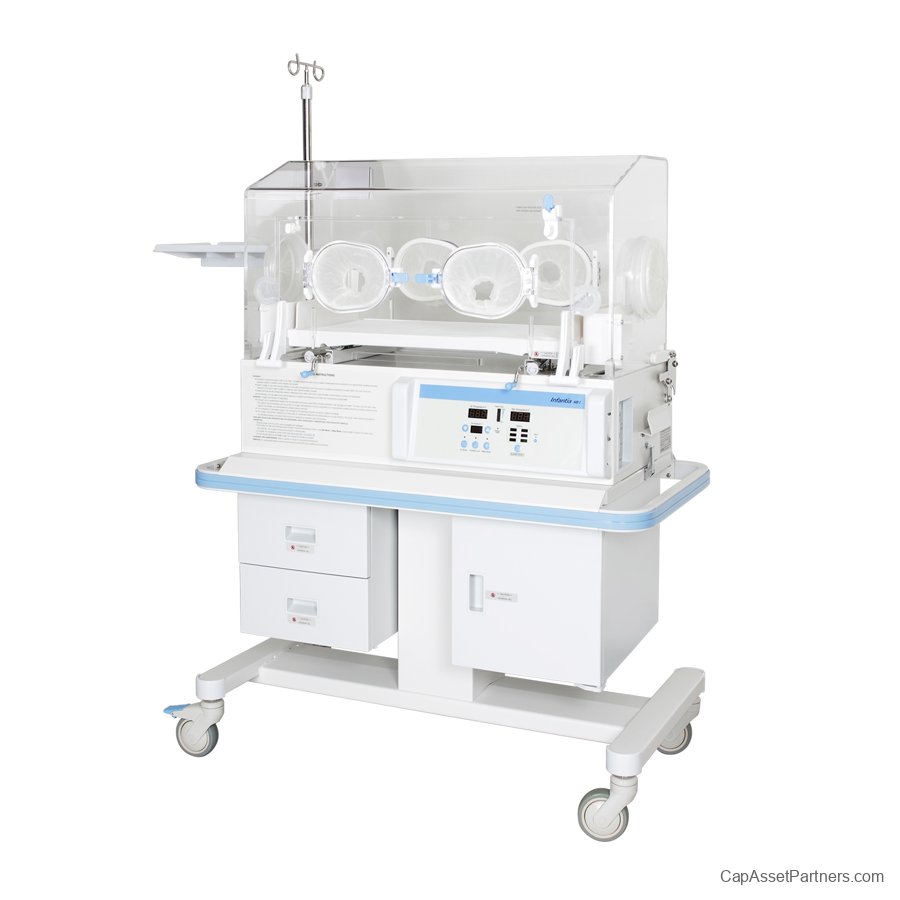

Avante Infantia NB1 Infant Incubator: The Ultimate Care Solution for Newborns
The Avante Infantia NB1 Infant Incubator is designed to provide optimal care and comfort for premature and vulnerable infants. Equipped with advanced servo-control technology managed by a micro-computer, this incubator ensures precise temperature regulation tailored to the needs of each newborn.
Key Features:

• Servo-Controlled Temperature: Offers accurate climate control, essential for maintaining a stable environment for infants.

• Quiet Windows: Specially designed to minimize disturbances, ensuring a serene atmosphere during nursing sessions.

• Adjustable Inclination: The bassinet allows for customizable positioning to promote comfort and ease of access.

• User-Friendly Touch Switch Panel: Features an LED digital display for clear visibility of temperature settings, including set temperature, real temperature, and auxiliary temperature, all shown separately for ease of monitoring.

• Comprehensive Alarm System: Equipped with multiple self-checking alarms that provide both audible and visible alerts, ensuring the safety and well-being of your infant.

• Heating Power Rate Indicator: Displays the heating power from 0% to 100%, allowing for precise adjustments as needed.

• RS 232 Connector: Facilitates data output, enhancing monitoring capabilities for healthcare providers.

Standard Configuration Includes:

• Protective hood

• Infant bed

• Temperature controller

• Skin temperature sensor

• Aluminum water tank

• Air filter

• Guardrail

• I.V. pole and cabinet

The Avante Infantia NB1 Infant Incubator is an essential tool for healthcare professionals dedicated to providing the best possible care for newborns. Its combination of advanced features and thoughtful design makes it an indispensable asset in any neonatal unit. Enhance your facility's ability to nurture and safeguard the health of its youngest patients with this high-quality incubator.

Avante Infantia NB1 Infant Incubator Specifications

General

• Power Supply: AC 110 - 240V / 50-60 Hz

• Power Input: 600 VA

• Air Temperature Control Range: 25°C — 37°C (77°F — 98.6°F)

• Skin Temperature Control Range: 34°C — 37°C (93.2°F — 98.6°F)

• Sensor Precision: ? 0.3°C (? 0.54°F)

• Changing of Temperature: ? 0.5°C (? 0.9°F)

• Uniformity of Temperature: ? 0.8°C (? 1.44°F)

• Temperature Rising Time: ? 30 min

• Noise Level: ? 55 dB (A)

• Inclination of Bassinet: 0° - 5°

Alarming

• Audible and Visible Alarm:

• Indicates real temperature and cuts off the heater power (except low deviation alarm).

• Skin temperature indication window shows alarm code.

- Alarm 1 - 6 lights indicate respective alarms; all lights for Alarm

• All alarms can be canceled except for power failure and system alarms.

• Over-Temp Alarm:

• Activates at air temperature control ? 38°C (100.4°F) and skin temperature control ? 40°C (104°F).

• Upper Deviation Alarm:

• Activates at air temperature control +3.0°C (5.4°F) and skin temperature control +1.0°C (1.8°F).

• Lower Deviation Alarm:

• Activates at air temperature control -3.0°C (?5.4°F) and skin temperature control -1.0°C (?1.8°F).

• Sensor Alarm:

• Activates for sensor disconnection, open circuit, short circuit, or incorrect placement.

• Fan Alarm:

• Activates for blocked fan, speed ? 1000 rpm, or when fan stops working.

• Power Failure Alarm:

• Activates for power loss or disconnecting power cord.

• System Alarm:

• Activates for E2ROM malfunction in temperature controller.

Package

• Gross Weight:

• Main body: 66 kg (145.5 lbs);

• Cabinet: 68 kg (149.9 lbs).

• Dimensions:

• Main body: 1,085 × 640 × 900 mm (42.7" × 25.2" × 35.4");

• Cabinet: 1,125 × 665 × 715 mm (44.4" × 26.2" × 28.2").
