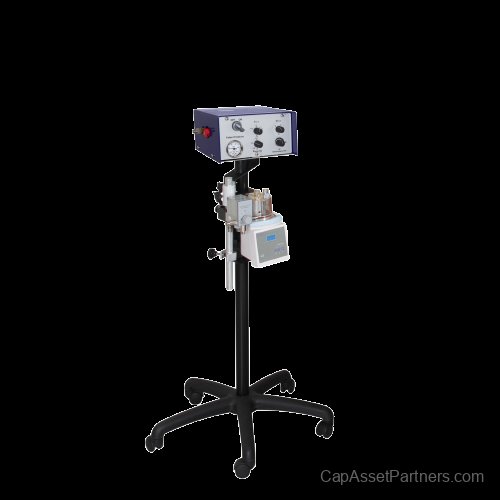

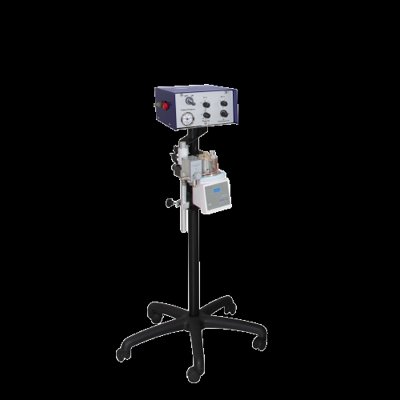

Avante MVP Portable Ventilator, Blender & Humidifier Bundle

Avante MVP Portable Ventilator, Blender & Humidifier Bundle
Discover the Avante MVP Portable Ventilator, an essential solution for emergency ventilation needs, designed to ensure patient comfort and support spontaneous breathing. This compact and versatile device is ideal for various healthcare settings, making it a vital addition to your medical equipment arsenal.
Key Features:

• Pneumatically Driven: The Avante MVP operates efficiently, providing reliable ventilation capabilities.

• Time-Cycled & Controlled: Tailor ventilation settings with time-cycled functionality to meet specific patient needs.

• Pre-Set Flow Rate: Easy-to-use controls allow for a consistent pre-set flow rate.

• Internal Diaphragm: Facilitates patient-initiated breathing, enhancing comfort and effectiveness.

• Versatile Applications: Suitable for both invasive and non-invasive ventilation, ensuring comprehensive care.

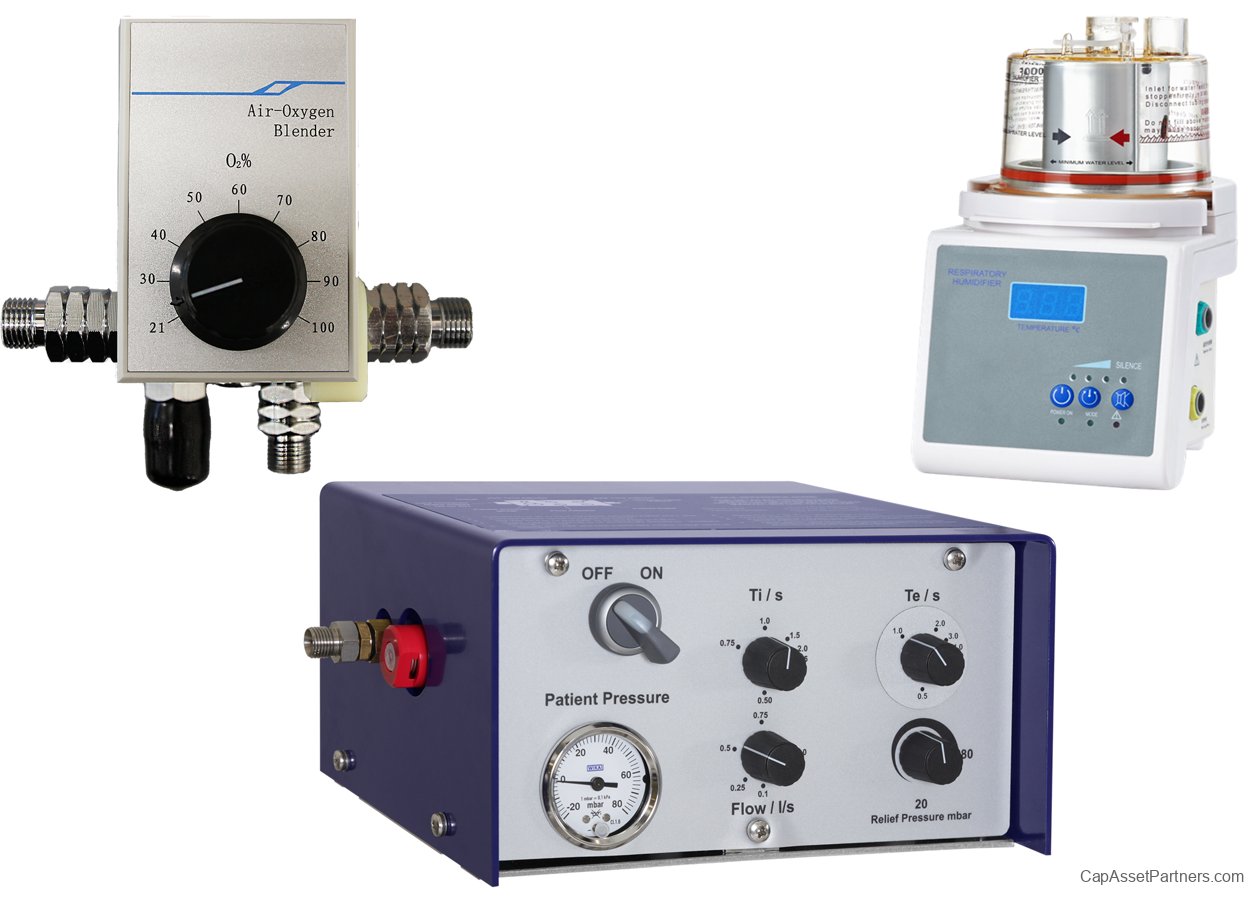

Bundle Components:

• Avante MVP Ventilator:

Experience the benefits of a ventilator that supports spontaneous breathing while providing reliable ventilation. This device includes a reusable PEEP valve, a patient circuit, and a hose for immediate use.

• Avante PH300 Humidifier:

Delivering warm and humidified air and oxygen, this unit is designed for seamless integration with all ventilators. Adjustable temperature control ensures optimal patient comfort. (Please specify 110 or 220 volt for your needs.)

• Avante High-Low Flow Oxygen Blender:

This essential component mixes medical-grade compressed air and oxygen, providing a customizable pressurized gas source with oxygen levels ranging from 21% to 100%, tailored to patient requirements.
Enhance your medical capabilities with the Avante MVP Portable Ventilator, Blender & Humidifier Bundle, designed for both emergency situations and routine care. Invest in quality and reliability to ensure the best outcomes for your patients.

Avante MVP Portable Ventilator, Blender & Humidifier Bundle Specifications

General Conditions

• Supply Pressure:

• Specified Connection: 4 bar (58 psi) medical air or Oxygen

• Working Range: 3.5 to 8 BarG (51 to 116 psi)

• Range of 2.8 to 10 BarG (41 to 145 psi) shall pose no safety hazard in single faulty condition

• Supply Quality: Clean, dry medical grade air/oxygen

• Gas Supply Temperature: 10°C to 40°C (50°F to 104°F)

• Filtration Required Within Ventilator: 40 Micron or better

• Environmental Temperature for Storage and Transport: -5°C to 50°C (23°F to 122°F)

• Transport Temperature: -18°C to 60°C (0°F to 140°F)

• Environmental Temperature Operating: 10°C to 40°C (50°F to 104°F)

Flow Control

• Flow Range: 0.1 to 1 L/s (0.24 to 2.37 gal/min), ±10% of set value

• Adjustment Range: Rotary Control 300° ± 5°

• Graduation: 0.25, 0.25, 0.75, 1.0; control will be non-linear

On Timer

• Timing Range: 0.25 to 2.5 seconds, ±10% of set value

• Adjustment Range: Rotary control 300° ± 5°

• Graduation: 0.25, 0.5, 1.0, 1.5, 2.0, 2.5; control will be non-linear

Input Fittings

• Input Fitting: BSP threaded port

System On/Off Control

• Type of Operator: 1/4 twist bi-stable control knob with on/off indicator symbols

System Pressure Regulator

• Regulator Type: Pre-set, non-user adjustable without tools; safety feature to prevent excessive pressure in single failure mode

Airway Manometer

• Manometer Range: -20 to 100 cmH2O (approximately -29 to 145 mmHg)

• Major Graduations: Increments of 10 cmH2O (4 inHg)

• Minor Graduations: Increments of 2 cmH2O (0.8 inHg) without numbers

Materials

• Compatibility: All materials compatible with air and oxygen

• No Animal Products: No animal tissues or derivatives in the device or its manufacturing process

Patient Valve

• Breathing Circuit Connection: 22 mm with 15 mm internal female taper

• Pre-set Pressure Limiting Safety Valve: 60 cmH2O ± 2.5 cmH2O (approximately 80 mmHg ± 3.5 mmHg)

Usability

• Rotary Controls:

• On/Off

• Inspiratory Flow

• Inspiratory Time

• Expiratory Time

• Functionality: Enables constant flow during inspiratory phase and infinite variability of I:E settings within the range of the controls.
