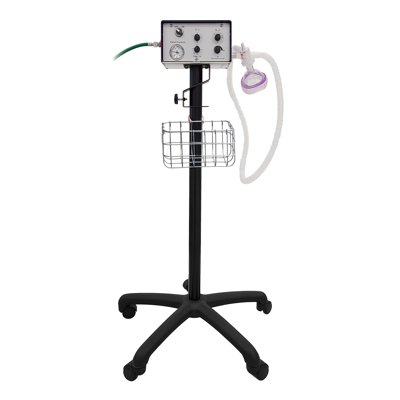

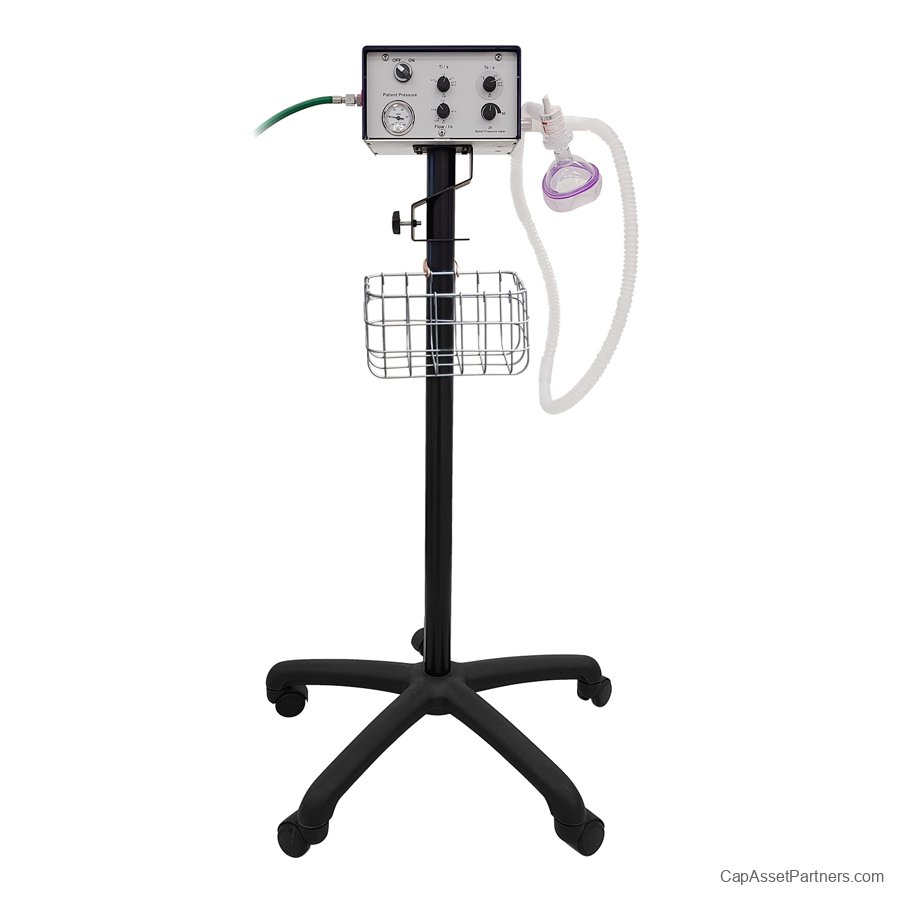

Avante MVP Portable Ventilator

Avante MVP Portable Ventilator: Reliable Emergency Ventilation Solution
The Avante MVP Portable Ventilator is specifically designed for effective emergency ventilation of patients, offering the capability for spontaneous breathing. This versatile device ensures that healthcare providers can deliver critical respiratory support in any setting.

Features

• Pneumatically Driven: Ensures reliable operation without the need for electrical power, making it ideal for emergency situations.

• Time-Cycled: Allows for precise control over ventilation cycles, enhancing patient care.

• Pre-Set Flow Rate: Facilitates appropriate breathing support tailored to patient needs.

• Time Controlled: Offers adjustable settings to maintain optimal ventilation over time.

• Time and Flow Monitoring: Enables continuous monitoring of ventilation parameters for better patient management.

• Internal Diaphragm: Supports spontaneous breathing, allowing patients to have a natural breathing rhythm.

Ideal for emergency medical services, hospitals, and other healthcare facilities, the Avante MVP Portable Ventilator is a critical tool that enhances patient safety and comfort during ventilation emergencies. Optimize your clinical capabilities with this reliable and user-friendly ventilator.

Avante MVP Portable Ventilator Specifications (Old)

General Conditions:

• Supply Pressure:

• Specified Connection: 4 bar (58 psi) medical air or oxygen

• Working Range: 3.5 to 8 BarG (51 to 116 psi)

• Safety Range: 2.8 to 10 BarG (41 to 145 psi) shall cause no safety hazard in single faulty condition

• Supply Quality: Clean Dry medical grade air/oxygen

• Gas Supply Temperature: 10°C to 40°C (50°F to 104°F)

• Filtration Required within Ventilator: 40 Micron or better

• Environmental Temperature (Storage and Transport): -5°C to 50°C (23°F to 122°F)

• Transport Temperature: -18°C to 60°C (0°F to 140°F)

• Environmental Temperature (Operating): 10°C to 40°C (50°F to 104°F)

Flow Control:

• Flow Range: 0.1 to 1 Litre per second (0.024 to 0.264 gallons per minute), +/-10% of set value

• Adjustment Range: Rotary Control 300° +/- 5°

• Graduation: 0.25, 0.5, 0.75, 1.0 (control will be non-linear)

On Timer:

• Timing Range: 0.25 to 2.5 seconds, +/- 10% of set value

• Adjustment Range: Rotary control 300° +/- 5°

• Graduation: 0.25, 0.5, 1.0, 1.5, 2.0, 2.5 (control will be non-linear)

Input Fittings:

• Input fitting to Ventilator: BSP threaded port

System On/Off Control:

• Operator Type: 1/4 Twist bi-stable control knob with on/off indicator symbols

System Pressure Regulator:

• Pre-set and NOT user adjustable without removing the cover of the unit using tools (safety feature to prevent excessive pressure in single failure mode).

Airway Manometer:

• Respiratory Manometer Range: -20 to 100 cmH2O

• Major graduations: 10 cmH2O increments

• Minor graduations: 2 cmH2O increments (without numbers)

Materials:

• Compatibility: All materials will be compatible with air and oxygen

• Composition: No animal tissues or derivatives used in the device or its manufacturing process

Patient Valve:

• Connection to Breathing Circuit: 22mm with 15mm internal female taper

• Integral Pre-set Pressure Limiting Safety Valve: 60 cmH2O ± 2.5 cmH2O

Usability:

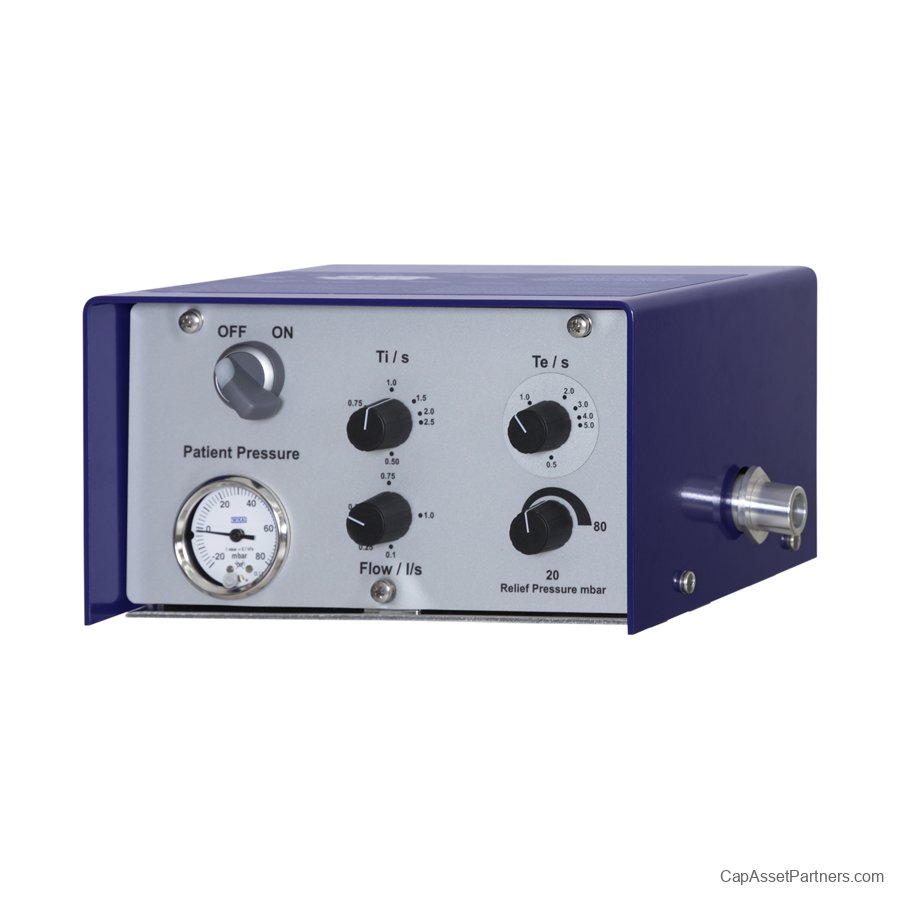

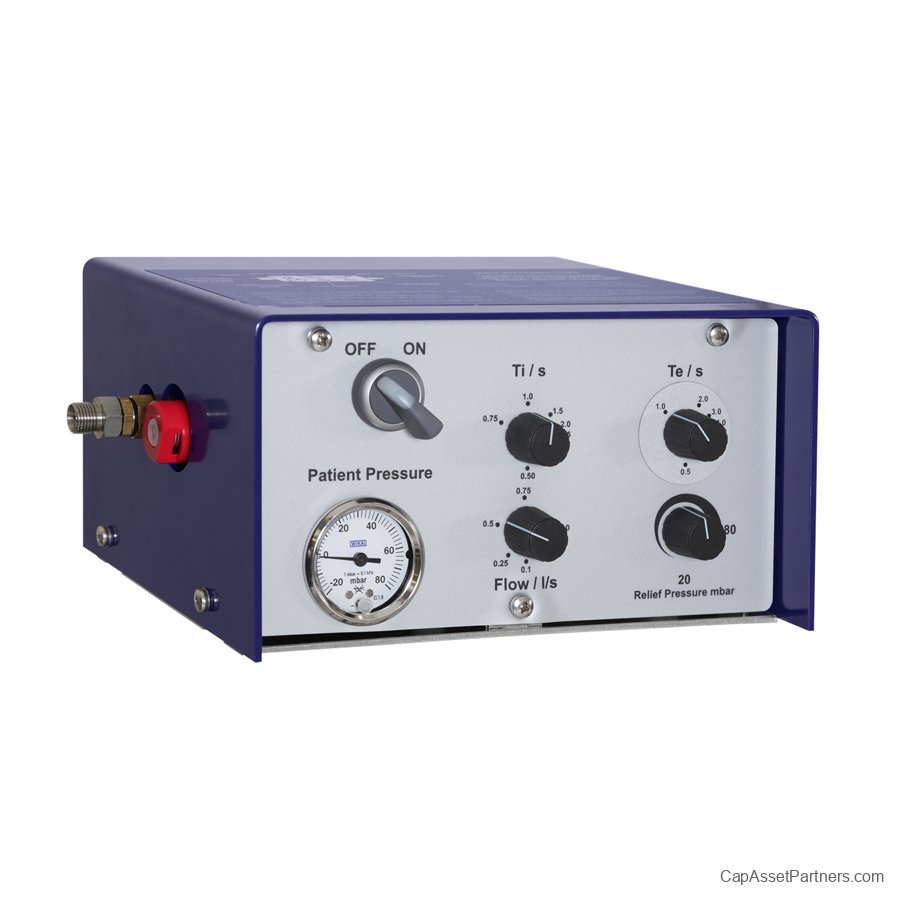

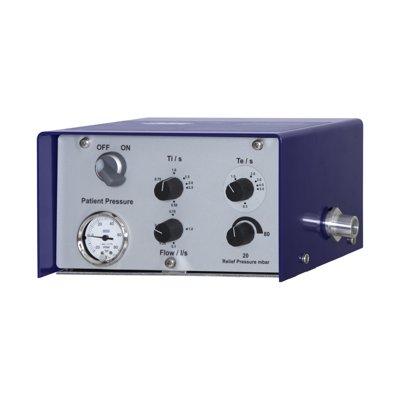

• Rotary Controls:

• On/Off

• Inspiratory Flow

• Inspiratory Time

• Expiratory Time

• Enable constant flow during the inspiratory phase and infinite variability of I:E settings within the range of the controls.
