Avante Respiratory Support System: Comprehensive Ventilation Solution

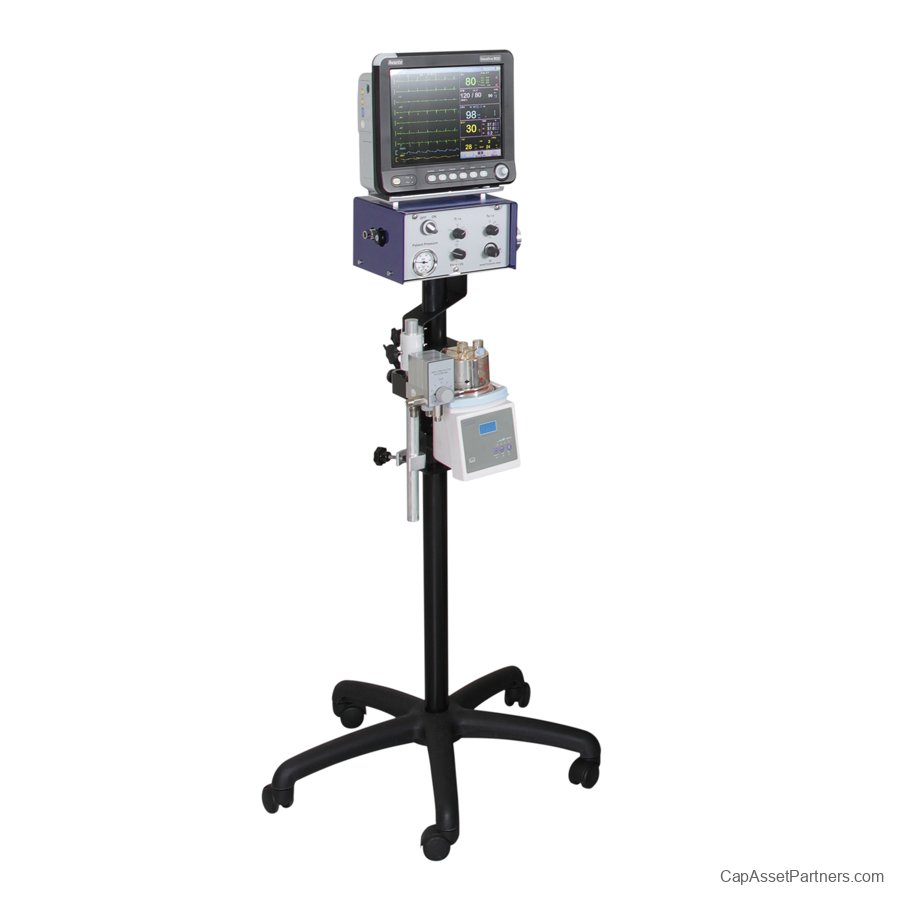

The Avante Respiratory Support System (RSS) is designed for versatility and ease of use, making it an ideal choice for managing both invasive and non-invasive ventilation in a variety of clinical settings. Whether in an ICU or transitional care area, this integrated mobile system enables healthcare providers to offer vital ventilation support to intubated and masked patients.
The RSS seamlessly connects to existing hospital medical gas infrastructures, utilizing your available air or oxygen sources. This comprehensive system combines proven components tailored to deliver optimal patient care, ensuring that healthcare professionals have the tools they need at their fingertips.

Key Components:

• Avante MVP Ventilator:

• Facilitates both invasive and non-invasive ventilation.

• Pneumatically driven with a pre-set flow rate, which allows for spontaneous breathing.

• Comes with a reusable PEEP valve, patient circuit, and hose, ensuring a complete solution.

• Avante Waveline ECO Patient Monitor:

• Offers exceptional performance in monitoring vital parameters including ECG, NIBP, SPO2, temperature, and respiration.

• Features a high-tech, low-power display with options for up to six parameters.

• Long-life battery backup and multilingual support make it user-friendly and reliable.

• Avante PH300 Humidifier:

• Provides warm, humidified air and oxygen tailored for ventilator use.

• Features adjustable temperature control for enhanced patient comfort.

• Versatile with options for 110 or 220 volts.

• Avante High-Low Flow Oxygen Blender:

• Efficiently blends medical grade compressed air and oxygen.

• Offers a customizable oxygen concentration range from 21% to 100%, ensuring the right mix for every patient.

With the Avante Respiratory Support System, healthcare facilities can enhance their respiratory care offerings, ensuring a higher standard of patient support and comfort. Discover the seamless integration of advanced technology and reliable performance for your ventilation needs.

Avante Respiratory Support System Specifications

• Model: Avante Respiratory Support System

• Ventilation Modes:

• Volume-Controlled Ventilation (VCV)

• Pressure-Controlled Ventilation (PCV)

• Continuous Positive Airway Pressure (CPAP)

• Bi-level Positive Airway Pressure (BiPAP)

• Tidal Volume (TV) Range:

• Imperial: 50 to 1,200 mL

• Metric: 50 to 1,200 mL

• Respiratory Rate (RR) Range:

• Imperial: 1 to 60 breaths per minute

• Metric: 1 to 60 breaths per minute

• Positive End-Expiratory Pressure (PEEP) Range:

• Imperial: 0 to 20 cm H2O

• Metric: 0 to 20 cm H2O

• Inspiratory Pressure (IPAP):

• Imperial: 5 to 30 cm H2O

• Metric: 5 to 30 cm H2O

• Expiratory Pressure (EPAP):

• Imperial: 0 to 25 cm H2O

• Metric: 0 to 25 cm H2O

• Oxygen Concentration:

• Imperial: 21% to 100%

• Metric: 21% to 100%

• Power Requirements:

• Voltage: 100-240 VAC

• Frequency: 50/60 Hz

• Dimensions:

• Imperial: 20 x 12 x 8 in

• Metric: 51 x 30.5 x 20.3 cm

• Weight:

• Imperial: 25 lbs

• Metric: 11.34 kg

• Recommended Patient Population:

• Neonatal to adult patients

• Safety Standards:

• Compliant with ISO and IEC standards

• Data Logging:

• Capable of storing patient data for review

• Interface:

• Touchscreen display with user-friendly navigation

• Modes of Alarms:

• Visual and audible alarms for ventilation parameters and system malfunctions

• Battery Backup:

• Duration: Minimum 2 hours

• Connectivity Options:

• USB, Ethernet for data transfer

Please check with the manufacturer or official resources for the most current and specific information regarding the Avante Respiratory Support System.
