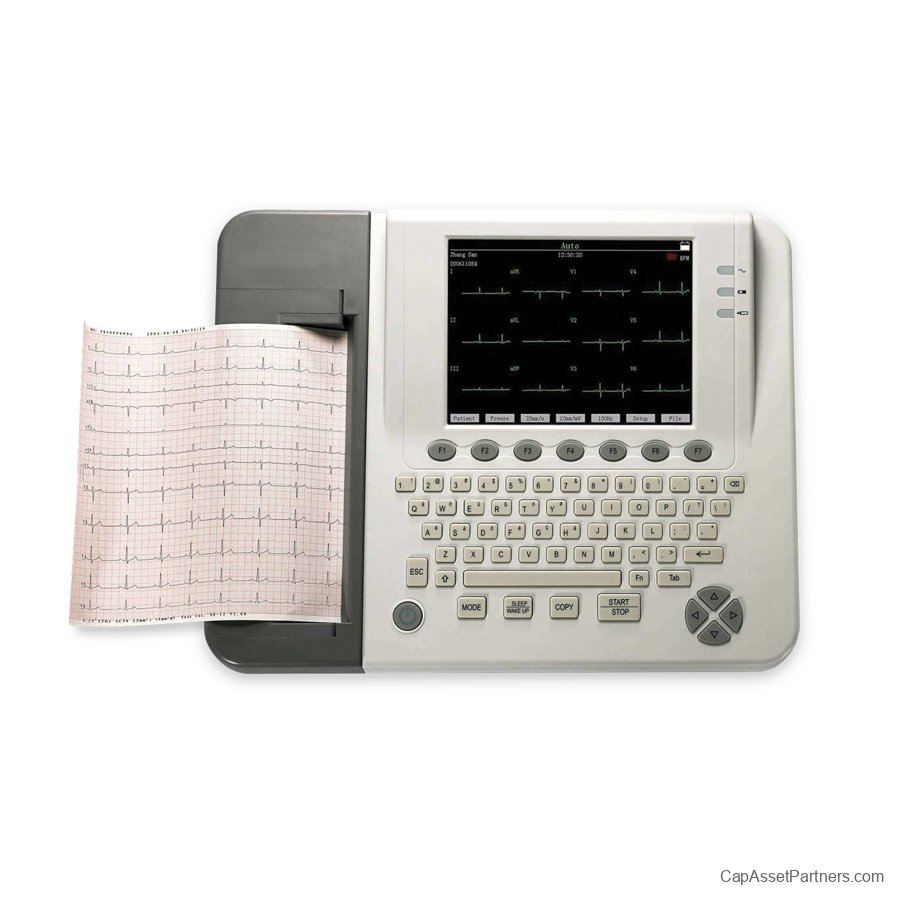

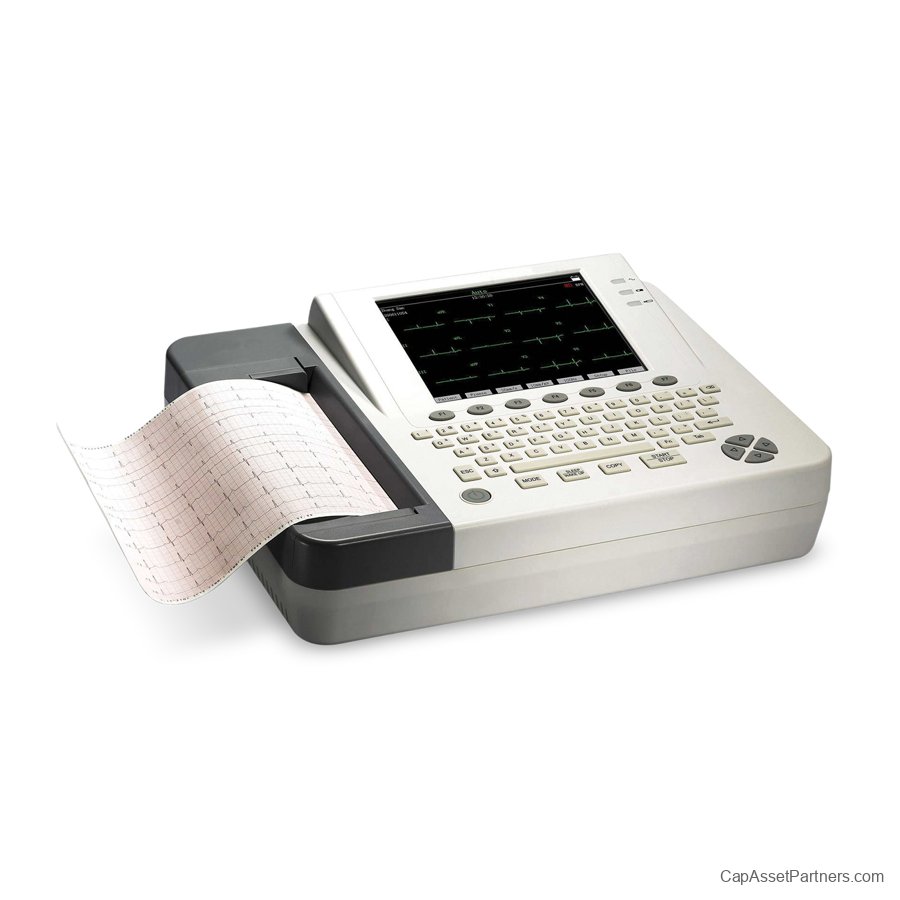

Avante True 12T Twelve-Channel EKG Machine with Touch Screen

Avante True 12T Twelve-Channel EKG Machine with Touch Screen
Experience excellent cost performance with the Avante True 12T EKG machine, designed for precision and ease of use in clinical settings. This advanced twelve-channel electrocardiogram (EKG) device features a large 8.4" color touch-screen, ensuring intuitive navigation and clear monitoring of cardiovascular health.
Key features include:

• Real-Time EKG Printing and Storage: Preview reports seamlessly while printing or storing data, allowing for quick analysis and follow-up.

• Accurate Interpretation: The device utilizes an average template waveform with an interpretation verified through the CSE DATABASE, enabling precise measurements, diagnoses, and Minnesota code assessments.

• Customizable Printing Options: Doctors can modify the printing style, speed, sensitivity, and filters to optimize waveform clarity, reducing the necessity for repeated patient examinations.

• Waveform Review: Users can freeze and review waveforms on the spot, ensuring thorough identification of arrhythmias.

• Internal Storage: With the capacity to store 200 tests, this EKG machine also allows expansion through external flash drives or PC hard disk connections.

• Digital Interference Filters: Enjoy reliable readings with built-in digital filters that resist baseline drift, AC noise, and EMG interference.

• Energy Efficient Design: The standby mode contributes to efficient energy use while the built-in rechargeable Li-ion battery offers up to 5 hours of operation, supporting up to 400 reports.

• Connectivity Options: Equipped with Ethernet and RS-232 interfaces for easy PC connection, along with a USB port for data transmission and external jet-printer integration.

• Compact and Portable: The lightweight design, complete with a carrying handle, ensures this machine can be transported effortlessly within any healthcare environment.

The Avante True 12T EKG machine combines cutting-edge technology with user-friendly features, making it an essential tool for accurate cardiovascular assessment. Enhance your practice today with this reliable and efficient EKG solution.

Avante True 12T Twelve-Channel EKG Machine with Touch Screen Specifications:

General:

• Input Circuit: Defibrillation protection built-in

• Lead: Standard 12 leads

• Acquisition Mode: 12-channel simultaneous

• A/D Converter: 24 bits

• Input Voltage Range: ±5 mVp-p

• Time Constant: >3.2 seconds

• Frequency Response: 0.05 Hz - 150 Hz

• Calibration Voltage: 1 mV ± 2%

• Sensitivity: 2.5, 5, 10, 20, 10/5, AGC (mm/mV)

• Input Impedance: >50 M? (10 Hz)

• Input Circuit Current: <10 nA

• Noise Level: <12.5 ?Vp-p

• Patient Leakage Current: <10 ?A (220V - 240V)

• Patient Auxiliary Current: <0.1 ?A (DC)

• Filters:

• EMG Filter: 25 Hz / 35 Hz / 45 Hz / OFF

• Anti-Baseline Drift: 0.05 Hz / 0.15 Hz / 0.25 Hz / 0.5 Hz

• Low-Pass Filter: 150 Hz / 100 Hz / 75 Hz

• AC Filter: 50 Hz / 60 Hz

• CMRR: >121 dB

• Recording Modes: Auto/manual/rhythm

• Rhythm Lead: Single lead or three leads selectable

• Safety Standard: IEC I/CF

• Power Supply: AC 100-240V, 50/60 Hz

• Battery: Built-in rechargeable Li-ion, 14.4V for approximately 400 ECG prints

• Recorder: Thermal printer

• Recording Paper: Roll and z-fold, 216 mm and 210 mm width

• Recording Speed: 5 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s (±3%)

• Dimensions: 420 mm x 330 mm x 120 mm (16.5 in x 13 in x 4.7 in)

• Display: 800 x 600 dots LCD

• External Input: >100 K?, sensitivity 10 mm/V ± 5%

• External Output: Yes

• Communication Interface: Ethernet or RS232
