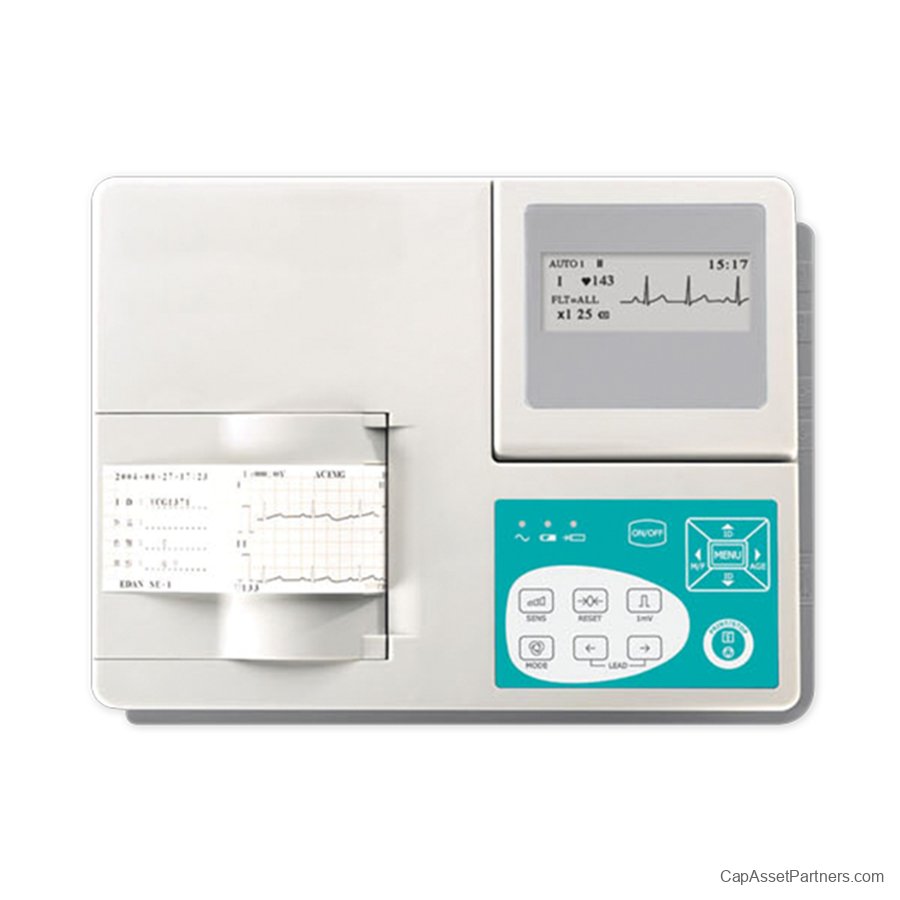

Avante True ECG-1 Single Channel ECG/EKG

Do you have a Avante True ECG-1 Single Channel ECG/EKG you want to sell?

We buy used equipment! Learn about selling

Manufactured by: Avante

Category: EKG Machines

Avante Avante True ECG-1 Single Channel ECG/EKG
Avante True ECG-1 Single Channel ECG/EKG
The Avante True ECG-1 is a reliable and efficient one-channel ECG/EKG machine designed to meet the needs of modern medical facilities. Combining portability and affordability, this device is perfect for healthcare professionals seeking to provide accurate cardiac assessments.

Key Features:


  • High-Resolution Thermal Printer: Easily capture and print clear ECG results on-demand, allowing for quick review and patient assessment.

  • Rechargeable Power Options: Equipped with a built-in rechargeable Li-ion battery, the ECG-1 ensures uninterrupted operation with both AC and DC power supply options.

  • Advanced Digital Filtering: The ECG/EKG utilizes sophisticated digital filtering technology, significantly reducing baseline drift and minimizing interference from AC and EMG signals. This feature enhances the reliability of the readings, promoting effective patient monitoring.

  • Flexible Operation Modes: With both auto and manual work modes, the Avante True ECG-1 offers flexibility for various clinical scenarios, making it user-friendly and adaptable to diverse workflow requirements.

The Avante True ECG-1 is an essential tool for medical professionals who value portability and precision in cardiac monitoring. Its innovative features make it a standout choice for efficient ECG diagnostics in any healthcare setting.

General



    • Input Circuit: Defibrillator protection built-in

    • Lead Standard: 12 leads

    • Acquisition Mode: Single lead

    • A/D Converter: 12 bits

    • Measurement Range: ±5 mVpp

    • Time Constant: > 3.2 s

    • Frequency Response: 0.05 Hz ~ 150 Hz

    • Calibration Voltage: 1 mV ± 3%

    • Sensitivity: 2.5, 5, 10, 20 mm/mV

    • Input Impedance: > 10 M?

    • Input Circuit Current: Not specified

    • Noise Level: Not specified

    • Anti-Baseline Drift: Auto

    • Patient Leakage Current: Not specified

    • Patient Auxiliary Current: Not specified

  • Filter:

      • EMG Filter: 35 Hz (-3 dB)

      • AC Filter: 50 Hz / 60 Hz (-20 dB)



    • CMRR: >90 dB

    • Weight: 2.3 kg (5.07 lbs) with battery

    • Display: 192 × 64 pixels LCD

  • Recording Mode:

      • Auto: 1 CH, 1 CH + 1R

      • Manual: 1 CH



    • Rhythm Lead: Any lead selectable

  • Power Supply:

      • AC: 100V-115V / 220V-240V, 50/60 Hz

      • Built-in rechargeable Li-ion battery: Voltage = 14.4 V



    • Battery Life: More than 3 hours continuous operation

    • Recorder: Thermal printer

    • Record Paper: 500 mm × 30 m (19.7 in × 98.4 ft)

    • Paper Speed: 25 mm/s, 50 mm/s (± 3%)

    • Dimension: 288 mm × 210 mm × 70 mm (11.3 in × 8.3 in × 2.8 in)

  • External Input/Output:

      • Input: >100 k?; Sensitivity: 10 mm/V ± 5%

      • Output: Not specified



    • Communication Interface: RS232
