Avante True ECG Advance 12-Channel ECG/EKG and Stress Testing System

Avante True ECG Advance 12-Channel ECG/EKG and Stress Testing System

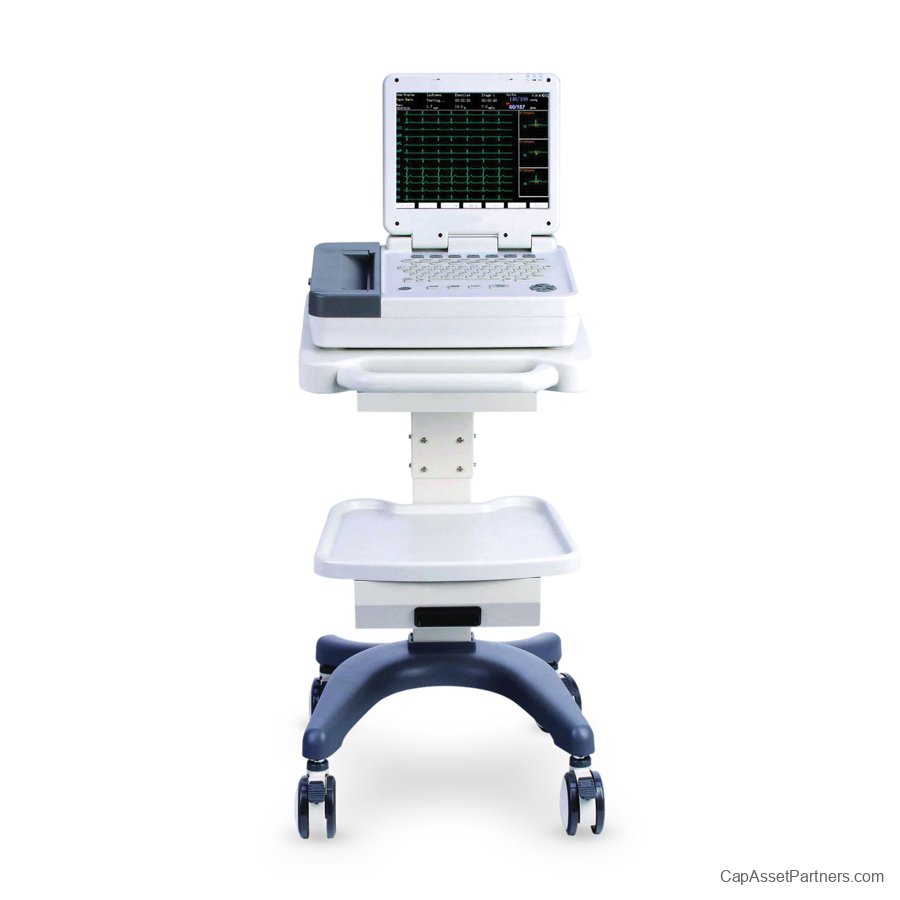

The Avante True ECG Advance 12-Channel ECG/EKG and Stress Testing System is designed to provide healthcare professionals with advanced cardiac diagnostic capabilities in a user-friendly format. Equipped with a vibrant 12.1" color touch-screen, this system simplifies the process of monitoring and interpreting electrocardiograms with its intuitive interface and one-touch operation.
Key features include:

• Automatic Measurement and Interpretation: Benefit from state-of-the-art analysis backed by the authoritative CSE database, ensuring accurate results with every use.

• Real-time Waveform Freezing: Capture and freeze waveforms in real-time for meticulous review, allowing for detailed evaluations.

• Comprehensive ECG Review: Access and analyze 120 seconds of ECG waveform data to enhance diagnostic accuracy.

• Automatic Arrhythmia Detection: Quickly identify and document arrhythmias with built-in detection system.

• Robust Memory: Store up to 200 ECGs in internal memory, facilitating easy recall and analysis of patient data.

• Heart Rate Variability (HRV) Analysis: Gain insights into patient cardiovascular health through comprehensive HRV assessments.

The Avante True ECG system also offers a host of useful tools to optimize functionality:

• Preview and Printing Capabilities: Effortlessly preview and generate reports for both immediate printing and file storage to streamline workflow.

• Customizable Printing Options: Tailor the printing style, speed, sensitivity, and filter settings to produce optimal waveforms, reducing the need for repeated examinations.

• Data Management: Enhance file storage and searching capabilities with patient data integration, including waveforms, measurements, and diagnoses, expandable via flash drive or PC hard disk.

Optional Enhancements:

• PC-Based Data Management Software: Enhance your ECG data handling with the Smart ECG Viewer, designed for efficient data management.

• Add-On Accessories: The system is compatible with customizable trolleys and cable brackets to improve organization and user convenience.

Stress Testing Upgrade (Optional):

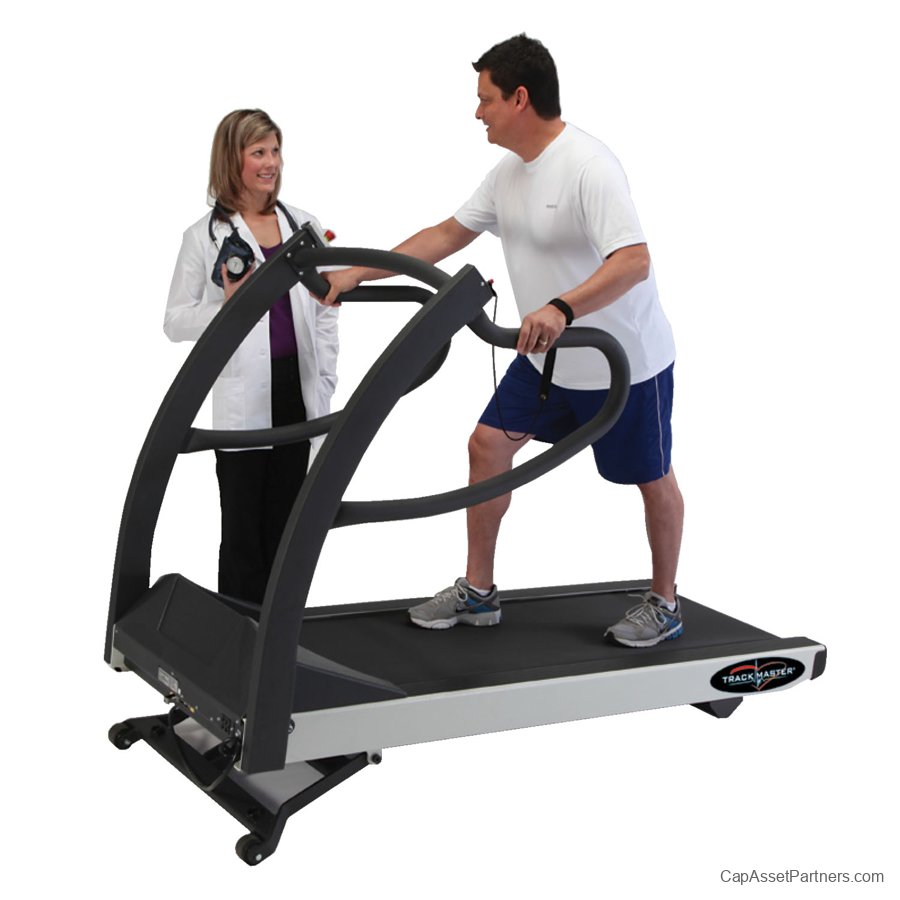

Transform your system with support for treadmills or bicycles, and the Suntech tango+ exercise blood pressure monitor. The stress testing upgrade includes features such as customized exercise protocols, along with detailed ST analysis and reporting to aid in comprehensive patient assessment.
The Avante True ECG Advance 12-Channel ECG/EKG and Stress Testing System is the perfect solution for healthcare settings seeking a reliable, advanced, and efficient method for cardiac evaluation. Discover precision in every heartbeat with this cutting-edge medical equipment.

Avante True ECG Advance 12-Channel ECG/EKG and Stress Testing System Specifications

General

• Input Circuit: Defibrillation protection built-in

• Lead Standard: 12 leads

• Acquisition Mode: Simultaneous 12-lead acquisition (10-24 seconds adjustable)

• A/D Converter: 24 bits

• Input Voltage Range: ±5 mVpp

• Time Constant: >3.2 s

• Frequency Response: 0.05 Hz - 150 Hz

• Calibration Voltage: 1 mV ± 2%

• Sensitivity: 2.5, 5, 10, 20, 10/5.AGC (mm/mV)

• Input Impedance: 50 M? (10 Hz)

• Input Circuit Current: <10 nA

• Noise Level: <12.5 ?A Vp-p

• Anti Baseline Drift: Automatic

• Patient Leakage Current: <10 ?A (220V-240V)

• Patient Auxiliary Current: <0.1 ?A (DC)

• Filter:

• EMG Filter: 25 Hz / 35 Hz / 45 Hz / OFF

• DFT Filter: 0.05 Hz / 0.15 Hz / 0.25 Hz / 0.5 Hz / 0.32 Hz / 0.67 Hz

• Lowpass Filter: 150 Hz / 100 Hz / 75 Hz, AC Filter: 50 Hz / 60 Hz

• CMRR: >115 dB

• Recording Mode: Auto/Manual/Rhythm/R-R Analyze

• Rhythm Lead: Single lead or three leads selectable

• Power Supply: AC: 100V-240V, 50/60 Hz

• Battery: Built-in rechargeable Li-ion battery

• Voltage: 14.4 V, for about 400 copies ECG printing

• Recorder: Thermal paper

• Record Paper: Fled paper, rolled paper

• Paper Width: 216 mm, 210 mm

• Record Speed: 5 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s (±3%)

• Dimensions: 16.54 in × 12.99 in × 4.72 in (420 mm × 330 mm × 120 mm)

• Display: 800 × 600 multicolor LCD

• External Input/Output: Input > 100 K?: Sensitivity 10 mm/V ± 5%, Output

• Communication Ports: Ethernet, RS232
