Avante True ECG Plus Six-channel EKG Machine

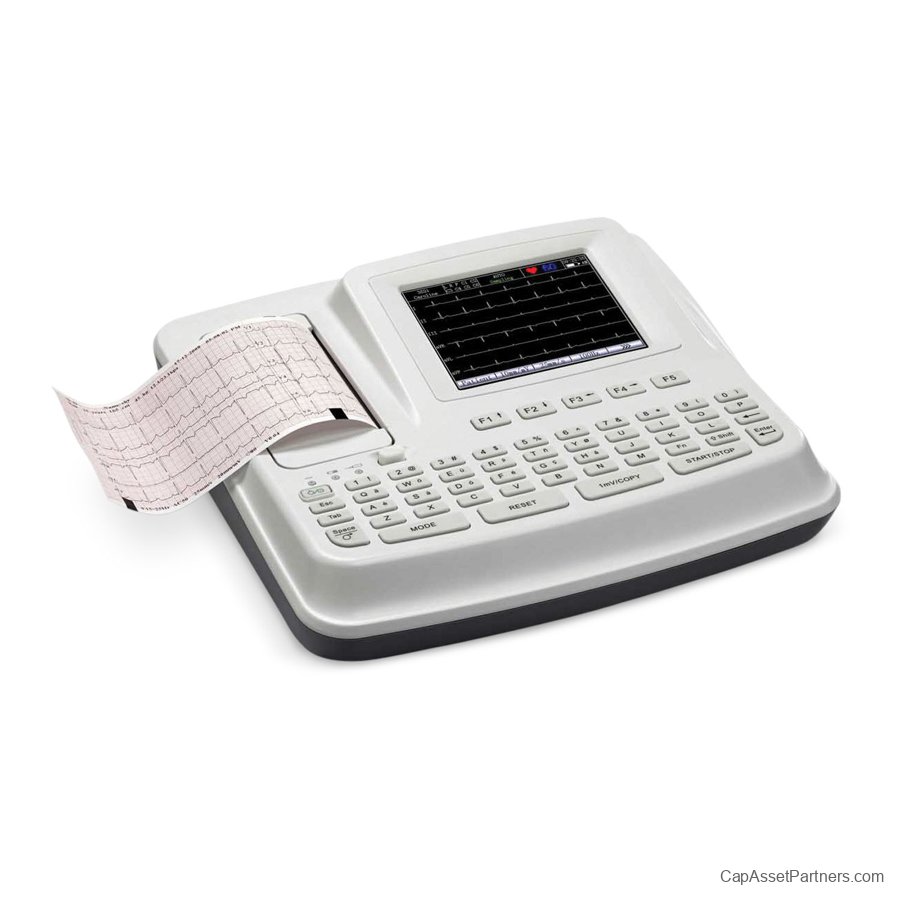

Avante True ECG Plus Six-Channel EKG Machine
Discover the Avante True ECG Plus, an exceptional six-channel EKG machine designed for efficiency and ease of use in a variety of healthcare settings, including hospitals, family practices, and emergency response units. This cost-effective device combines portability with advanced features, making it a valuable addition to any medical environment.

Key Features

• Portable and Lightweight: Its convenient design allows for easy transport, making it perfect for mobile use or for facilities with limited space.

• User-Friendly Operation: The alphanumeric keyboard and intuitive one-touch operation ensure quick and straightforward data input, enhancing workflow efficiency.

• Versatile Power Options: Equipped with a built-in rechargeable battery and AC/DC power supply, this machine provides reliable operation wherever it's needed.

• Pacemaker Detection: Complies with ANSI/AAMI EC11 standards, allowing for effective monitoring of patients with pacemakers.

• Comprehensive EKG/ECG Interpretation: Offers automatic measurement and interpretation for both adults and pediatric patients.

• Periodic Recording Capabilities: Features a two-step exercise test with periodic recording to monitor patient progress effectively.

• Heart Rate Variability Analysis: Provides detailed insights into heart function for improved patient care.

• Recording Options: Includes an internal thermal printer and the ability to connect to an external printer for convenient documentation.

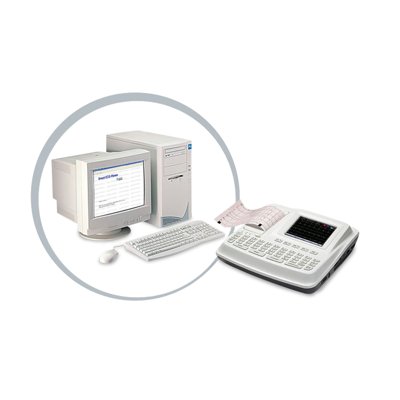

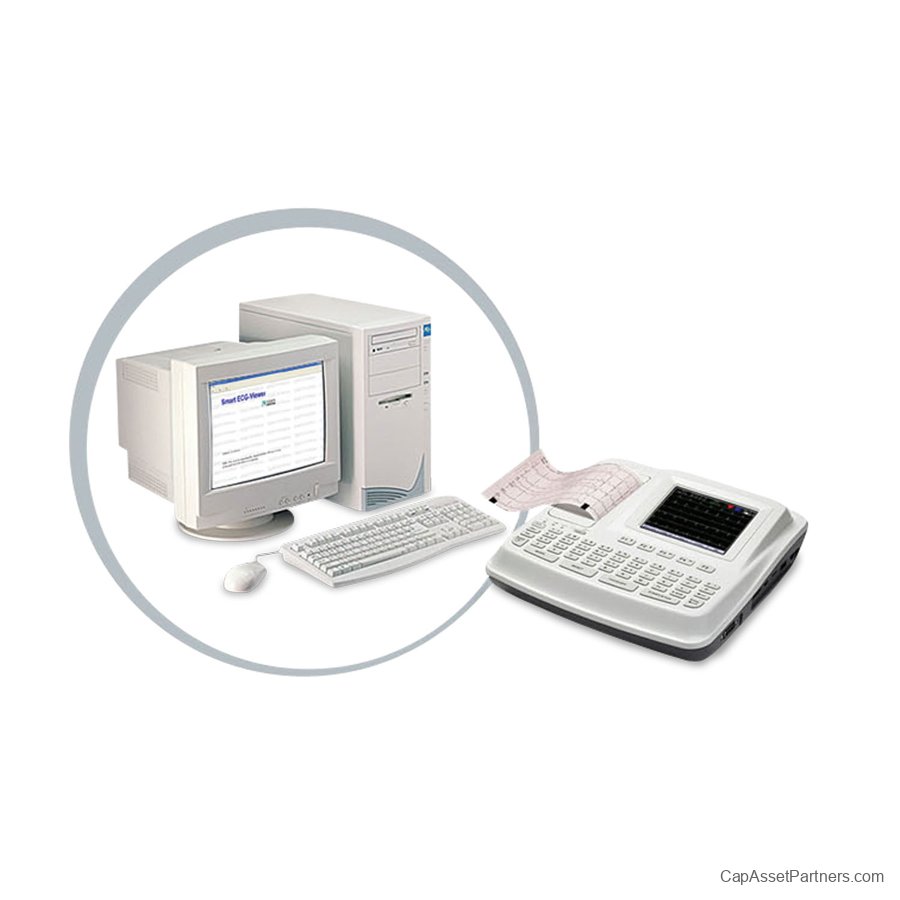

• Memory and Data Transmission: Supports data storage with an SD card, card reader, and flash drive (not included), along with data transmission to a PC via Ethernet or RS232 port.

The Avante True ECG Plus Six-Channel EKG Machine is a reliable tool for accurate heart monitoring and analysis, making it an ideal choice for healthcare professionals seeking efficiency and precision in their diagnostic equipment.

Avante True ECG Plus Six-channel EKG Machine Specifications:

General:

• Input circuit: Defibrillation protection

• Lead: Standard 12 leads

• Acquisition mode: 12-channel simultaneous (10-24 seconds adjustable)

• A/D converter: 24 bits

• Sampling rate: 1000 Hz/channel, 10,000 Hz for pacemaker detection

• Input voltage range: ±5 mVp-p

• Time constant: >3.2 seconds

• Frequency response: 0.05 Hz - 150 Hz

• Calibration voltage: 1 mV ± 2%

• Sensitivity: 2.5, 5, 10, 20, 10/5, AGC (mm/mV)

• Input impedance: >50 M?

• Input circuit current: < 10 nA

• Noise level: < 12.5 µVp-p

• Patient leakage current: < 10 µVp-p (220V-240V)

• Patient auxiliary current: < 0.1 µA (DC)

• Filters:

• EMG filter: 25 Hz / 35 Hz / 45 Hz / OFF

• Anti-baseline drift: 0.05 Hz / 0.15 Hz / 0.25 Hz / 0.5 Hz

• Low-pass filter: 75 Hz / 100 Hz / 150 Hz

• AC filter: 50 Hz / 60 Hz

Additional Features:

• CMRR: >115 dB

• Recording modes: Auto / manual / rhythm

• Rhythm lead: Single channel or three channels selectable

• Power supply: AC (100-240V @ 50/60 Hz), 12V Vehicle-Carried Inverter

• Battery: Built-in rechargeable Li-ion battery 2200 mAh @ 14.8 V for 6 hours of general use or 280 copies of EKG/ECGs continuous printing

• Recorder: Thermal printer

• Recording paper: 110 mm x 140 mm x 144P (Z-fold)

• Recording speed: 5 mm/s, 6.25 mm/s, 10 mm/s (±3%), 12.5 mm/s, 25 mm/s, 50 mm/s (±3%)

• Weight: Approximately 3 kg (6.6 lbs) including battery and paper

• Dimensions: 12.68 in x 12.2 in x 3.98 in (322 mm x 310 mm x 101 mm)

• Display: 5.7" TFT color LCD, 640 x 480 dots

• External input: 100 K?, sensitivity 10 mm/V ± 5%

• External output: 100 ?, sensitivity 1 V/mV ± 5%

• Communication interfaces: Ethernet or RS232
