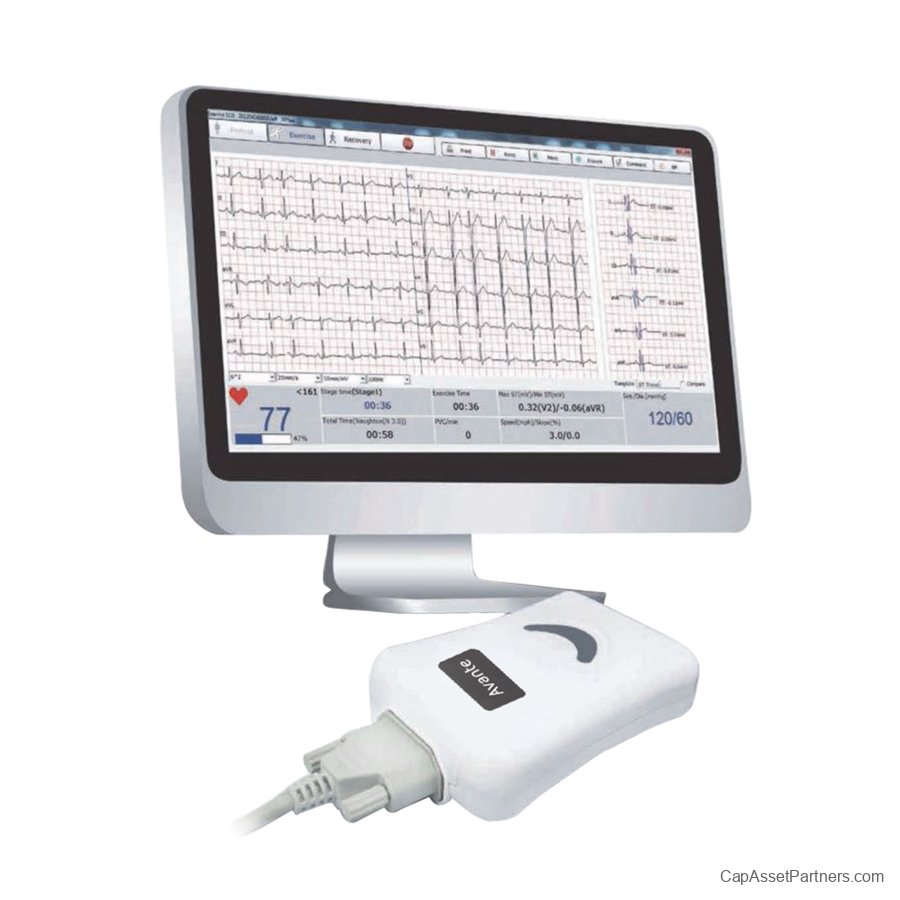

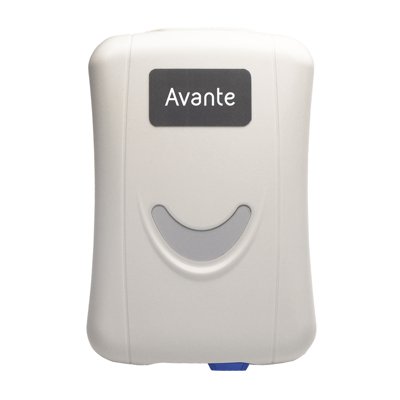

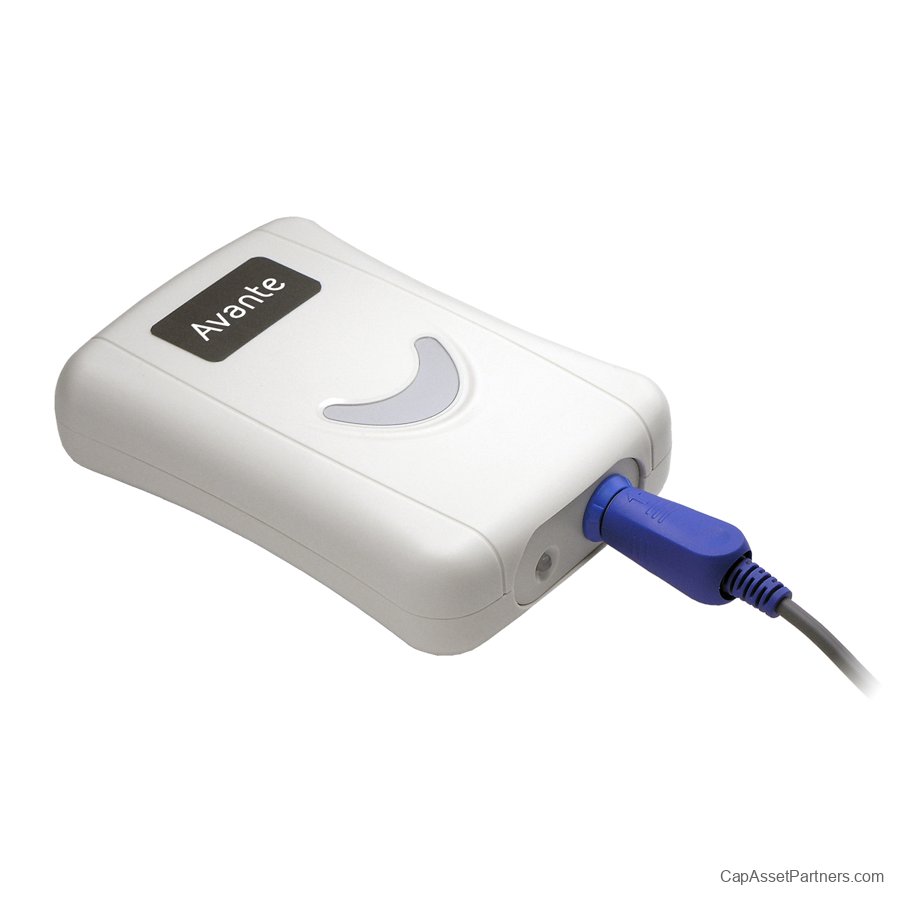

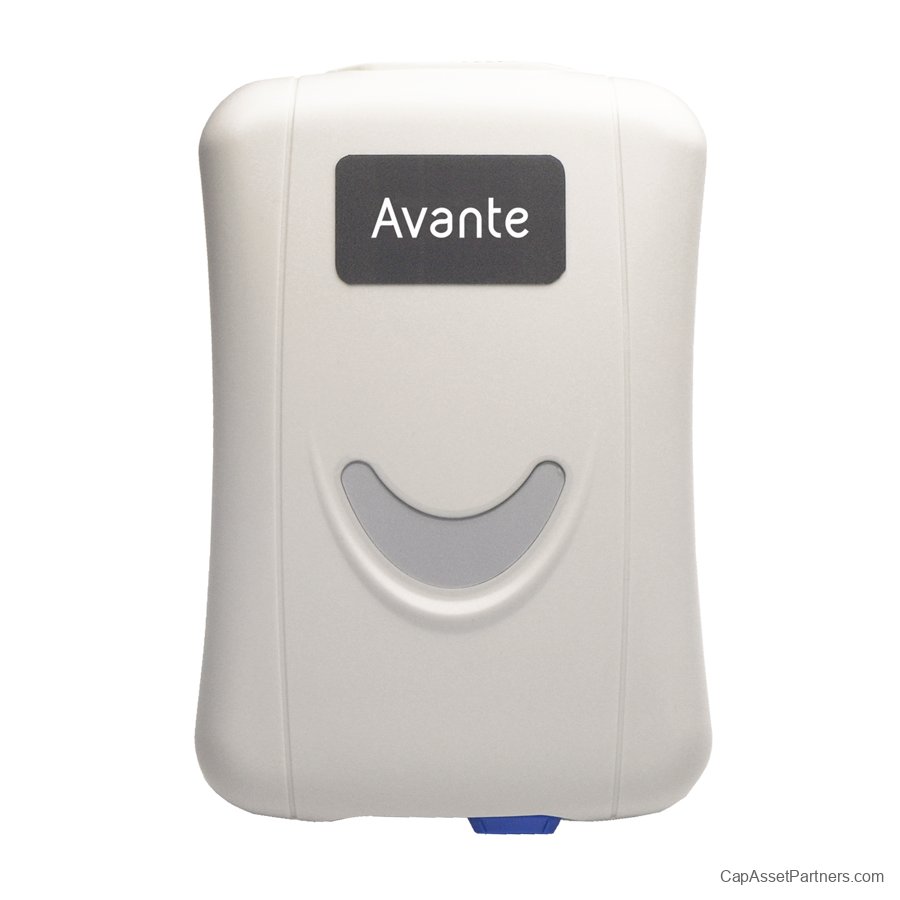

Avante Velocity EKG 12-Channel PC-Based EKG: Your Comprehensive EKG Solution
The Avante Velocity EKG is an innovative, all-in-one 12-channel PC-based electrocardiogram system designed to enhance the efficiency of clinical workflows. Perfect for both resting ECG and stress test measurements, this affordable solution empowers clinicians with high-quality waveform acquisition and robust analysis tools.
Key Features:
  • 12-Channel ECG Acquisition: Experience clear and reliable ECG waveform acquisition, rigorously tested with the CSE, MIT, and AHA databases to ensure accuracy and dependability.

  • Comprehensive Analysis Capabilities: The advanced Velocity software allows for in-depth analysis of optional parameters, including Vector ECG, Timed VCG, Signal Average Electrocardiogram (SAECG), Heart Rate Turbulence (HRT), QT Interval Dispersion, High Frequency ECG, and Frequency Spectrum Cardiogram.

  • Seamless Stress Testing: Compatible with leading brands of treadmills and exercise bicycles, the Avante Velocity EKG supports a variety of exercise blood pressure monitors for comprehensive stress testing. Please note that treadmills and monitors are sold separately.

  • User-Friendly Interface: Enjoy real-time EKG waveform display on your PC screen, alongside auto/manual measurement and interpretation capabilities for a streamlined user experience.

  • Enhanced Data Management: With large data storage and powerful management software, generating reports in Word, PDF, and JPG formats is effortless. Easily transfer results via email for convenient sharing among healthcare professionals.

  • Heart Rate Variability (HRV) Analysis: Benefit from 30 to 360 seconds of HRV analysis, providing additional insights into cardiac health.

The Avante Velocity EKG is an essential tool for any medical facility looking to improve cardiac assessment and streamline workflows with a reliable, efficient ECG solution.
Avante Velocity EKG 12-Channel PC-Based EKG Specifications

Physical Weight & Dimensions
  • Height: 1.6 inches (40 mm)
  • Width: 3.9 inches (100 mm)
  • Depth: 1.6 inches (40 mm)
  • Weight Approx.: 0.46 lbs (210 g)

General
  • Connection to PC: USB port
  • Power Supply: DC 5V from USB port
  • Input Circuit: Defibrillation protection built-in
  • Lead: Standard 12 leads
  • Acquisition Mode: 12 leads simultaneously
  • Sampling Rate: 1000 Hz
  • A/D Converter: 12 bits
  • Input Voltage Range: ±5 mVpp
  • Time Constant: > 3.2 s
  • Frequency Response: 0.05 Hz ~ 150 Hz
  • Calibration Voltage: 1 mV ± 2%
  • Sensitivity: 2.5, 5, 10, 20 mm/mV
  • Input Impedance: 50 M? (10 Hz)
  • Input Circuit Current: < 50 nA
  • Noise Level: < 15 µVp-p
  • Baseline Drift Filter: Baseline forward and backward filter (patent pending)
  • Patient Leakage Current: < 10 µA (220V - 240V)
  • Patient Auxiliary Current: < 0.1 µA (DC)
  • Filters:
  • EMG Filter: 25 Hz / 35 Hz / 45 Hz / Off
  • Baseline Drift Filter (patent pending): Strong / Weak / Off
  • Lowpass Filter: 150 Hz / 100 Hz / 75 Hz
  • AC Filter: 50 Hz / 60 Hz
  • CMRR: > 110 dB
  • Rhythm Lead: Single lead or three leads selectable
  • Safety Standard: IEC II/CG

PC Requirements
  • Operating System: Compatible with Windows 8, Windows 10, Windows 7, Windows 2000, or Windows XP
  • CPU: Pentium P4, Celeron D 310 or above
  • RAM: 256 MB or above
  • HDD: 40 GB or above
  • Interface: At least 2 USB ports free
