Avante Vision EX5 Minor Procedure Light

Avante Vision EX5 Minor Procedure Light

• Optimal Performance for Healthcare Settings

The Avante Vision EX5 Minor Procedure Light is meticulously designed for efficient lighting in a variety of minor surgical procedures. This midsize LED surgery light combines functionality with economic advantages, making it a perfect choice for modern healthcare facilities.
With customizable mounting options, the Avante Vision EX5 seamlessly adapts to your specific needs, ensuring that you have the best lighting setup for any procedure. Controlled via an autoclavable handle, positioning and brightness adjustments are effortless, allowing clinicians to focus on what matters most – patient care.
Key features of the Avante Vision EX5 include:

• Affordable and versatile design suitable for minor surgeries and other procedures.

• Advanced LED array that provides exceptional sharpness and color accuracy.

• Three-stage dimming capability for precise control of brightness within the surgical field, with a maximum output rating of 75,000 Lux.

• Bright white illumination at 4,300° K, achieving a Color Rendering Index of 97 for true-to-life coloration.

• Durable long-life LEDs rated for an impressive 50,000 hours, ensuring reliability and reduced maintenance costs.

• The low-heat light array enhances comfort by emitting virtually no radiant heat during operations.

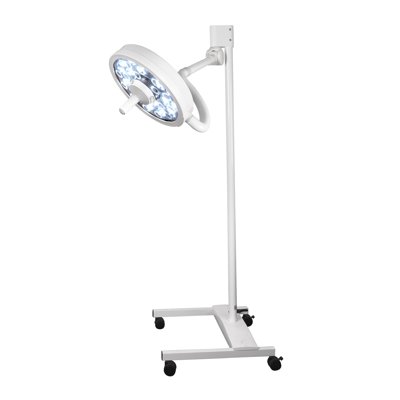

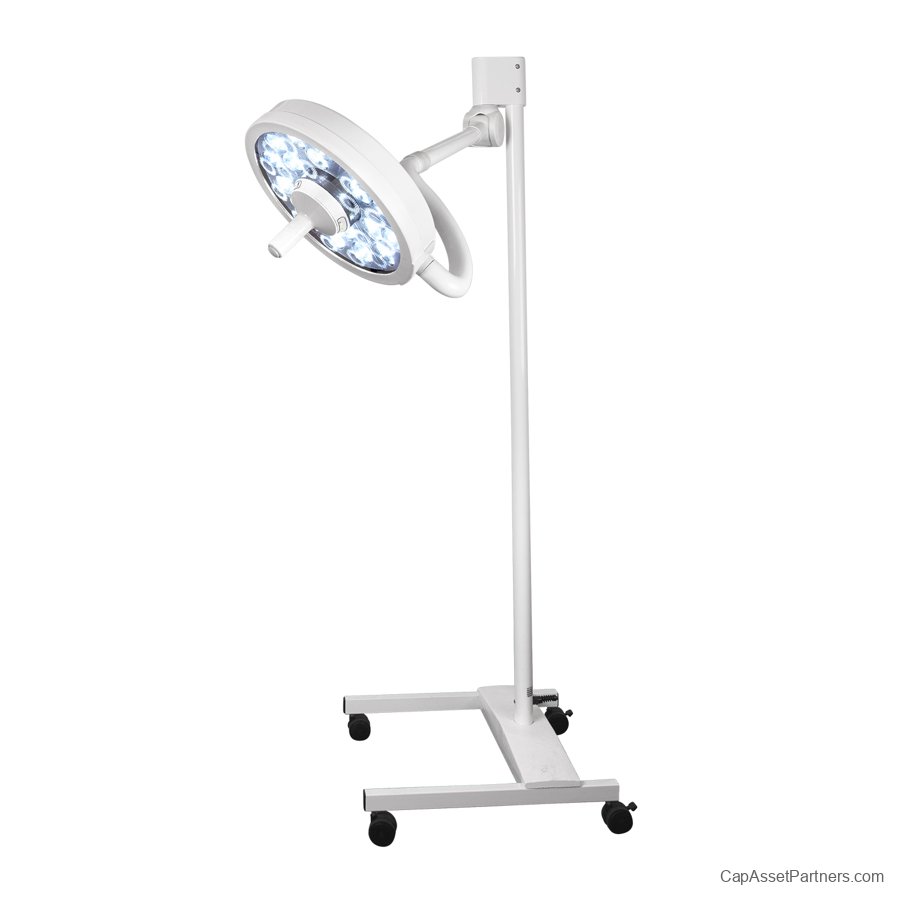

• Options for floor mounting and battery backup support to accommodate diverse environments, plus additional mounting configurations available.

Elevate your medical practice with the Avante Vision EX5, where superior illumination meets efficiency and comfort. Discover how this minor procedure light can enhance your surgical experience today!

Avante Vision EX5 Minor Procedure Light Specifications

Optical Specifications

• Number of LEDs: 18

• Output: 75,000 Lux @ 39.4 in (1 m)

• Color Temperature (CCT): 4,300° K

• Color Rendering Index (CRI): 97

• Focal Length: 39.4 in (1 m)

• Dimming Levels: 3

• Dimming Percentages: 100%, 75%, 50%

• Endo Mode: No

• Light Field (d10): ? Ø7.7 in (Ø196 mm)

• Light Field (d50): ? Ø4.3 in (Ø110 mm)

• Depth of Illumination: 26.5 in (673 mm)

• Illuminance (one mask): 0.003%

• Illuminance (two masks): 34.5%

• Illuminance (tube with one mask): 0.003%

• Illuminance (tube with two masks): 35.5%

• Irradiance: 196 W/m²

Electrical Specifications

• Supply Circuit: 100 - 240 VAC, 50/60 Hz

• Fuse Rating: 1.5 Amp / 250 VAC

• Power Supply: 65W

• Light Head Power Consumption: 27W @ 24 VDC

Mechanical Specifications

• Light Head Weight: 9.0 lbs (4.1 kg)

• Light Head Dimensions: Ø14.5 in (368 mm) | 3.25 in H (83.3 mm)

• Arm Assembly Weight (Single): 48.3 lbs (22.0 kg)

• Arm Assembly Weight (Dual): 77.1 lbs (35.0 kg)

• Articulating Arm Vertical Movement: +15° Up, -60° Down

• Articulating Arm Horizontal Movement: ? 540°

• Articulating Arm/Yoke Interface: ? 540°

• Yoke/Light Head Interface: ? 300°

Environmental Specifications

• Ambient/Operating Temperature: 41°F to 104°F (5°C to 40°C)

• Storage Temperature: -4°F to 122°F (-20°C to 50°C)

• Humidity: 10 - 90% Relative Humidity

• Pressure: 100 kPa (@ < 2 km altitude)
