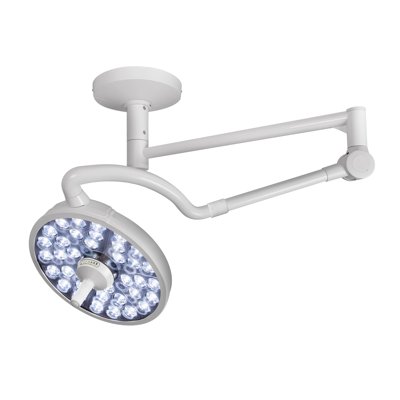

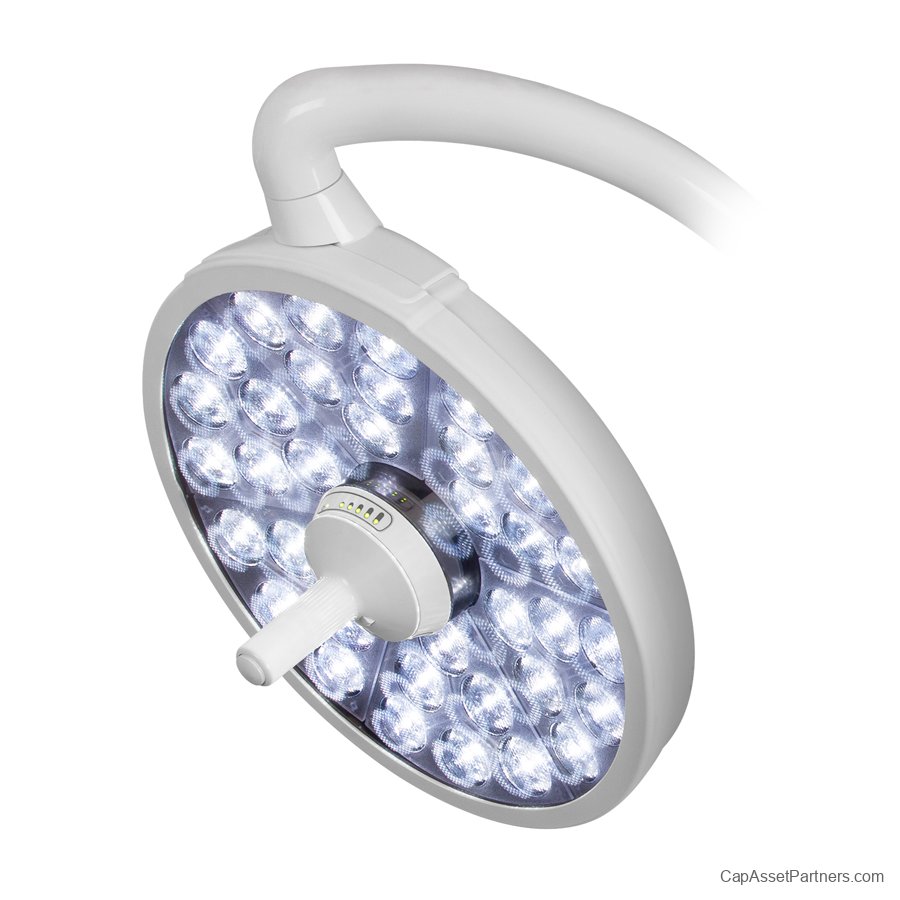

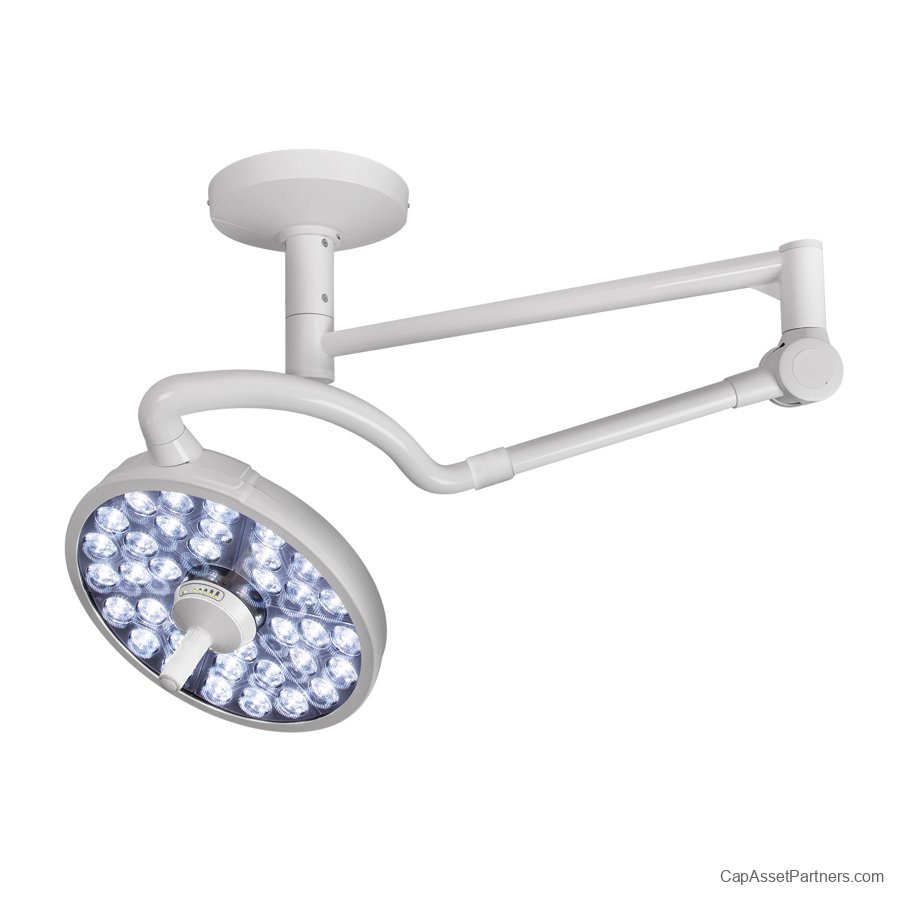

Avante Vision LED Surgery Light

Avante Vision LED Surgery Light: Efficiency Meets Excellence
Elevate your surgical suite with the Avante Vision LED Surgery Light, designed for exceptional performance and flexibility. This advanced lighting system features a large diameter LED array that ensures optimal shadow control and enhances visibility during even the most intricate surgical procedures.
The Avante Vision LED is perfect for expansive operating rooms, providing a maximum output of 100,000 Lux and bright white illumination at 4,300 Kelvin. With a superior Color Rendering Index of 97, it offers true-to-life color representation, crucial for accurate surgical work. The five-stage dimming feature allows for precise brightness adjustments to cater to a variety of surgical settings, ensuring you have the right light intensity for every procedure.
Designed with the comfort of healthcare professionals in mind, the autoclavable handle allows for effortless control of the light's positioning and brightness. Plus, its innovative design emits virtually no radiant heat, keeping clinicians cool and focused even during lengthy surgeries. With long-life LEDs rated for 50,000 hours of operation, you can count on the Avante Vision LED for reliable performance day in and day out.
Available in multiple mounting options, the Avante Vision LED Surgery Light is a versatile choice for any medical facility looking to enhance their surgical capabilities.
Key Features:

• Affordable surgical lighting system with longevity and flexibility

• Exceptional shadow control from a large diameter LED array

• Five-stage dimming for various surgical procedures

• Maximum output of 100,000 Lux for superior illumination

• Bright white light at 4,300 Kelvin with a Color Rendering Index of 97

• Long-life LEDs rated for 50,000 hours

• User-friendly control via autoclavable handle

• Minimal heat emission for clinician comfort

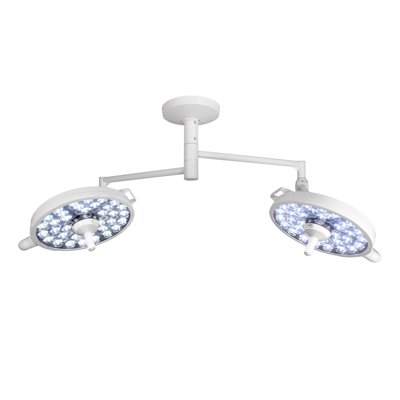

• Various mounting options available for optimal adaptability

Upgrade your surgical lighting experience with the Avante Vision LED Surgery Light, where efficiency meets exceptional care.

Avante Vision LED Surgery Light Specifications

Optical Specifications

• Number of LEDs: 36

• Output: 100,000 Lux @ 39.4 in (1 m)

• CCT: 4,300° K

• CRI: 97

• Focal Length: 39.4 in (1 m)

• Dimming Levels: 5

• Dimming Percentages: 100%, 87%, 75%, 62%, 50%

• Endo Mode: Yes

• Light Field (d10): ? Ø8.3 in (Ø209 mm)

• Light Field (D50): ? Ø4.9 in (Ø124 mm)

• Depth of Illumination: ? 24 in (610 mm)

• Illuminance (One Mask): 27.2%

• Illuminance (Two Masks): 37.2%

• Illuminance (Tube with One Mask): 24.3%

• Illuminance (Tube with Two Masks): 40.3%

• Irradiance: 295 W/m²

Electrical Specifications

• Supply Circuit: 100 - 240 VAC, 50/60Hz

• Fuse Rating: 2.5 Amp / 250 VAC

• Power Supply: 100W

• Light Head Power Consumption: 54W @ 24VDC

Mechanical Specifications

• Light Head Weight: 14.8 lbs (6.7 kg)

• Light Head Dimensions: Ø18 in (Ø457 mm) | 4 in H (102 mm)

• Arm Assembly Weight (Single): 48.3 lbs (22.0 kg)

• Arm Assembly Weight (Dual): 77.1 lbs (35.0 kg)

• Articulating Arm Vertical Movement: +15° Up, -60° Down

• Articulating Arm Horizontal Movement: ? 540°

• Articulating Arm/Yoke Interface: ? 540°

• Yoke/Light Head Interface: ? 300°

Environment Specifications

• Ambient/Operating Temperature: 41°F to 104°F (5°C to 40°C)

• Storage Temperature: -4°F to 122°F (-20°C to 50°C)

• Humidity: 10 - 90% Relative Humidity

• Pressure: 100 kPa (@ <2 km altitude)
