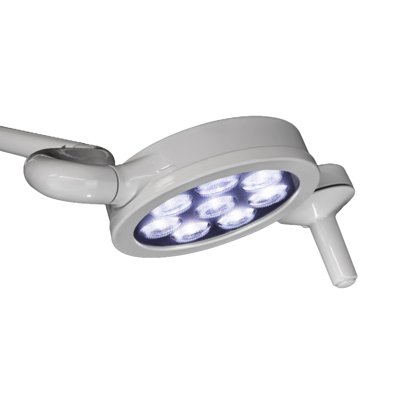

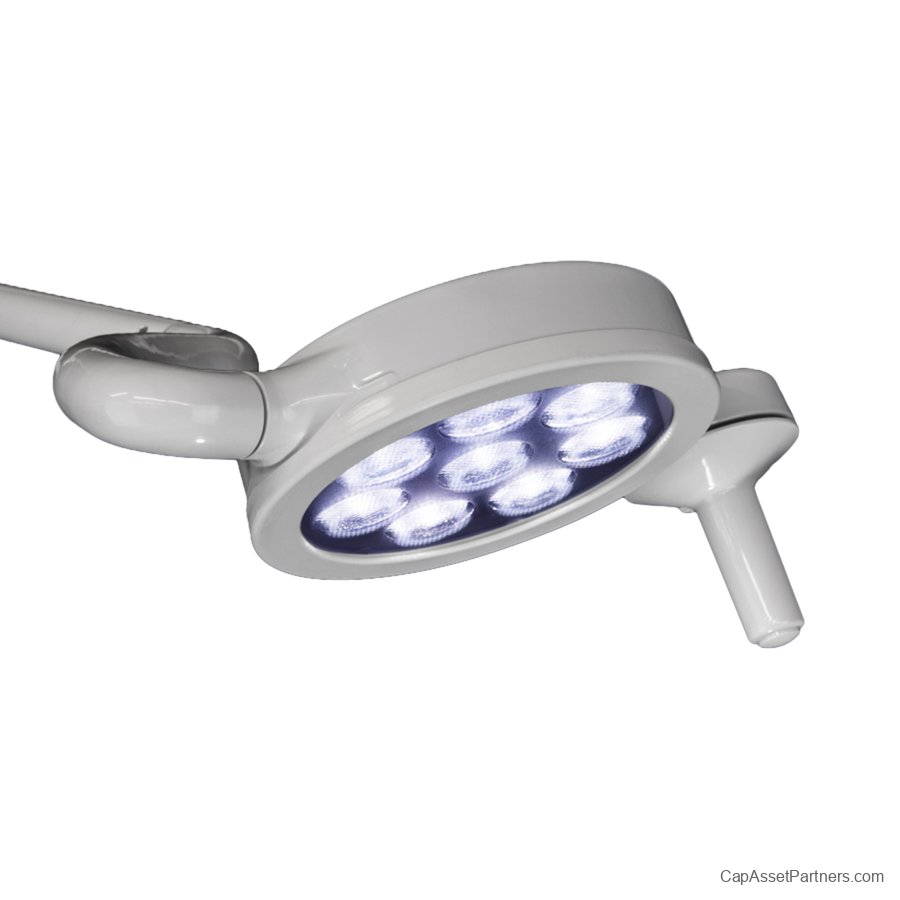

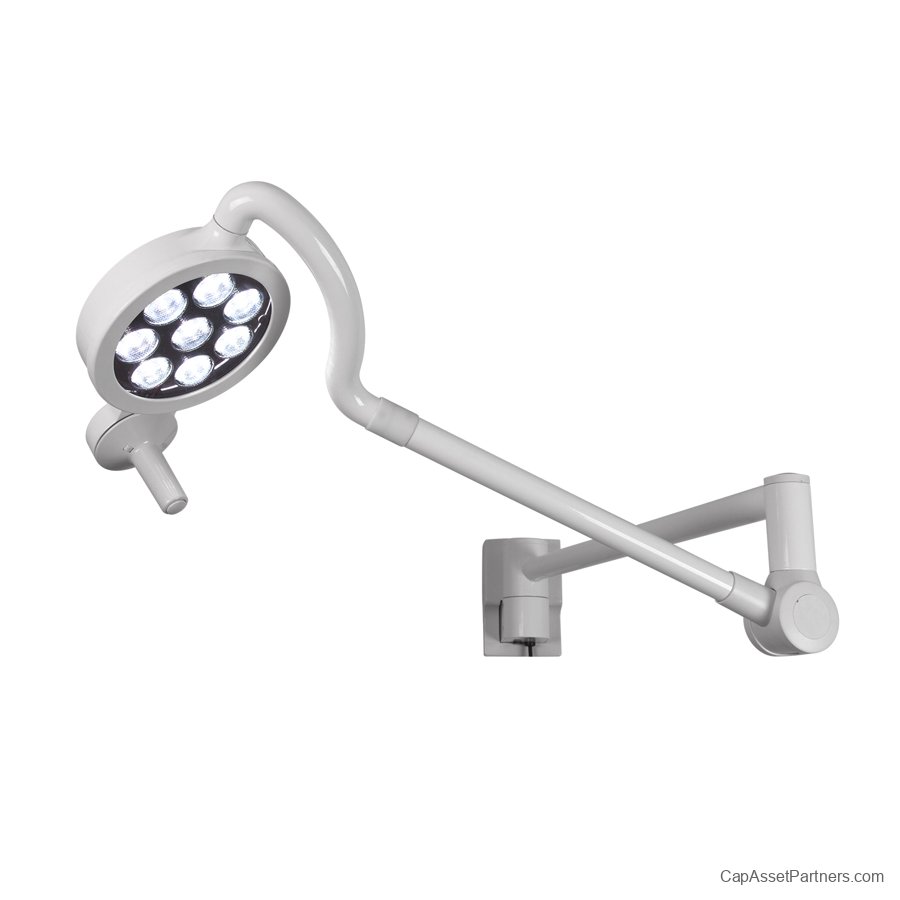

Avante Vista LED Examination Light

Avante Vista LED Examination Light: Exceptional Illumination for Precise Medical Care
The Avante Vista LED Examination Light is designed to provide healthcare professionals with brilliant, reliable lighting in a compact form. This powerful LED light features a unique two-stage dimming capability, allowing for precise control over brightness to meet the specific needs of any examination or procedure.
With its smooth arm articulation, positioning the Avante Vista LED is effortless, ensuring clinicians can focus on providing the best patient care without distractions. Its advanced LED technology guarantees maximum sharpness and color accuracy, essential for accurate diagnostics and procedures.
One of the standout features of the Avante Vista is its energy efficiency—delivering uncompromising illumination while consuming minimal power. The light output reaches an impressive 50,000 Lux, with a color temperature of 4,300° K that provides bright white illumination. Its high Color Rendering Index of 97 ensures exceptional color accuracy, making it an ideal choice for medical environments that require meticulous attention to detail.
Additionally, clinicians will appreciate that the LED array emits virtually no radiant heat, helping to maintain comfort during extended procedures. Built for longevity, the LEDs have a life expectancy of approximately 50,000 hours, which reduces the need for frequent replacements.
Choose the Avante Vista LED Examination Light for a perfect blend of affordability, performance, and efficiency, enhancing your medical practice with superior lighting solutions.

Avante Vista LED Examination Light Specifications

Optical Specifications

• Number of LEDs: 8

• Output: 55,000 Lux @ 24 in (0.6 m)

• CCT: 4,300° K

• CRI: 97

• Focal length: 24 in (0.6 m)

• Dimming levels: 2

• Dimming percentages: 100%, 50%

• Endo mode: No

• Light field (d10): ? Ø6.0 in (Ø152 mm)

• Light field (d50): ? Ø3.5 in (Ø89 mm)

• Irradiance: 71 W/m²

Electrical Specifications

• Supply circuit: 100 - 240 VAC, 50/60Hz

• Fuse rating: 1.5 Amp / 250 VAC

• Power supply: 65 W

• Light head power consumption: 16 W @ 24 VDC

Mechanical Specifications

• Light head weight: 5.6 lbs (2.5 kg)

• Light head dimensions: Ø9.2 in (234 mm) | 2.6 in (66 mm)

• Arm assembly weight (single): 48.3 lbs (22.0 kg)

• Arm assembly weight (dual): 77.1 lbs (35.0 kg)

• Articulating arm vertical movement: +15° Up, -60° Down

• Articulating arm horizontal movement: ?540°

• Articulating arm/yoke interface: ?540°

• Yoke/light head interface: ?300°

Environment Specifications

• Ambient/operating temperature: 41°F to 104°F (5°C to 40°C)

• Storage temperature: -4°F to 122°F (-20°C to 50°C)

• Humidity: 10 - 90% relative humidity

• Pressure: 100 kPa (@ < 2,000 meters)
