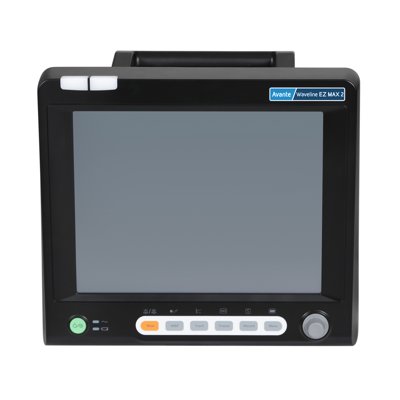

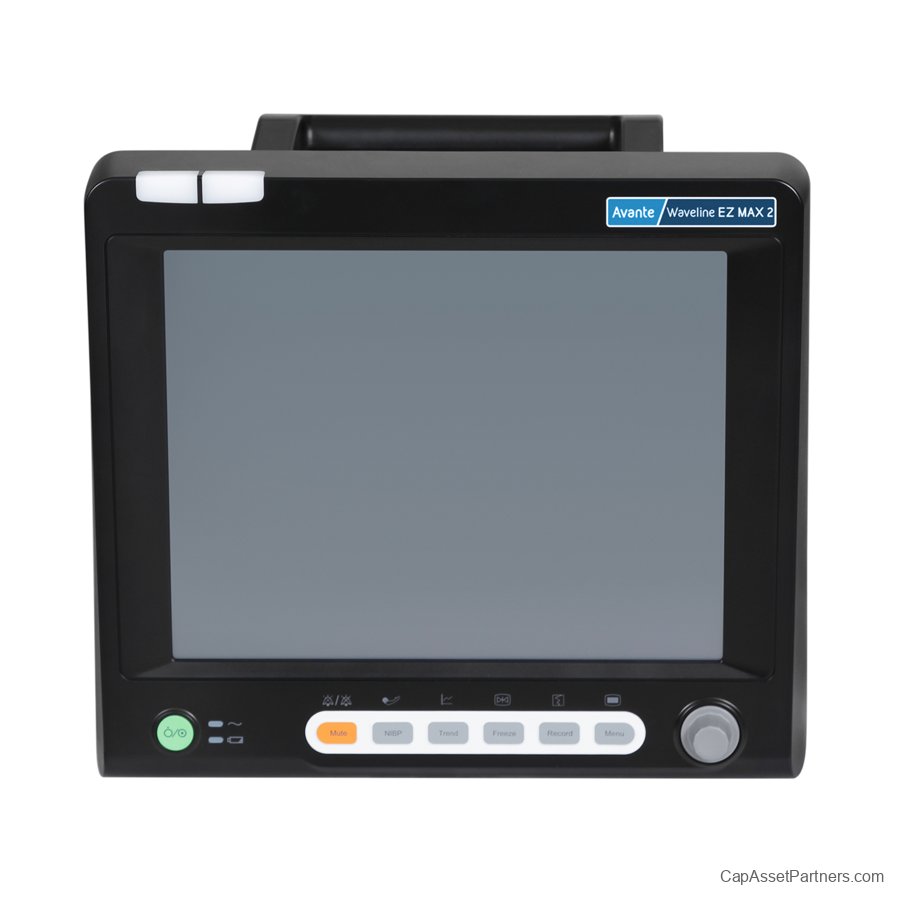

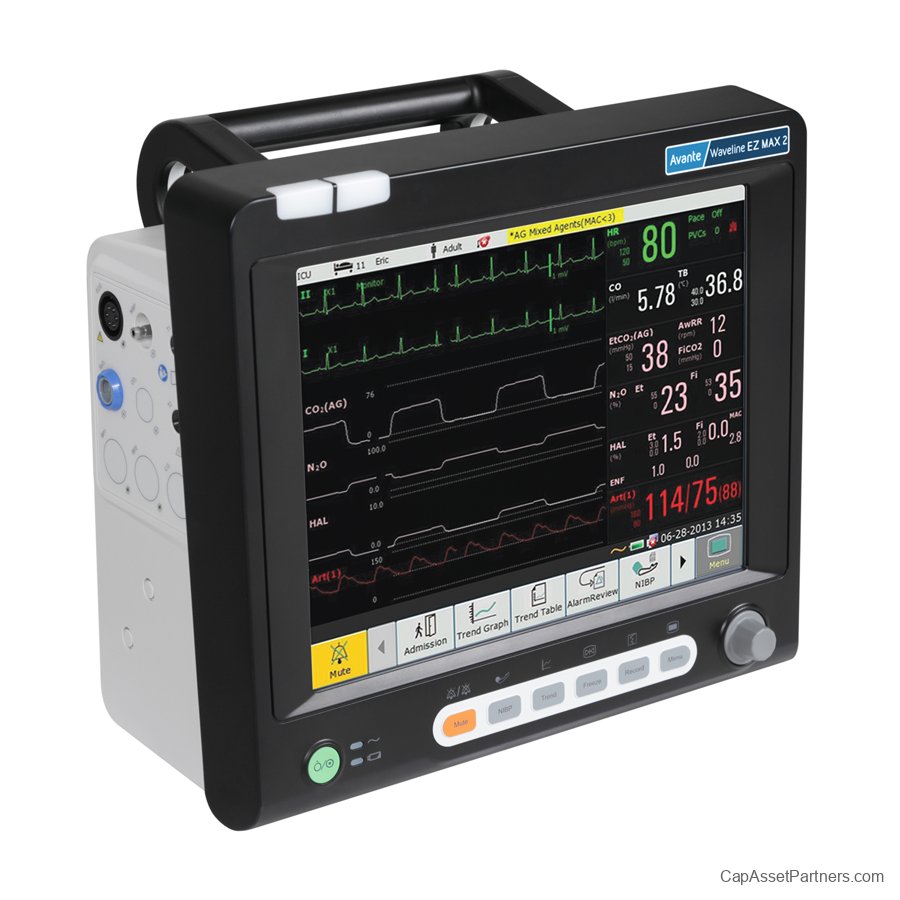

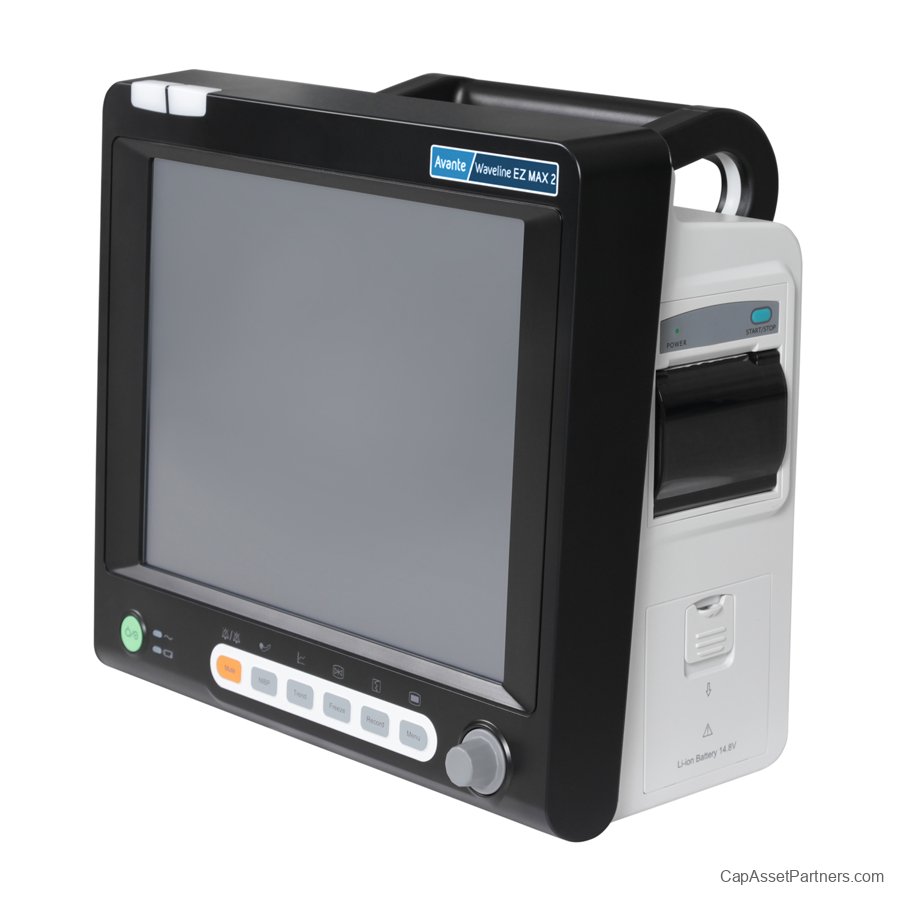

Avante Waveline EZ MAX 2 Patient Monitor: Comprehensive, Cost-Effective Monitoring Solution
The Avante Waveline EZ MAX 2 Patient Monitor is an advanced, multi-parameter monitoring device designed to meet the diverse needs of various healthcare environments. Equipped with a high-resolution 12.1-inch touchscreen, this monitor allows healthcare professionals to easily customize display settings for optimal patient observation.
Featuring an intuitive menu interface, the EZ MAX 2 simplifies setup, making it efficient for clinicians to adapt the monitor to different care scenarios. This patient monitor comes standard with essential parameters including 3/5-lead ECG, heart rate (HR), respiratory rate (RESP), blood oxygen saturation (SpO2), non-invasive blood pressure (NIBP), pulse rate (PR), and dual temperature measurements (2-TEMP).
The Avante Waveline EZ MAX 2 is enhanced with proprietary algorithms that ensure reliable monitoring across a wide range of patients. The ISEAP™ ECG feature provides arrhythmia and pacemaker detection alongside real-time heart rate measurement. The iMAT™ SpO2 technology guarantees exceptional performance even in challenging conditions such as patient movement and low perfusion states. Additionally, the iCUFS™ NIBP capability is optimized for various patient categories, including cardiac, hypertensive, and neonatal patients.
For added flexibility, the EZ MAX 2 can be equipped with optional mainstream or sidestream EtCO2 monitoring capabilities, expanding the scope of patient assessment. The monitor is designed for easy positioning with an onboard bed rail hook and can also be utilized with wall mounts or rolling stands.
Its quiet, fanless design and night mode functionality ensure minimal disruption in patient care settings, while the waterproof and dustproof keyboard enhances durability for diverse clinical environments. The monitor includes a thermal recorder as standard, with optional features like dual invasive blood pressure (2-IBP) monitoring, additional CO2 capabilities, and advanced SpO2 monitoring options.
With the Avante Waveline EZ MAX 2 Patient Monitor, healthcare professionals can deliver high-quality patient care with confidence, knowing they have access to a customizable and reliable monitoring solution that adapts to their specific needs.
Avante Waveline EZ MAX 2 Patient Monitor Specifications
Physical Specifications
- Monitor Dimensions: 12.9 in (328 mm) W x 11.2 in (285 mm) H x 6.2 in (158 mm) D
- Weight: < 10 lb (< 4.5 kg)
- Display: 12.1 in color TFT touchscreen, resolution 800 x 600
Operating Specifications
- Battery Operating Time (2500 mAh): ? 3.5 h
- Battery Operating Time (5000 mAh): ? 7 h
- Battery Charge Time (2500 mAh): ? 3.5 h (100% charge) | ? 3.2 h (90% charge)
- Battery Charge Time (5000 mAh): ? 6 h (100% charge) | ? 5.4 h (90% charge)
- Continual real-time recording
- 8-second real-time recording
- Arrhythmia review recording
- Drug calculation titration recording
- Hemodynamic calculation result recording
- Oxygenation calculation result recording
- Ventilation calculation result recording
- 12-lead analysis recording
- Frozen waveform recording
Data Management Specifications
- Trend Data: 3 hours, resolution: 1 s | 120 hours, resolution: 1 min
- Alarm Events: Up to 200 sets
- NIBP Measurement Data: 1200 sets
- Arrhythmia Events: Up to 200 sets
- 12-lead Analysis Result: Up to 50 sets
