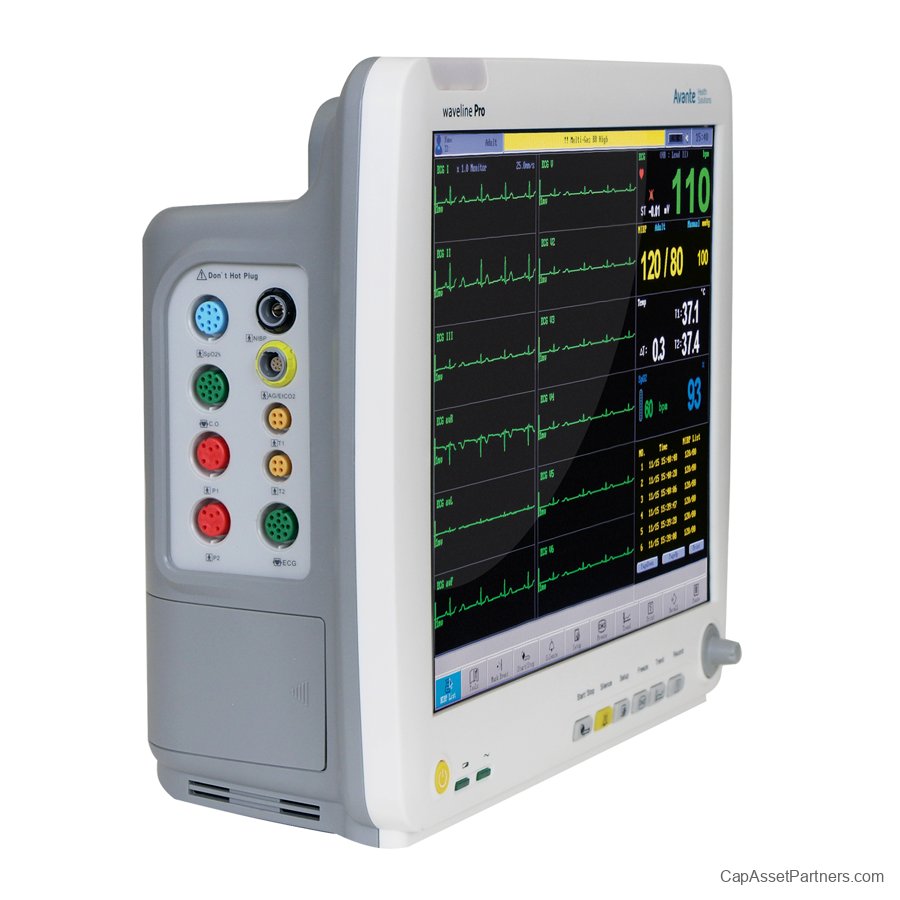

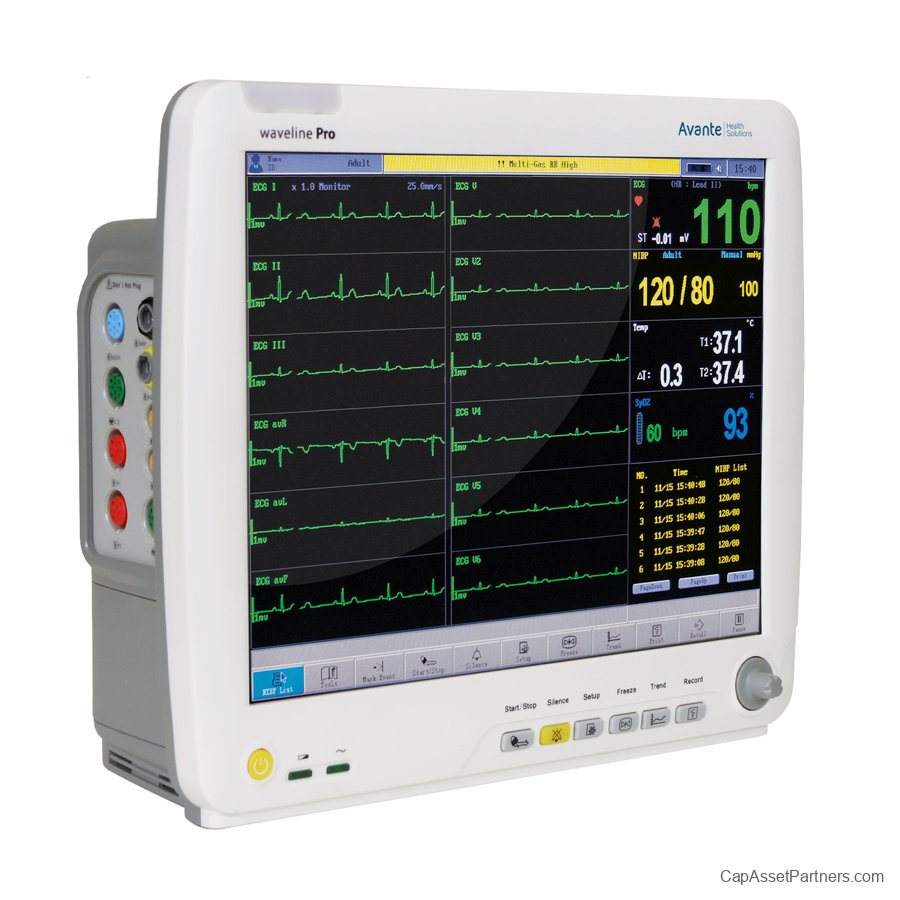

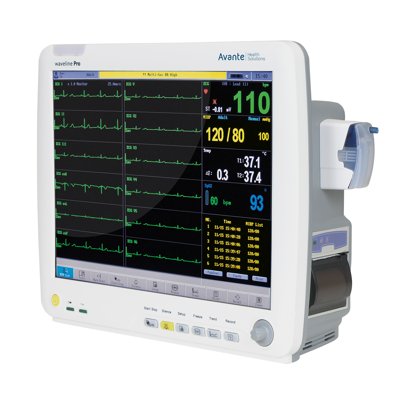

Avante Waveline Pro Touch-Screen Anesthesia Monitor

Avante Waveline Pro Touch-Screen Anesthesia Monitor: Revolutionizing Patient Care
Experience superior performance with the Avante Waveline Pro Touch-Screen Anesthesia Monitor. Designed for high-stress medical environments, this state-of-the-art monitoring device features a vibrant 15-inch high-resolution touch-screen that displays up to eight colorful waveforms, enabling healthcare professionals to optimize the speed and accuracy of patient care.
With the ability to manage up to 72 hours of detailed patient data, the Waveline Pro allows for quick adjustments to settings, alarm limits, and vital signs. Its versatile user interface adapts seamlessly to meet the dynamic needs of various medical situations—from basic vital sign tracking to comprehensive continuous monitoring in both bedside and operating room settings.
This advanced monitor integrates Masimo SET® Pulse Oximetry, enhancing its capabilities with key standard measurements, including non-invasive blood pressure, ECG (3-lead or 5-lead with arrhythmia detection), motion-tolerant SpO2, temperature, and respiration rate. For those requiring more specialized monitoring, optional features include end-tidal CO2, anesthetic agent measurement, cardiac output, and invasive blood pressure.
Connectivity is made simple with Ethernet and RS-232 options, facilitating seamless integration into electronic medical records (EMR) and supporting HL7-compliant hospital information systems. This ensures patient information and vital sign trends can be easily transferred and stored, promoting efficient data management and enhanced patient outcomes.
Capnography is increasingly recognized as the gold standard in outpatient surgery monitoring, positioning the Waveline Pro as an essential tool in modern medical practice.
Key Features:

• High-resolution 15" touch-screen display

• Support for up to eight waveforms

• Multi-lead ECG monitoring

• Fully customizable alarm settings and color-coded alarm notifications

• Graphical and tabular data trending

• Integration capability with EMR and wireless telemetry systems

• User-friendly patient data input

• Built-in features such as a standby button, adjustable sound settings, and an optional built-in thermal printer

• Battery backup with two removable batteries for uninterrupted monitoring

Elevate your patient care experience with the Avante Waveline Pro Touch-Screen Anesthesia Monitor, a perfect blend of advanced technology and user-centric design.

Avante Waveline Pro Touch-Screen Anesthesia Monitor Specifications

Performance

• Display: 15-inch color touch-screen

• Trace: 8 waveforms

• Indicator:

• Alarm indicator

• Power indicator

• QRS beep and alarm sound

• Trend time: 1 - 72 hours

• Recorder:

• Built-in thermal array, 3 channels

• Record width: 48 mm (1.89 inches)

• Recorder paper: 50 mm (1.97 inches)

• Record speed: 25 mm/s, 50 mm/s

ECG

• Input: 5-lead ECG cable and standard AAMI line for connection

• Lead Choice: I, II, III, aVR, aVF, aVL, V, V1-V6, TEST

• Gain Choice: x0.5, x1, x2, x4

• Frequency Characteristic: 0.05 ~ 35 Hz (+3 dB)

• ECG Waveforms: 7 channels

• Penetration Voltage: 4000 VAC, 50/60 Hz

• Sweep Speed: 12.5, 25, 50, and 100 mm/sec (left to right or right to left)

• HR Display Range: 30 ~ 300 bpm

• Accuracy: ±1 bpm or ±1%, whichever is greater

• Alarm Limit Range Setting:

• Upper limit: 100 ~ 200 bpm

• Lower limit: 30 ~ 100 bpm

RESP

• Measure Method: RA-LL impedance

• Range: 0 ~ 120 rpm

• Accuracy: ±3 rpm

• Alarm Limit Setting:

• Upper limit: 6 ~ 120 rpm

• Lower limit: 3 ~ 120 rpm

• Sweep Speed: 12.5, 25, 50, and 100 mm/sec (left to right or right to left)

NIBP

• Measuring Technology: Automatic oscillating measurement

• Cuff Inflating: <30s (0 ~ 300 mmHg, standard adult cuff)

• Measuring Period: AVE <40s

• Mode: Manual, Auto

• Measuring Interval in AUTO Mode: 2 min ~ 4 hrs

• Pulse Rate Range: 30 ~ 250 bpm

• Measuring Range:

• Adult/Pediatric Mode:

• SYS: 40 ~ 250 mmHg

• DIA: 15 ~ 200 mmHg

• Neonatal Mode:

• SYS: 40 ~ 135 mmHg

• DIA: 15 ~ 100 mmHg

• Accuracy:

• Maximum Mean error: ±5 mmHg

• Maximum Standard deviation: ±8 mmHg

TEMP

• Range: 25 ~ 50 °C

• Accuracy:

• ±0.2 °C (25.0 ~ 34.9 °C)

• ±0.1 °C (35.0 ~ 39.9 °C)

• ±0.2 °C (40.0 ~ 44.9 °C)

• ±0.3 °C (45.0 ~ 50.0 °C)

• Display Resolution: 0.1 °C

• Alarm Limit Setting:

• Upper limit: 0 ~ 50 °C

• Lower limit: 0 ~ 50 °C

• Channel: 2 channels

Masimo SET SpO2

• SpO2 Accuracy (non-motion):

• Adult Pediatric: 70?100%: ±2%, 0?69%: unspecified

• Neonate: 70?100%: ±3%, 0?69%: unspecified

• SpO2 Accuracy (motion):

• Adult Pediatric: 70?100%: ±3%, 0?69%: unspecified

• Neonate: 70?100%: ±3%, 0?69%: unspecified

• Low Perfusion Performance: >0.02% Pulse Amplitude and % Transmission >5

• SpO2: ±2%

• PR: ±3 bpm

• Modes:

• Averaging mode: 2, 4, 8, 10, 12, 14, and 16 s

• Sensitivity: Normal, APOD, and Maximum

• PR Accuracy (non-motion):

• Neonate: 70?100%: ±3%, 0?69%: unspecified

• Adult Pediatric Neonate: 25?240 bpm: ±3 bpm

• PR Accuracy (motion):

• Adult Pediatric Neonate: 25?240 bpm: ±5 bpm

• Measuring Range:

• SpO2: 1?100%

• PR: 25?240 bpm

• Perfusion: 0.02?20%

IBP

• Measurement Range: -50 ~ 300 mmHg

• Channel: 2 channels

• Pressure Transducer: Sensitivity, 5 µV/V/mmHg

• Impedance Range: 300 ~ 3000 ?

• Transducer Sites: ART, PA, CVP, RAP, LAP, ICP

• Unit: mmHg/kPa selectable

• Resolution: 1 mmHg

• Accuracy: ±1 mmHg or ±2%, whichever is greater

• Alarm Range: -10 ~ 300 mmHg

EtCO2 (Optional)

• CO2 Measurement Range: 0 ~ 99 mmHg

• Accuracy:

• ±2 mmHg (0 ~ 38 mmHg)

• 39-99 mmHg: ±5% of reading + 0.08% for every 1 mmHg (above 38 mmHg)

• Sampling Rate: 50 ml/min

• Initialization Time: 30 seconds (typical), reaches ±5% steady-state accuracy within 3 minutes

• Respiration Rate: 0 ~ 150 breaths/min

• Mode: Adult, Neonate

Cardiac Output (Optional)

• Measurement Method: Thermodilution Method

• CO2 Measurement Range:

• C.O.: 0.1 to 20 L/min

• TB: 23 to 43

• TI: 0 to 27

• Resolution:

• C.O.: ±5% or ±0.1 L/min, whichever is greater

• TB, TI: 0.1

• Accuracy:

• ±5 or ±0.1 L/min, whichever is greater

• TB, TI: ±0.1 (without sensor)

• Alarm Range: TB 23 to 43

• Repeatability: C.O. ±2% or 0.1 L/min, whichever is greater

Anesthetic Agents (Optional)

• Method: Infrared absorption

• Gas Types: Halothane, Isoflurane, Enflurane, Sevoflurane, Desflurane, CO2, N2O, O2 (optional Automatic Agent ID)

• Measurement Range:

• Halothane, Isoflurane: 0 - 8.5%

• Enflurane, Sevoflurane: 0 - 10%

• Desflurane: 0 - 20%

• CO2: 0 - 10%

• N2O: 0 - 100%

• O2: 0 - 100%

• Bias:

• Halothane, Isoflurane, Enflurane, Sevoflurane, Desflurane: ±(0.15 Vol% + 15% rel.)

• CO2: ±(0.5 Vol% + 12% rel.)

• N2O: ±(2 Vol% + 8% rel.)

• O2: ±3 Vol%

Networking

• Industry standard 802.11b/g wireless network

Power

• Source: External AC power or internal battery

• AC Power: 100 - 240 VAC, 50/60 Hz, 150 VA

• Battery: Built-in and rechargeable lithium-ion

• Operating Time: 3+ hours

Environmental

• Temperature:

• Operating: 5° - 40° C

• Storage: -20° - 65° C

• Humidity Range:

• Operating: ?80%

• Storage: ?80%

Other Standard Features

• OxyCRG, drug dose calculation, cascading ECG, on-screen NIBP trends (up to 250 readings), user set defaults, arrhythmia detection, ST segment monitoring.
