Avanti NXT3 Infusion Pump

Do you have a Avanti NXT3 Infusion Pump you want to sell?

We buy used equipment! Learn about selling

Manufactured by: Avante

Category: Infusion Pumps

Avante Avanti NXT3 Infusion Pump
Avante Avanti NXT3 Infusion Pump
Avante None - Infusion Pumps
Avante None - Infusion Pumps

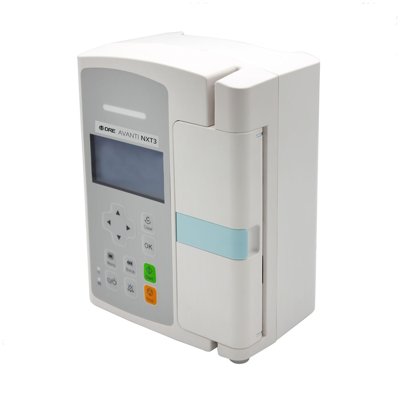

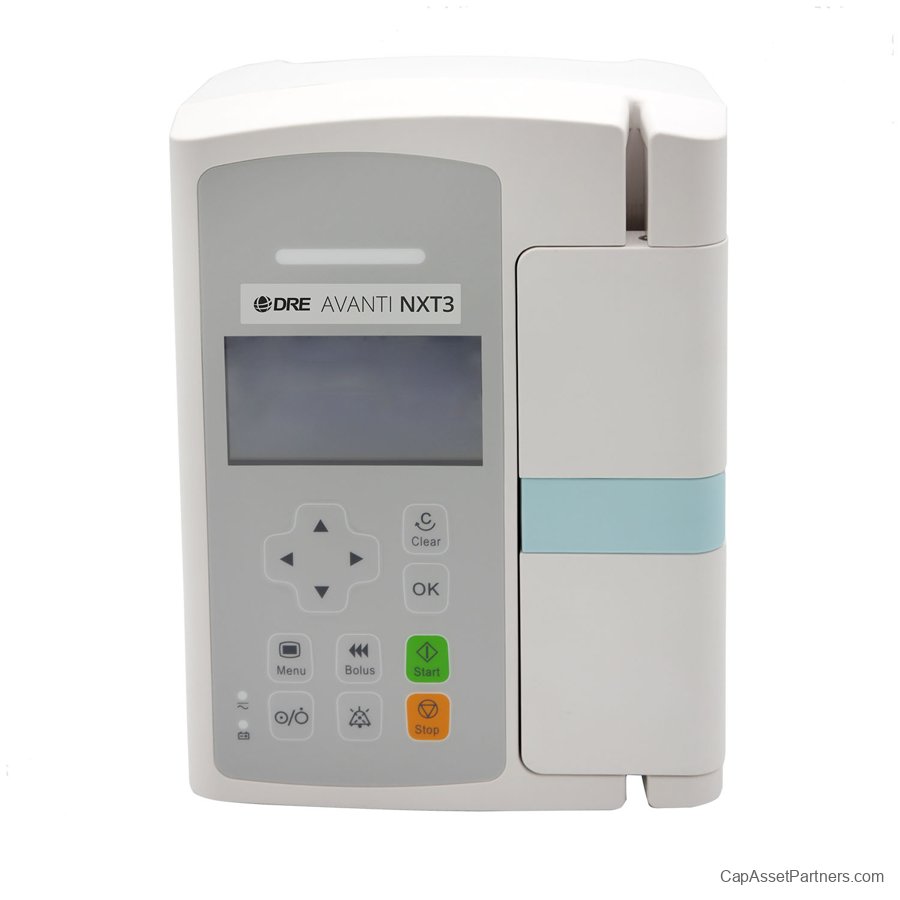

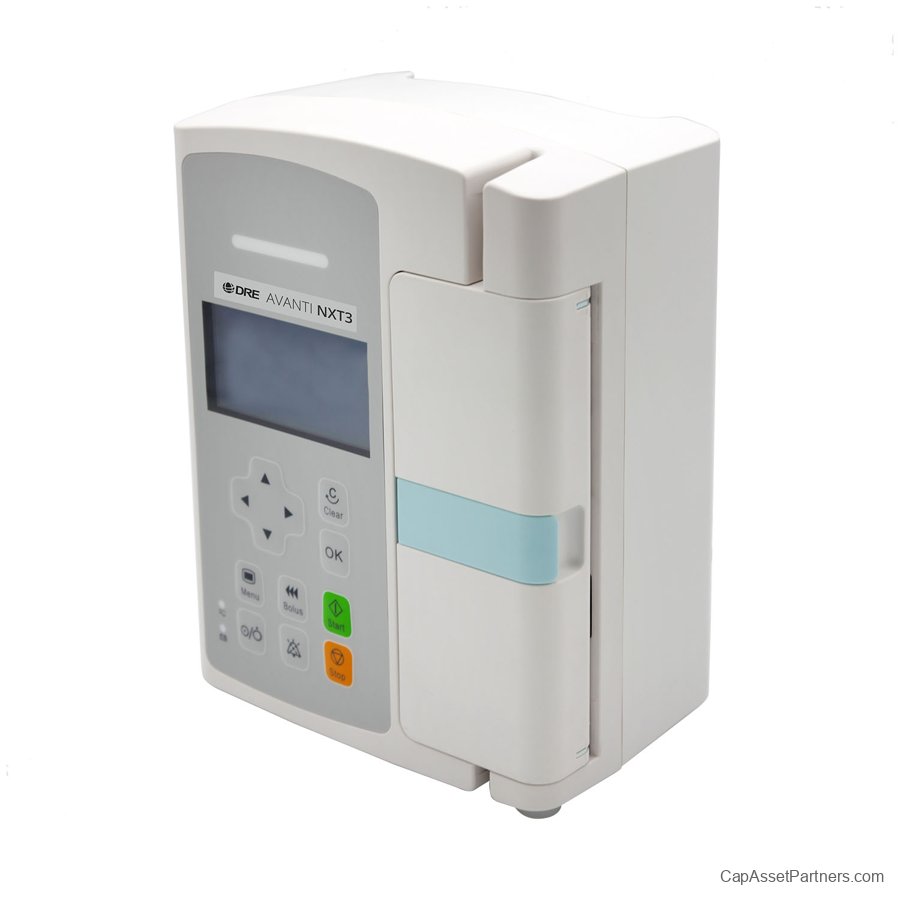

Avanti NXT3 Infusion Pump


The Avanti NXT3 Infusion Pump is engineered to deliver exceptional infusion care tailored for various medical facilities. Its intuitive user interface, operated through just six buttons, simplifies function settings for healthcare professionals, ensuring ease of use during critical operations.
This advanced infusion pump is equipped with a comprehensive drug library, allowing for precise medication delivery. The Avanti NXT3 is also designed to support both automatic and manual bolus options, enhancing flexibility for varied clinical scenarios.

Key Features


  • Multiple Modes of Operation: The pump offers various operational modes, including:
  • Vol/rate mode
  • Time mode
  • Body weight mode
  • Optional drop rate mode

  • Streamlined Design: The pump's unique design promotes a clean aesthetic and enhances workflow efficiency within any clinical environment.

  • Compatibility: It is designed to work seamlessly with straight line tubing sets from any manufacturer, facilitating easy integration into existing setups.

  • Enhanced Safety: With anti-bolus technology, the Avanti NXT3 ensures increased safety during sudden occlusion releases, minimizing risks during infusion processes.

  • Comprehensive Alarming System: Onboard alarms alert users to critical events, including infusion completion, low battery, detection of air bubbles, downstream occlusions, loss of AC power, and more, ensuring patient safety at all times.

  • Line Set Management: The pump allows for saving and calibrating up to three separate line sets, adapting effortlessly to different infusion needs.

The Avanti NXT3 Infusion Pump is a reliable choice for healthcare providers seeking advanced infusion management solutions. Experience precision and safety in your infusion practices with this state-of-the-art equipment.

Avanti NXT3 Infusion Pump Specifications


Dimensions

  • Weight: 1.6 kg (3.5 lbs)
  • Width: 146 mm (5.74 in)
  • Height: 193 mm (7.6 in)
  • Depth: 95 mm (3.74 in)

Power

  • AC Power Supply: 100-240 V; 50/60 Hz
  • External DC Power Supply: 10V-16V DC

Display & Alarms

  • Screen: 3 in, monochrome LCD, 240 x 128 pixels
  • Alarms: Downstream occlusion, air in line, door open, VTBI completed, KVO finish, battery low, battery empty, no AC power, reminder, system error, VTBI near done, standby time expired, tubing not inserted.

Environment

  • Operating Temperature: 5 - 40 °C (41 - 104 °F)
  • Operating Air Pressure: 57 - 106 kPa (0.57 - 1.06 bar)
  • Operating Humidity: 15 % - 95 %
  • Storage Temperature: -20 - 60 °C (-4 - 140 °F)
  • Storage Air Pressure: 50 - 106 kPa (0.5 - 1.06 bar)
  • Storage Humidity: 10 % - 95 %

General

  • Mechanism: Linear Peristaltic Movement
  • Preset Volume: 1-9999 ml
  • Accumulated Infusion Volume: 1-9999 ml
  • Increment: 0.1 ml/h
  • Accuracy: ± 5%
  • Features: Lock function, automatic bolus, drug library, history record, last configuration memory, change rate while operating
  • Drip Sensor: Optional
  • KVO Rate: 0.1 - 5.0 ml/h (selectable)
  • Bolus Rate: 0.1 - 1500 ml/h (adjustable)
