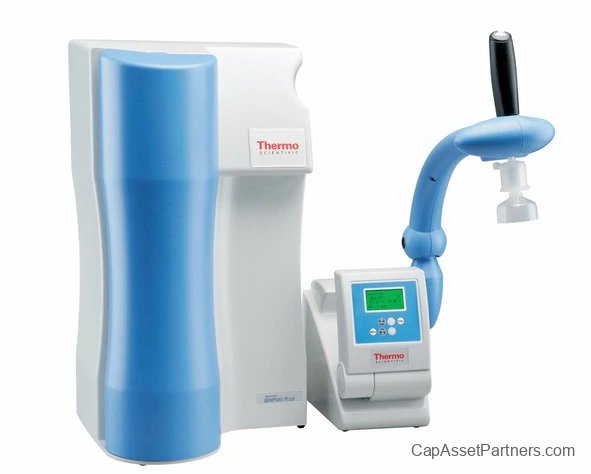

Barnstead™ GenPure™ xCAD Ultrapure System
Advanced Ultrapure Water Dispensing
The Barnstead GenPure xCAD Ultrapure System revolutionizes your ultrapure water requirements with cutting-edge technology tailored for precision and convenience in laboratory settings.
xCAD (Extended Control and Dispenser)
- Experience unparalleled flexibility with a 32-inch (80cm) dispensing action radius.
- Ergonomic design features a dispensing arm for precise volume dosing at the touch of a button.
- Adjustable positions allow the dispenser to be turned, height-adjusted, or extended toward your vessel.
- Access all system controls easily with an innovative layout that puts functionality at your fingertips.
Simultaneous Dispensing Capability

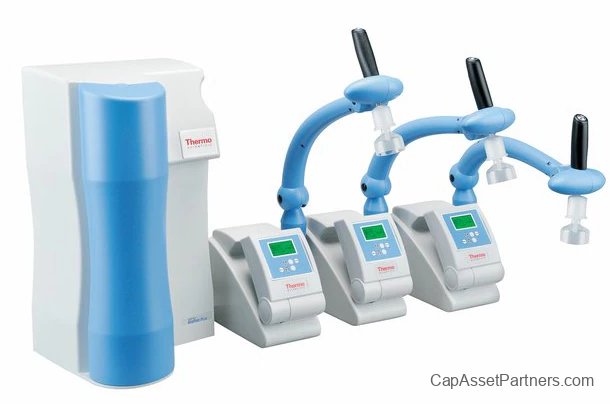

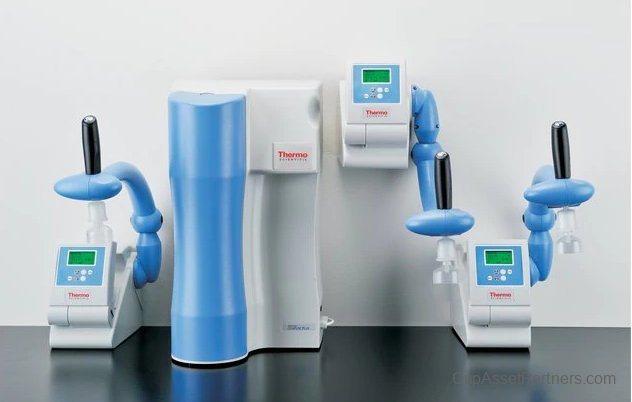

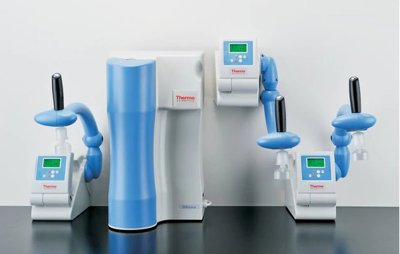

- Each system includes one xCAD Plus remote dispenser, allowing for concurrent dispensing from multiple sources.
- Enhance your flexibility by adding up to two additional xCAD Plus dispensers.
Integrated Feed Water Monitoring
- Equipped with an additional measuring cell that monitors feed water conductivity.
- A fault message is triggered if the feed water quality falls below the set threshold.
Online TOC Measurement (Optional)
- Offers real-time monitoring of Total Organic Carbon (TOC) to ensure water purity.
- Continuously tracks UV intensity to prevent false TOC readings.
- User alerts when UV lamp intensity is insufficient for accurate measurements.
High-Performance UV Photo-Oxidation
- Utilizes a UV assembly (185/254 nm) to significantly reduce microorganisms and their metabolites.
- Effectively lowers organic compound concentrations to ultra-low levels.
Leak Detection Feature
- Internal leak detection triggers an error message for immediate response and troubleshooting.
Ready-to-Use System Components
- Included: Feed water pressure switch, wall bracket, UV lamp, ultrapure cartridge, and sterile filter—all part of one comprehensive solution.
Conductivity/Resistivity Measurement
- Conductivity cells calibrated before each measurement ensure precision with built-in reference resistance.
- Temperature measured by a platinum chip sensor with a precision of ±0.1°C.
Quick-Connect Cartridge Replacement
- The Aquastop quick-connect feature allows for seamless cartridge changes, even during operation.
Exact Dosing Precision
- Electronic dosing system offers full automatic volume control ranging from 0.01 to 65 liters with less than 2% accuracy.
GLP-Compliant Documentation
- Real-time clock and a code-protected operating system safeguard against unauthorized changes.
- RS-232 interface enables reliable data transfer of measurements and errors to a PC or log printer.
- Automatic monitoring and storage of faults for the last four weeks enhances operational integrity.
- USP-compliant conductivity measurement includes optional temperature compensation features.
Specifications
| SKU |
Resistivity |
Conductivity |
Water Monitoring |
Temperature Range |
Operating Pressure |
| 50136146 |
18.2 MΩ·cm at 25°C |
0.055 µS/cm |
Integrated |
2°C to 35°C |
0.1 to 6 bar |
| 50136151 |
18.2 MΩ·cm at 25°C |
0.055 µS/cm |
Integrated |
2°C to 35°C |
0.1 to 6 bar |
| 50136152 |
18.2 MΩ·cm at 25°C |
0.055 µS/cm |
Integrated |
2°C to 35°C |
0.1 to 6 bar |
| 50136153 |
18.2 MΩ·cm at 25°C |
0.055 µS/cm |
Integrated |
2°C to 35°C |
0.1 to 6 bar |
| 50136169 |
18.2 MΩ·cm at 25°C |
0.055 µS/cm |
Integrated |
2°C to 35°C |
0.1 to 6 bar |
| 50136170 |
18.2 MΩ·cm at 25°C |
0.055 µS/cm |
Integrated |
2°C to 35°C |
0.1 to 6 bar |
| 50136171 |
18.2 MΩ·cm at 25°C |
0.055 µS/cm |
Integrated |
2°C to 35°C |
0.1 to 6 bar |
| 50136172 |
18.2 MΩ·cm at 25°C |
0.055 µS/cm |
Integrated |
2°C to 35°C |
0.1 to 6 bar |
Additional Specifications
| SKU |
Connector Type |
Depth |
Width |
Height |
| 50136146 |
3/4 in. NPT |
13 in |
14.6 in |
24 in |
| 50136151 |
3/4 in. NPT |
13 in |
14.6 in |
24 in |
| 50136152 |
3/4 in. NPT |
13 in |
14.6 in |
24 in |
| 50136153 |
3/4 in. NPT |
13 in |
14.6 in |
24 in |
| 50136169 |
3/4 in. NPT |
13 in |
14.6 in |
24 in |
| 50136170 |
3/4 in. NPT |
13 in |
14.6 in |
24 in |
| 50136171 |
3/4 in. NPT |
13 in |
14.6 in |
24 in |
| 50136172 |
3/4 in. NPT |
13 in |
14.6 in |
24 in |
