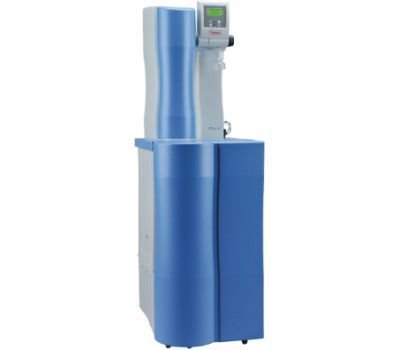

Barnstead™ LabTower™ TII Complete Solution Purification Systems

Transform tap water into high-purity water with the innovative Barnstead™ LabTower™ TII purification system. This state-of-the-art solution seamlessly combines purification and storage, ensuring uninterrupted access to quality water in your laboratory. Designed for optimal performance, it continuously recirculates purified water, maintaining pristine conditions even during inactive periods.

Key Features

Consistent Water Quality

• Produces Type 2 laboratory water that meets ASTM Type II, CSLS-CLRW, and ISO 3696 standards.
• Maintains water purity by continuously recirculating purified reservoir water.

Compact Mobile Design

• Available in three models with permeate flow rates of 20, 40, or 60L/hr.
• Integrated 100L reservoir minimizes bench space usage.
• Constructed with castors for effortless mobility within your workspace.
• Future upgrade capabilities to meet increasing water demands.

Flexible Water Dispensing Options

• Dispense directly from the system's dispensing valve for calibration, reagent preparation, and general rinsing.
• Access reservoir supply for autoclaves, dishwashers, and ultrapure systems.

Integrated 100L Reservoir

• Stores up to 100L of high-purity water readily available for use.
• High-purity polypropylene construction is light-blocking to protect water quality.
• Conical bottom design ensures thorough cleaning and disinfection.
• Adjustable reservoir volume settings optimize water storage based on demand.

User-Friendly System Display

• Large, illuminated four-line display is code-protected to prevent accidental adjustments.
• Provides real-time data on resistivity, conductivity, operating mode statuses, and reservoir volume percentage.

GLP-Compliant Documentation

• Developed to meet or exceed Good Laboratory Practice (GLP) requirements.
• Automatically records data that can be printed via RS-232 interface to an accessory printer.
• High accuracy in conductivity measurement with a cell constant of 0.01 cm^-1 (±0.1°C).

Advanced Pretreatment System

• Features a 5µm prefilter combined with activated carbon to protect the RO membrane from particles and free chlorine.
• A hardness stabilizing cartridge shields the reverse osmosis stage against hard water issues.

Effective Reverse Osmosis and Reservoir Management

• Pretreated water is forced through the RO module, eliminating 97-99% of inorganic ions, 99% of dissolved organics, and contaminants.
• The integrated 100L reservoir includes a conical bottom outlet, facilitating effective cleaning and sanitization.

Comprehensive Ion Exchange and UV Treatment

• Removes remaining ions with high-purity resins in the ion exchange cartridge following the RO process.
• Optional UV irradiation (available on specific TII models) ensures the elimination of bacteria and other microorganisms.

Specifications

SKU	Flow Rate	Feed Tube Connector	Operating Pressure	Resistivity	Conductivity	Feedwater Source	Bacterial Content
50132141	1.5L/min.	3/4 in. NPT	2 to 6 bar	10 to 1MΩ·cm	0.1 to 1.0µS/cm	Tap	<1CFU/mL

Additional Information

SKU	Hertz	Voltage	Dimensions
50132141	50/60 Hz	100 - 240V	22.8 in x 17.7 in x 59.0 in
