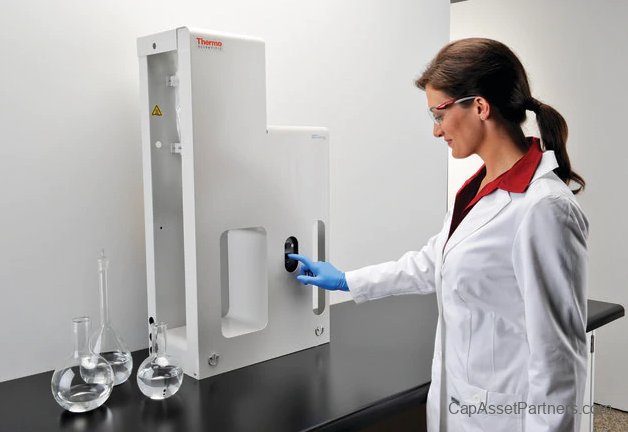

Barnstead™ Megapure™ Glass Stills
Experience the pinnacle of water purification with the Barnstead™ Megapure™ Glass Stills, designed for laboratories that demand the utmost in purity and reliability. Each unit provides consistent and efficient operation, ensuring that your water meets the highest standards.
Features
- Constructed from glass, quartz, and PTFE components to guarantee ultimate purity and prevent cross-contamination.
- Versatile wall- or bench-mounted design for convenient installation.
- Innovative vertical condenser design ensures maximum water purity during the distillation process.
- Integrated high temperature cut-off system protects against overheating, safeguarding the heating element from burnout.
- Quick release cover allows for hassle-free cleaning and maintenance.
- Equipped with a feed water solenoid valve for seamless automatic operation.
- Delivers purified water with a resistivity of 1-10 MΩ-cm, contingent upon the purity of the feed water.
- Vent temperature ranges from 85°C to 96.7°C for optimal performance.
Model MP-1
- Compact and user-friendly design, producing 1 liter per hour; available with or without a storage bottle.
Automatic Collection System (ACS)
- All-glass collection and control system tailored for use with Megapure Glass Stills.
- Generous 45-liter capacity for extended distilled water collection.
- Flexible wall- or bench-mounted installation for optimal workspace utilization.
- Pre-set to cease power to the heaters and water supply once approximately 45 liters are collected, ensuring safe operation.
- Automatically restarts the still and replenishes collection system as needed.
Pretreatment for Hard Water (Deionizer Accessory)
- This accessory enables pretreatment of feed water to maintain distillate purity and reduce scale buildup.
- Available in single or dual cartridge options to accommodate varying feed water qualities.
- Temperature-compensated purity meter provides real-time water quality monitoring and cartridge status.
- Features a built-in drain valve for simplified cartridge replacement.
- Designed for extended use with large cartridge capacity and the option for wall- or bench-mounting.
Specifications
| SKU |
Inlet Pressure |
Inlet Temperature |
| A440518 |
20 to 100 psi |
4°C to 37°C |
| A440367 |
20 to 100 psi |
4°C to 37°C |
| A440266 |
20 to 100 psi |
4°C to 37°C |
| A440267 |
20 to 100 psi |
4°C to 37°C |
Dimensions
| SKU |
Depth |
Width |
Height |
| A440518 |
12 in |
18 in |
45 in |
| A440367 |
12 in |
23 in |
45 in |
| A440266 |
9.75 in |
18 in |
34 in |
| A440267 |
9.75 in |
18 in |
34 in |
