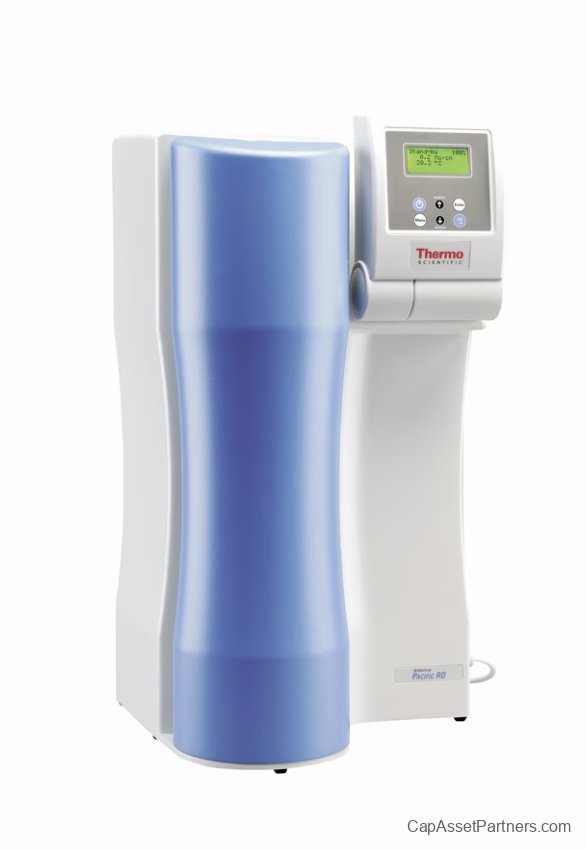

Barnstead™ Pacific™ RO - Advanced Reverse Osmosis System
Engineered for efficiency and precision, the Barnstead™ Pacific™ RO is a modularly designed laboratory reverse osmosis system that produces high-purity water, crucial for a wide range of applications. This system is ideal for laboratories seeking a functional and economical solution for their water purification needs.
Key Features
- Available in five system options with permeate flows of 3, 7, 12, 20, or 40 liters per hour to meet diverse laboratory demands.
- Space-saving design enables easy placement on a laboratory bench or wall mounting, optimizing workspace.
- Flexible upgrade capabilities to accommodate increased pure water requirements in the future.
Reliable Operation
- Microprocessor-controlled automatic operation with continuous monitoring of critical parameters for consistent performance.
- Customizable reservoir filling levels tailored to specific laboratory needs.
- Automatic resumption of operation ensures continuous recirculation during inactivity periods.
User-Friendly Interface
- Large back-lit control panel with a tilt feature makes resistivity/conductivity readings easy to view.
- Clearly indicates current operational modes including "production", "stand-by", and "cleaning".
- Reservoir fill-level displayed as a percentage for quick reference.
Superior Feed Water Monitoring
- Integrated monitoring ensures high-quality feed water, essential for prolonging cartridge service life.
GLP-Compliant Documentation
- Real-time clock functionality for logging system errors and faults.
- Four weeks of data storage with clear text display for easy access to operational history.
- Code-protected operating system prevents unauthorized adjustments to system configurations.
- RS-232 interface enables customizable data transmission settings for efficient monitoring and reporting.
- Cell constant of 0.16 cm-1 guarantees precise conductivity measurements.
Advanced Pretreatment System
- Equipped with two 10-inch cartridge filter housings, featuring a 5-micron prefilter and activated carbon to eliminate particles and free chlorine, with an added hardness stabilizer to prevent calcium precipitation.

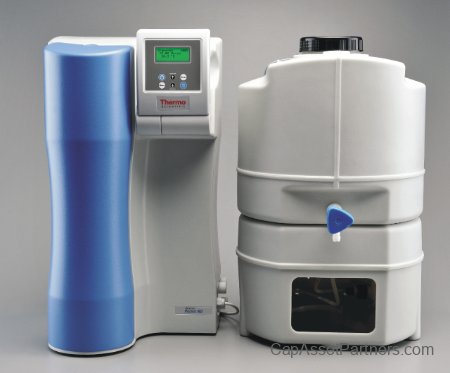

Efficient Water Storage
- Reservoirs are crafted from pigment-free polyethylene for purity and safety.
- Conical design for easy cleaning, disinfection, and complete drainage.
Optional Hand Dispenser
- Enhance flexibility with an optional hand dispenser featuring a 3-meter cord, compatible with pressure pump-equipped tanks (models 06.5032, 06.5062, 06.5082).
- Comes equipped with a 0.2-micron final filter for added purity assurance.
Specifications
| Permeate Performance |
7L/hr. |
12L/hr. |
20L/hr. |
| Bacterial Retention |
99% |
| Feedwater Connector |
3.4 in. NPT |
| Depth (Metric) |
330mm |
| Height (Metric) |
603mm |
| Hertz |
50/60Hz |
| Net Weight (Metric) |
21kg |
| Operating Pressure |
1.5 to 6 bar |
| Power Consumption |
0.1kW |
| Temperature Range (Metric) |
2° to 35°C |
| Voltage |
230V |
| Width (Metric) |
372mm |
| Electrical Requirements |
230V 50/60Hz |
