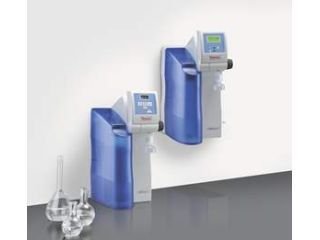

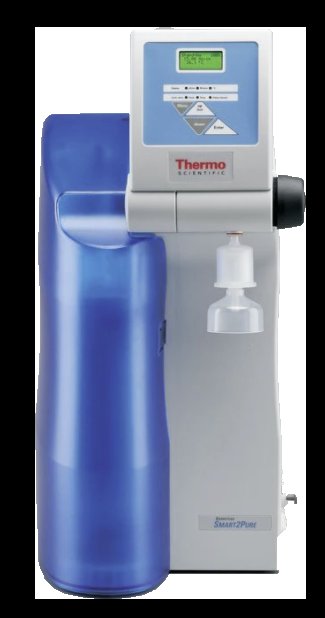

Barnstead™ Smart2Pure™ Water Purification Systems
Transform tap water into ASTM Type 1 water effortlessly with the Barnstead™ Smart2Pure™ Water Purification System. Engineered for optimal performance and convenience, this compact, all-in-one system delivers 3 or 6 liters of ultrapure water per hour. Select from the Smart2Pure™ 3 and 6 models, both featuring a built-in 6L reservoir, or choose the versatile Smart2Pure™ 12, offering reservoir options of 30L or 60L to meet your specific storage needs.
Key Features
- Comprehensive Purification: Each unit includes an RO/Pretreatment Cartridge, Ultrapure Polisher Cartridge, Sterile 0.2 µm Filter, Pressure Regulator, and UV Lamp ensuring high-quality water output.
- Efficient Cartridge Design: The purification process is facilitated by independent cartridges featuring Aquastop quick connectors for seamless, quick replacement. Module 1 combines pretreatment and a reverse osmosis membrane, while Module 2 contains a polishing cartridge with high-quality ultrapure resin for consistent purity.
- Customizable Storage: The Smart2Pure™ 12 model provides options for 30L or 60L reservoirs, which are designed with a large opening for easy manual cleaning and a sterile venting filter to prevent microorganism contamination.
Ease of Use

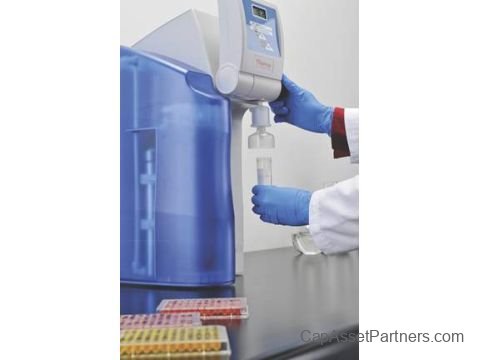

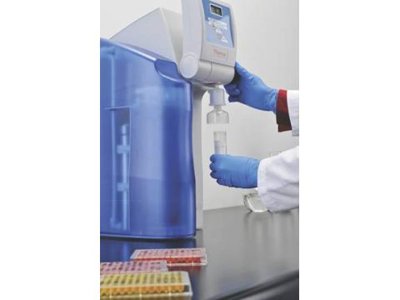

- Variable speed dispensing allows precise flow control, making it simple to obtain the desired water volume.
- The tiltable display ensures optimal visibility, allowing users to monitor the system effortlessly.
- Optional UV bulb and UF ultrafilter are available for enhanced customization of ultrapure water.
Smart Integrated Reservoirs
For the Smart2Pure™ 3 and 6:
- Constructed with pigment-free materials to maintain water purity.
- Includes an integrated vent filter for added protection against contaminants.
- Features a conical bottom outlet facilitating complete draining and efficient cleaning.
For the Smart2Pure™ 12:
- Opaque polyethylene reservoir design prevents light exposure that could lead to contamination.
- Equipped with a recirculation pump to inhibit bacterial growth and maintain low conductivity during periods of inactivity.
- Wall mounting option available to save counter space.
- Conical bottom outlet allows for thorough draining and cleaning.
Optional Hand Dispenser
Enhance flexibility with the option to add a hand dispenser featuring a 3-meter cord, perfect for navigating around your workspace.
Specifications
| SKU |
Flow Rate |
Water Type |
Permeate Performance |
Connection Type |
Feedwater Pressure |
Resistivity |
Feedwater Source |
| 50129872 |
0.6 L/min |
Type 1 and Type 2 |
3 L/hr. at 10°C |
3/4 in. NPT |
1 to 6 bar |
Type 1: 18.2 Mohm.cm at 25°C |
Tap |
| 50129688 |
0.6 L/min |
Type 1 and Type 2 |
3 L/hr. at 10°C |
3/4 in. NPT |
1 to 6 bar |
Type 1: 18.2 Mohm.cm at 25°C |
Tap |
| 50129885 |
0.6 L/min |
Type 1 and Type 2 |
6 L/hr. at 10°C |
3/4 in. NPT |
1 to 6 bar |
Type 1: 18.2 Mohm.cm at 25°C |
Tap |
| 50129887 |
0.6 L/min |
Type 1 and Type 2 |
6 L/hr. at 10°C |
3/4 in. NPT |
1 to 6 bar |
Type 1: 18.2 Mohm.cm at 25°C |
Tap |
| 50129890 |
1 L/min |
Type 1 and Type 2 |
12 L/hr. at 10°C |
3/4 in. NPT |
1 to 6 bar |
Type 1: 18.2 Mohm.cm at 25°C |
Tap |
| 50129845 |
0.6 L/min |
Type 1 and Type 2 |
12 L/hr. at 10°C |
3/4 in. NPT |
1 to 6 bar |
Type 1: 18.2 Mohm.cm at 25°C |
Tap |
Additional Information
| SKU |
Electrical Information |
Dimensions |
Operating Pressure |
Conductivity |
Bacterial Content |
| 50129872 |
100-240V, 50/60 Hz |
21.46 in x 12.00 in x 15.75 in |
1 to 6 bar |
Type 1: 0.055 µS/cm |
<0.01 CFU/mL |
| 50129688 |
100-240V, 50/60 Hz |
21.46 in x 12.00 in x 15.75 in |
1 to 6 bar |
Type 1: 0.055 µS/cm |
<0.01 CFU/mL |
| 50129885 |
100-240V, 50/60 Hz |
21.46 in x 12.00 in x 15.75 in |
1 to 6 bar |
Type 1: 0.055 µS/cm |
<0.01 CFU/mL |
| 50129887 |
100-240V, 50/60 Hz |
21.46 in x 12.00 in x 15.75 in |
1 to 6 bar |
Type 1: 0.055 µS/cm |
<0.01 CFU/mL |
| 50129890 |
100-240V, 50/60 Hz |
21.46 in x 12.00 in x 15.75 in |
1 to 6 bar |
Type 1: 0.055 µS/cm |
<0.01 CFU/mL |
| 50129845 |
100-240V, 50/60 Hz |
21.46 in x 12.00 in x 15.75 in |
1 to 6 bar |
Type 1: 0.055 µS/cm |
<0.01 CFU/mL |
