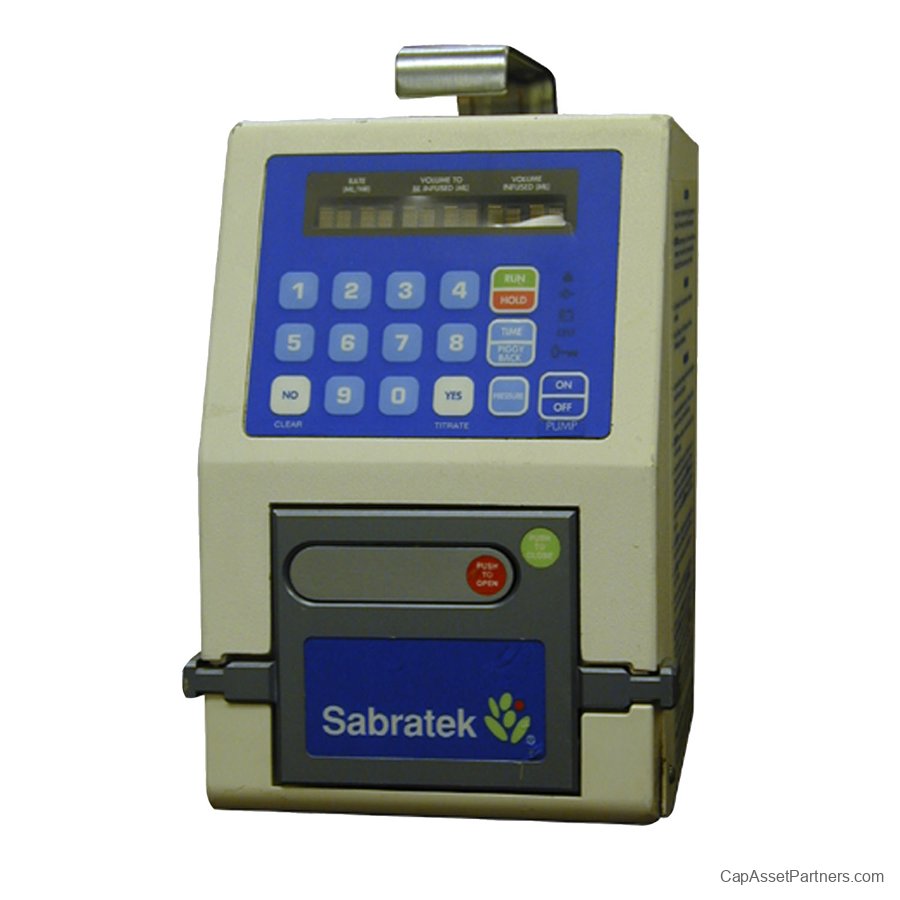

Baxter Sabratek 3030 IV Infusion Pump

Baxter Sabratek 3030 IV Infusion Pump: Precision in Patient Care
The Baxter Sabratek 3030 IV infusion pump is designed to provide safe, accurate, and reliable volumetric delivery for both arterial and venous applications. Whether you are in a hospital setting or a clinical environment, this infusion pump ensures consistent performance to meet the diverse needs of patient care.
Key Features:

• Compatible Tubing: The Sabratek 3030 IV Pump is compatible with standard Abbott, Baxter, McGaw, and Sabratek tubing sets, allowing for versatile usage.

• Wide Flow Rate Range: With a flow rate adjustable from 1-999 mL/HR, it caters to a variety of infusion requirements.

• Power Supply: Operates on 110 AC power and is equipped with a 12V rechargeable battery for enhanced mobility.

• Extended Battery Life: Delivers up to 6 hours of run time at 125 mL/HR, ensuring continuous delivery without interruptions.

• User-Adjustable Settings: Customize the occlusion pressure with a range of 8-20 psi to accommodate individual patient needs.

• Selectable Alarms: Enhance safety with alarms for Air in Line, Door Open, High Rate, Down Occlusion, Up Occlusion, Hold, Empty Bag, Low Battery, Empty Battery, Infusion Complete, and Pump Malfunctions.

• Compact Design: With dimensions of 8 (H) x 5.5 (W) x 6.25 (D) inches, it’s designed for easy maneuverability and placement in various settings.

The user-friendly programming interface of the Baxter Sabratek 3030 makes it easy to operate. Users can respond to the pump’s prompts with a straightforward YES or NO key, simplifying the programming process. Additionally, the Lockout mode enhances security, requiring a software access code for any adjustments, thus ensuring patient safety and compliance.
With its robust features and intuitive design, the Baxter Sabratek 3030 IV infusion pump stands as a reliable solution for medical professionals dedicated to providing high-quality care.

Baxter Sabratek 3030 IV Infusion Pump Specifications:

• Dimensions:

• Length: 12.5 in (31.8 cm)

• Width: 8.5 in (21.6 cm)

• Height: 4.5 in (11.4 cm)

• Weight:

• 4.5 lbs (2.0 kg)

• Infusion Modes:

• Continuous infusion

• Intermittent infusion

• Patient-controlled analgesia (PCA)

• Flow Rate Range:

• 1 to 1000 mL/h

• 0.1 to 100 mL/h in specific modes

• Accuracy:

• ± 5% of the programmed rate

• Power Supply:

• AC Power: 100-240 V, 50/60 Hz

• Battery: Rechargeable; run time of approximately 5 hours on a full charge

• Alarms:

• Occlusion alarm

• Air-in-line alarm

• Low battery alarm

• End of infusion alarm

• Display:

• LCD screen with backlight

• User Interface:

• Touchscreen controls

• Programmable infusion settings

• Compatible Infusion Sets:

• Standard IV administration sets with compatible ports and connectors

• Connectivity:

• Optional data management and connectivity features

• Operating Environment:

• Temperature: 32°F to 113°F (0°C to 45°C)

• Humidity: 15% to 95% non-condensing

• Regulatory Compliance:

• CE marked

• FDA cleared

Note: Specifications may vary based on specific configurations and updates. Always refer to the manufacturer's documentation for the most current information.
