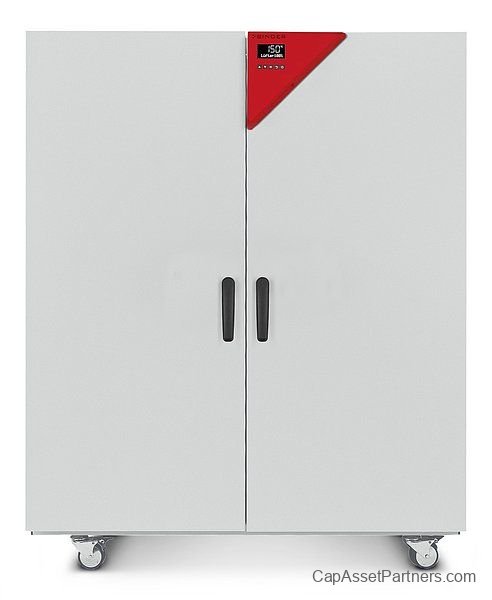

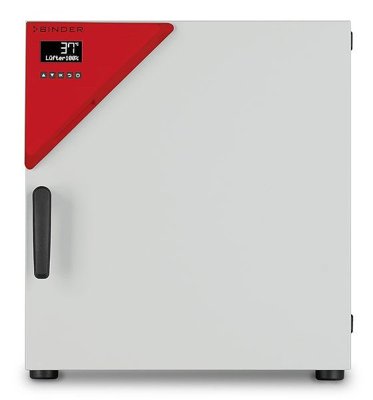

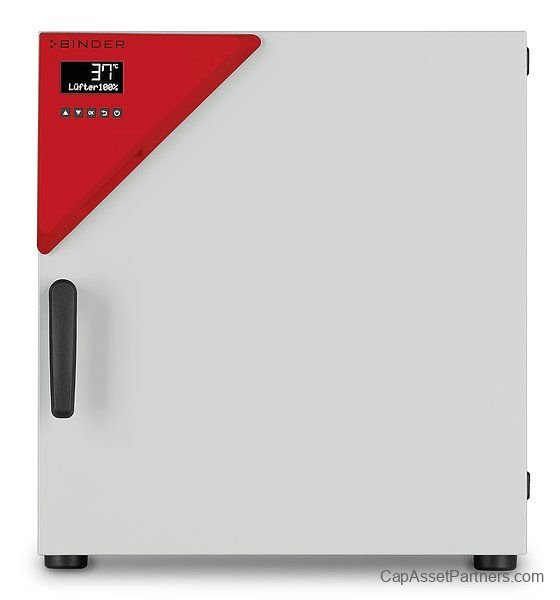

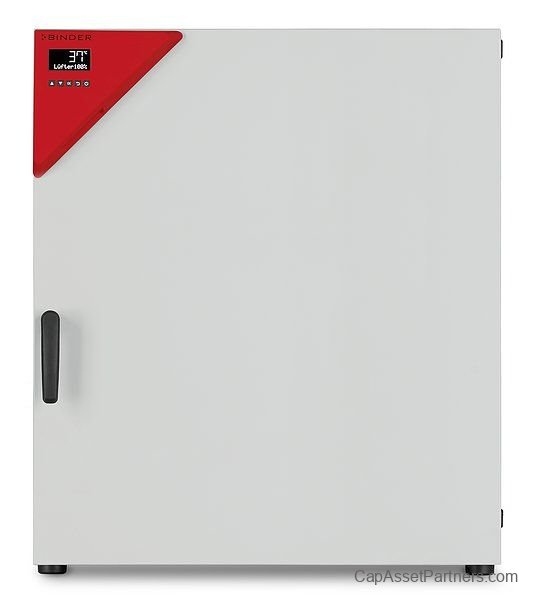

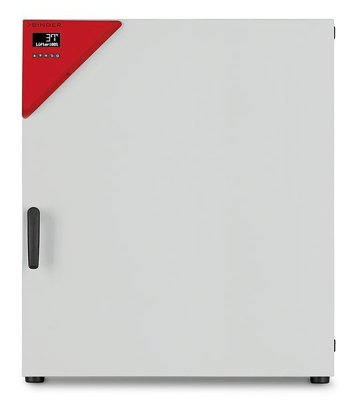

BD Series Standard Avantgarde Incubators with Gravity Convection
The BD Series Standard Avantgarde Incubators expertly combine precision and efficiency to provide optimal conditions for the gentle incubation of various organisms and heat-sensitive media. With advanced engineering and a modern design, these incubators deliver homogeneous temperature distribution, ensuring reliable and reproducible results in your laboratory.
Key Features:
- Temperature Range: Operates between ambient temperature plus 5°C and 100°C.
- High Temperature Accuracy: APT.line™ technology guarantees exceptional measurement precision.
- Gravity Convection: Efficient airflow system for uniform environmental conditions.
- User-Friendly Interface: Easy-to-read LCD controller display for convenient operations.
- Electromechanical Control: Precision control of the exhaust air flap enhances performance.

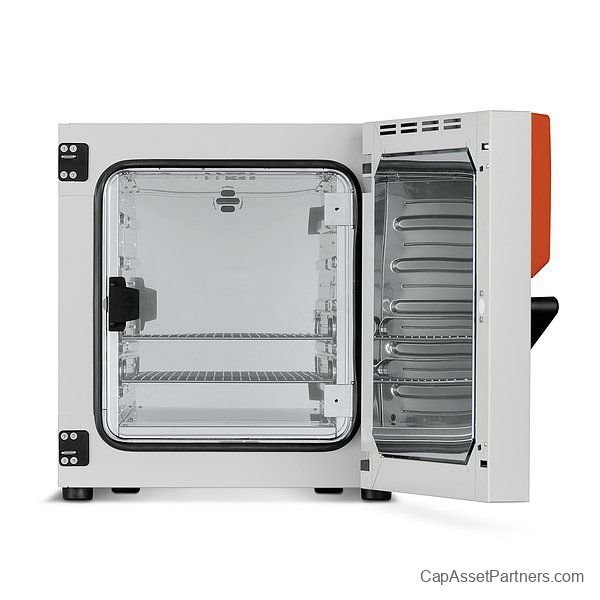

- Safety First: Inner door constructed from tempered safety glass, ensuring visibility without compromising safety.
- Storage Versatility: Comes with 2 chrome-plated racks and stackable options for units up to 115 L.
- Temperature Safety Device: Class 3.1 integrated independent temperature safety device (DIN 12880) with a visual alarm for enhanced security.
- Ergonomic Design: Features a user-friendly handle for easy operation.
- Data Recording Capability: USB port included for straightforward data management.
Benefits:
- Temporal and Spatial Accuracy: Essential for precise experimental conditions.
- High Process Reliability: Ensures consistent performance for critical applications.
- Effective Disinfection: 100°C disinfection routine available for thorough sterilization.
Specifications:
| SKU |
Temperature Range |
Temperature Fluctuation |
Temperature Variation |
Warm Up Time |
| 9010-0323 |
100°C + 5°C |
± 0.1°C at 37°C |
± 0.3°C at 37°C |
42 min to 37°C |
| 9010-0324 |
100°C + 5°C |
± 0.1°C at 37°C |
± 0.3°C at 37°C |
42 min to 37°C |
| 9010-0325 |
100°C + 5°C |
± 0.1°C at 37°C |
± 0.3°C at 37°C |
55 min to 37°C |
| 9010-0326 |
100°C + 5°C |
± 0.1°C at 37°C |
± 0.3°C at 37°C |
55 min to 37°C |
| 9010-0329 |
100°C + 5°C |
± 0.2°C at 37°C |
± 0.3°C at 37°C |
60 min to 37°C |
| 9010-0330 |
100°C + 5°C |
± 0.2°C at 37°C |
± 0.3°C at 37°C |
60 min to 37°C |
| 9010-0332 |
100°C + 5°C |
± 0.1°C at 37°C |
± 0.7°C at 37°C |
70 min to 37°C |
| 9010-0331 |
100°C + 5°C |
± 0.1°C at 37°C |
± 0.7°C at 37°C |
70 min to 37°C |

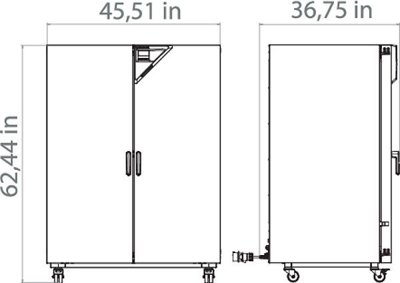

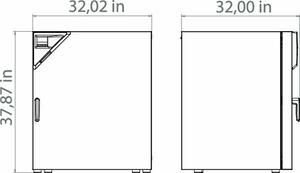

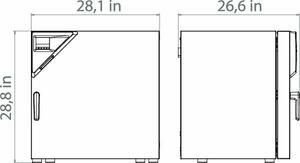

Additional Information:
| SKU |
# of Shelves |
Door Recovery Time |
Depth |
Height |
Width |
Power Requirement |

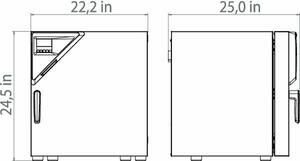

| 9010-0323 |
2 std./4 max. |
15 min |
22.26 in |
24.63 in |
22.06 in |
200-230 V, 50/60 Hz |
| 9010-0324 |
2 std./4 max. |
15 min |
22.26 in |
24.63 in |
22.06 in |
100-120 V, 50/60 Hz |
| 9010-0325 |
2 std./5 max. |
15 min |
23.84 in |
27.78 in |
27.97 in |
200-230 V, 50/60 Hz |
| 9010-0326 |
2 std./5 max. |
15 min |
23.84 in |
27.78 in |
27.97 in |
100-120 V, 50/60 Hz |
| 9010-0329 |
2 std./8 max. |
16 min |
29.94 in |
37.04 in |
31.91 in |
200-230 V, 50/60 Hz |
| 9010-0330 |
2 std./8 max. |
16 min |
29.94 in |
37.04 in |
31.91 in |
100-120 V, 50/60 Hz |

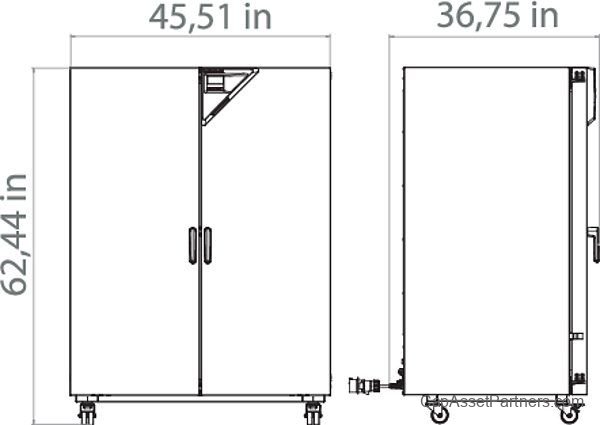

| 9010-0332 |
2 std./16 max. |
23 min |
34.28 in |
62.6 in |
45.9 in |
240 V, 50/60 Hz |
| 9010-0331 |
2 std./16 max. |
23 min |
34.28 in |
62.6 in |
45.9 in |
230 V, 50/60 Hz |
