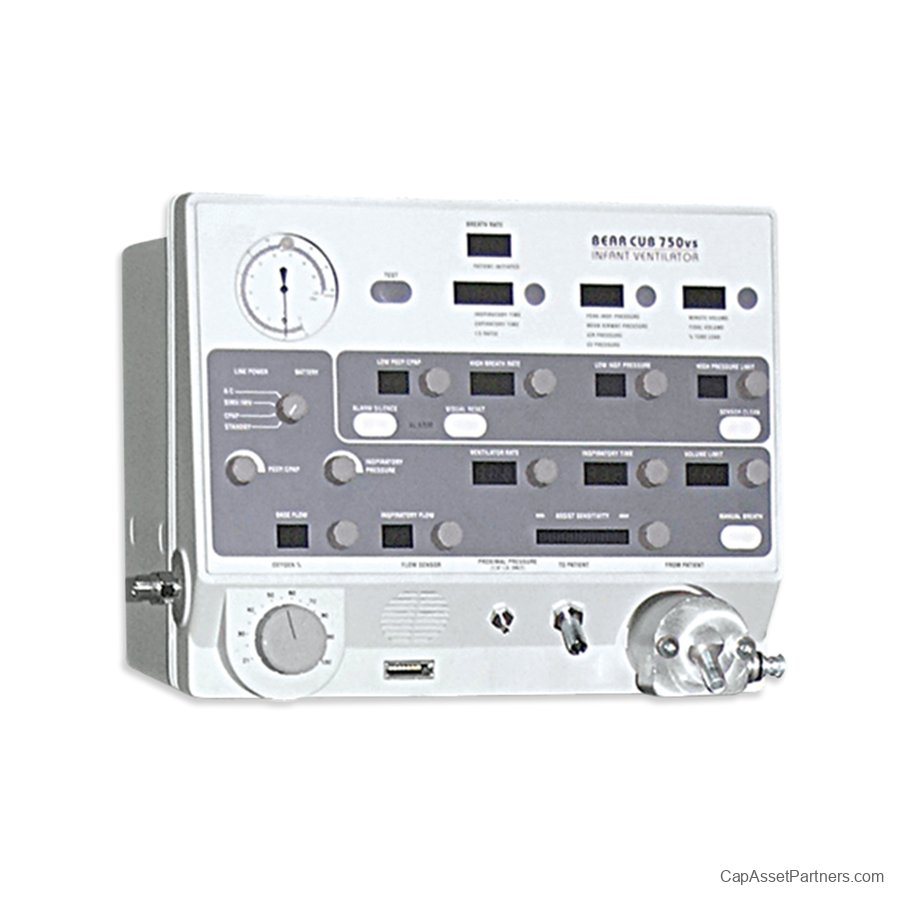

Newport Bear 750-vs Infant Critical Care Ventilator
Bear 750vs Infant Critical Care Ventilator
Elevate the standard of neonatal and pediatric care with the Bear 750vs Infant Critical Care Ventilator. This advanced ventilator is meticulously engineered to support a wide range of patients, from delicate neonates starting at just 500 grams to children weighing up to 30 kg, making it an essential tool for critical care environments.
The Bear 750vs stands out with its integrated synchronized ventilation, ensuring precise and responsive respiratory support tailored to the needs of each patient. With features such as tidal volume monitoring, independent base and inspiratory flows, and internal battery back-up, healthcare professionals can rest assured that they are providing optimal care in even the most demanding situations.

Key Features


  • Integrated Synchronized Ventilation: Delivers tailored respiratory support for individual patient needs.
  • Tidal Volume Monitoring: Helps in precise management of ventilatory requirements and enhances patient safety.
  • Independent Base & Inspiratory Flows: Allows for customizable ventilation settings for various clinical scenarios.
  • Internal Battery Back-Up: Provides reliability during power outages or transport, ensuring continuous patient care.
  • Exclusive Volume Limit: Prevents unintentional over-inflation and potential lung injury.
  • Assist Control and Flow Cycled AC: Supports both patient-initiated and controlled ventilation modes.
  • SIMV/IMV and Flow Cycled SIMV: Versatile modes to accommodate fluctuating patient needs.
  • CPAP and SIMV with Pressure Support: Ensuring adequate ventilation, supporting patient comfort and compliance.

The Bear 750vs is designed not just for functionality but for enhancing the quality of care provided to the most vulnerable patients. Trust in the Bear 750vs for your critical care solutions, where safety and efficacy meet innovation.
Bear 750-vs Infant Critical Care Ventilator Specifications



Physical Weight & Dimensions

  • Ventilator Weight: 12 kg / 13.6 kg (26.5 lbs / 30 lbs)
  • Graphics Display Weight: 2.5 kg (5.5 lbs)
  • Pedestal Stand Weight: 4.1 kg (9 lbs)
  • Compressor Weight: 50 kg (110.2 lbs)
  • Ventilator Dimensions: 11 (H) × 13.5 (W) × 10 (D) inches (28 (H) × 34.3 (W) × 25.4 (D) cm)
  • Graphics Display Dimensions: 9.5 (H) × 13 (W) × 2.5 (D) inches (24.1 (H) × 33 (W) × 6.4 (D) cm)
  • Pedestal Stand Dimensions: 40.5 (H) × 24 (W) inches (102.9 (H) × 61 (W) cm)
  • Compressor Dimensions: 36 (H) × 22 (W) × 21.5 (D) inches (91.4 (H) × 55.8 (W) × 54.6 (D) cm)

Shipping Information

  • Shipping Weight Including Ventilator: 17 kg / 18.2 kg (37.5 lbs / 40.1 lbs)
  • Graphics Display Shipping Weight: 5 kg (11 lbs)
  • Pedestal Stand Shipping Weight: 5.1 kg (11.3 lbs)
  • Compressor Shipping Weight: 9.1 kg (20.1 lbs)
  • Shipping Dimensions:
  • Ventilator: 19 (H) × 18 (W) × 18 (D) inches (48.3 (H) × 45.7 (W) × 45.7 (D) cm)
  • Graphics Display: 11 (H) × 16 (W) × 13 (D) inches (27.9 (H) × 40.6 (W) × 33 (D) cm)
  • Pedestal Stand: 45 (H) × 25 (W) × 5 (D) inches (114.3 (H) × 63.5 (W) × 12.7 (D) cm)
  • Compressor: 40 (H) × 26 (W) × 22 (D) inches (101.6 (H) × 66 (W) × 55.9 (D) cm)



Controls (*psv)

  • Mode: AC, Flow cycle AC, SIMV/IMV, Flow Cycled SIMV, SIMV/PSV, PSV, CPAP
  • Ventilator Rate: 1.0 to 150 BPM
  • Inspiratory Time: 0.1 to 3.0 sec
  • Inspiratory Flow: 1.0 to 30 LPM
  • Base Flow: 1.0 to 30 LPM
  • Volume Limit: 5.0 to 300 ml
  • PEEP: 0 to 30 cmH2O
  • Inspiratory Pressure: 0 to 72 cmH2O
  • Manual Breath: 1
  • Assist Sensitivity: 0.2 to 5.0 LPM
  • Over Pressure Relief: 15 to 75 cmH2O
  • % O2: 21 to 100%
  • Alarm Loudness: Min 60 to Max 75 dbA
  • Audible Off Volume Limit: LED On/Off



Alarms

  • High Breath Rate: 3.0 to 255 BPM
  • Low PEEP/CPAP: -5.0 to 30 cmH2O
  • Low Inspiratory Pressure (vs): 1.0 to 65 cmH2O
  • Low Inspiratory Pressure (psv): 5 to 41 cmH2O
  • Patient Circuit: LED On/Off
  • Failed to Cycle: LED On/Off
  • Low Gas Supply: LED On/Off
  • Apnea Alarm: 5, 10, 20, 30 sec
  • Settings Incompatible: LED On/Off
  • Pressure Settings Incompatible: LED On/Off
  • Prolonged Inspiratory Pressure: LED On/Off
  • Flow Sensor: LED On/Off
  • Low Battery: LED On/Off
  • Alarm Silence: 60 sec
  • Visual Reset: Push Button
  • High Pressure Limit: 10 to 75 cmH2O
  • Low Minute Volume: Off to 99 LPM



Monitors

  • PEEP: 0 to 30 cmH2O
  • Breath Rate: 0 to 255 BPM
  • Breath Type (Patient Initiated): LED
  • Minute Volume: 0 to 30.0 LPM
  • Tidal Volume (Exhaled): 0 to 500 ml
  • % Tube Leak: 0 to 100%
  • Inspiratory Time: 0.1 to 3.10 sec; Expiratory Time: 9 to 99.9 sec
  • I:E Ratio: 9.9:1 to 1:9.9
  • Peak Inspiratory Pressure: 0 to 99 cm H2O
  • Mean Airway Pressure: 0 to 75 cmH2O
  • Air Pressure: 0 to 100 psig; 0 to 99 psig
  • O2 Pressure: 0 to 100 psig; 0 to 99 psig
  • Proximal Airway Pressure: -10 to 100 cm H2O
  • Hour Meter: 0 to 99,999 hours
  • Test: Push Button
  • Line Power: Green/Red LED
  • Battery: LED On/Off
  • Inspired Tidal Volume: 0 to 500 ml



Limits to Ventilation (Fixed)

  • Minimum Expiratory Time: 0.15 seconds
  • Maximum Inspiratory Time: 3:10 seconds
  • Maximum Settable I:E Ratio: 4:1



Tolerances

  • Breath Rate: ± 1 BPM or ± 20 msec
  • Inspiratory Time: ± 0.02 sec
  • Expiratory Time: ± 0.02 sec
  • I:E Ratio: ± 0.1 or ± 20 msec
  • Airway Pressure (Continuous):
  • ± 1 cmH2O (-10 to 20 cmH2O)
  • ± 2 cmH2O (20 to 65 cmH2O)
  • ± 3 cmH2O (65 to 100 cmH2O)
  • Peak Inspiratory Pressure: ± 2 cmH2O or ± 5%
  • Mean Airway Pressure: ± 2 cmH2O or ± 3%
  • PEEP: ± 2 cmH2O or ± 5%
  • Air/O2 Pressure: ± 5 psig
  • Minute Volume Accuracy: Based on the Tidal Volume and Breath Rate Monitors
  • Inspiratory Tidal Volume: ± 1 ml or ± 10%
  • Expiratory Tidal Volume: ± 1 ml or ± 10%
  • % Leak: ± 1 ml or ± 2%
  • Hour Meter: ± 2% of reading



Electrical Specifications

  • Voltage:
  • 100V - 80 to 110 VAC
  • 120V - 96 to 132 VAC
  • 220V - 176 to 242 VAC
  • 240V - 192 to 264 VAC
  • Current:
  • 100V - 1.0 A maximum
  • 120V - 1.0 A maximum
  • 220V - 0.5 A maximum
  • 240V - 0.5 A maximum
  • Frequency:
  • 100V - 50/60 Hz
  • 120V - 50/60 Hz
  • 220V - 50/60 Hz
  • 240V - 50/60 Hz
  • Fuses:
  • 100/120V - T 0.5 A, 5 x 20 mm
  • 230/240V - T 0.5 A, 5 x 20 mm



Environmental Specifications

  • Temperature:
  • Storage and Shipping: -40 to 70 °C (-40 to 158 °F)
  • Checkout and Operating: 10 to 40 °C (50 to 104 °F)
  • Altitude: 0 to 3,000 meters (14.7 to 10.5 PSIA / 760 to 543 mm Hg)
  • Humidity:
  • Storage and Shipping: 0 to 99% Relative Humidity - Non-condensing
  • Checkout and Operating: 0 to 95% Relative Humidity - Non-condensing

--

Note: Complete Specifications are listed in PDF format under the documents tab.
