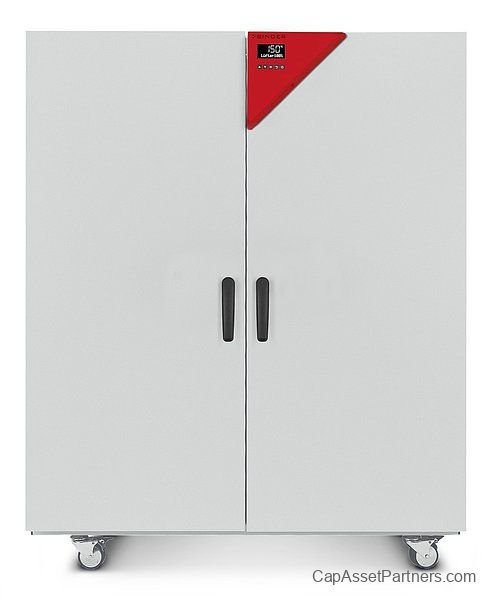

BF Series Standard Avantgarde Incubators with Forced Convection
Designed for precision and reliability, the BF Series Standard Avantgarde Incubators with Forced Convection offer optimal conditions for all gentle incubation applications, especially under full loads and large batch throughputs. Experience exceptional temperature homogeneity and swift recovery times, tailored to meet the highest standards of laboratory performance.
Key Features
- Temperature range (model 56 | 260): +7°C above ambient temperature to +100°C
- Temperature range (model 115): +8°C above ambient temperature to +100°C
- Advanced APT.line™ technology ensures high temperature accuracy
- Efficient forced convection for consistent temperature distribution

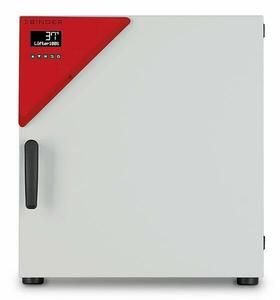

- User-friendly controller with a clear LCD display
- Electromechanical control of the exhaust air flap for enhanced airflow management
- Inner door constructed of tempered safety glass for visibility and safety
- Includes 2 chrome-plated racks for versatile usage
- Stackable units available up to 115 L, optimizing laboratory space
- 4 stable castors (two with brakes) for easy mobility in larger units from 720 liters
- Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
- Ergonomically designed handle for easy access and control
- USB port for seamless data recording and management
Benefits
- Unmatched temporal and spatial temperature accuracy for reliable results
- High process reliability, ensuring consistent performance
- 100°C disinfection routine promotes cleanliness and safety in laboratory environments
Specifications
| SKU |
Temperature Range |
Temperature Fluctuation |
Temperature Variation |
Warm Up Time |
| 9010-0313 |
100°C +7°C |
± 0.1 at 37°C |
± 0.2 at 37°C |
6 min to 37°C |
| 9010-0314 |
100°C +7°C |
± 0.1 at 37°C |
± 0.2 at 37°C |
6 min to 37°C |
| 9010-0315 |
100°C +8°C |
± 0.1 at 37°C |
± 0.3 at 37°C |
8 min to 37°C |
| 9010-0316 |
100°C +8°C |
± 0.1 at 37°C |
± 0.3 at 37°C |
8 min to 37°C |
| 9010-0319 |
100°C +7°C |
± 0.1 at 37°C |
± 0.2 at 37°C |
7 min to 37°C |
| 9010-0320 |
100°C +7°C |
± 0.1 at 37°C |
± 0.3 at 37°C |
7 min to 37°C |
| 9010-0322 |
100°C +10°C |
± 0.1 at 37°C |
± 0.3 at 37°C |
15 min to 37°C |
| 9010-0321 |
100°C +10°C |
± 0.1 at 37°C |
± 0.3 at 37°C |
15 min to 37°C |
Additional Information
| SKU |
# of Shelves |
Door Recovery Time |

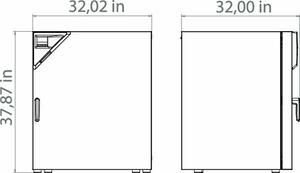

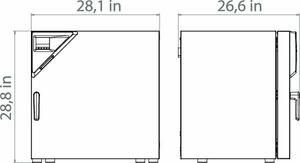

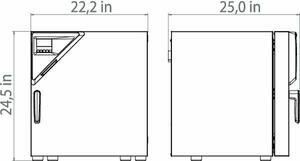

Depth |
Height |
Width |
Power Requirement |
| 9010-0313 |
2 std./4 max. |
3 min |
22.26 in |
24.63 in |
22.06 in |
230 V, 50/60 Hz |
| 9010-0314 |
2 std./4 max. |
3 min |
22.26 in |
24.63 in |
22.06 in |
120 V, 50/60 Hz |
| 9010-0315 |
2 std./5 max. |
3 min |
23.84 in |
28.57 in |
27.97 in |
230 V, 50/60 Hz |
| 9010-0316 |
2 std./5 max. |
3 min |
23.84 in |
28.57 in |
27.97 in |
120 V, 50/60 Hz |
| 9010-0319 |
2 std./8 max. |
3 min |
29.94 in |
33.29 in |
31.91 in |
230 V, 50/60 Hz |
| 9010-0320 |
2 std./8 max. |
3 min |
29.94 in |
33.29 in |
31.91 in |
120 V, 50/60 Hz |
| 9010-0322 |
2 std./16 max. |
4 min |
34.28 in |
62.6 in |
45.9 in |
240 V, 50/60 Hz |
| 9010-0321 |
2 std./16 max. |
4 min |
34.28 in |
62.6 in |
45.9 in |
230 V, 50/60 Hz |
