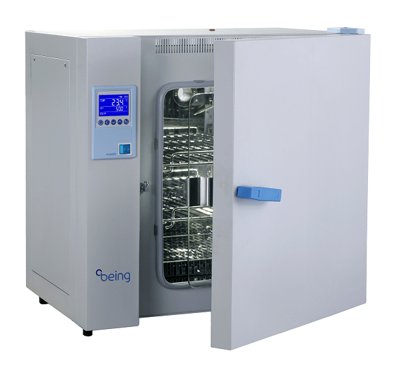

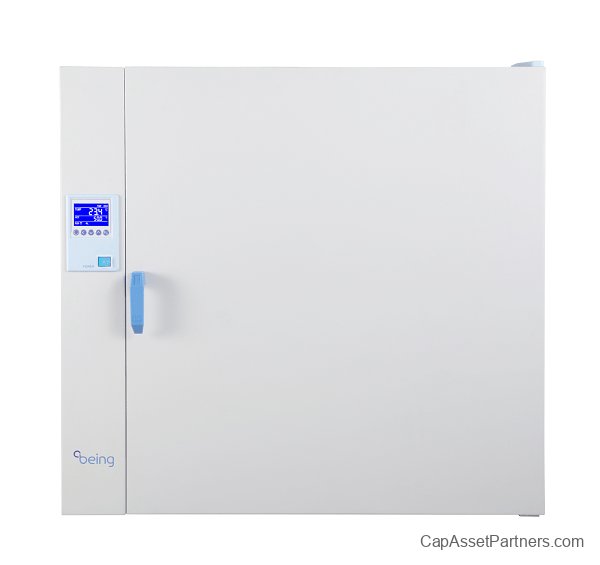

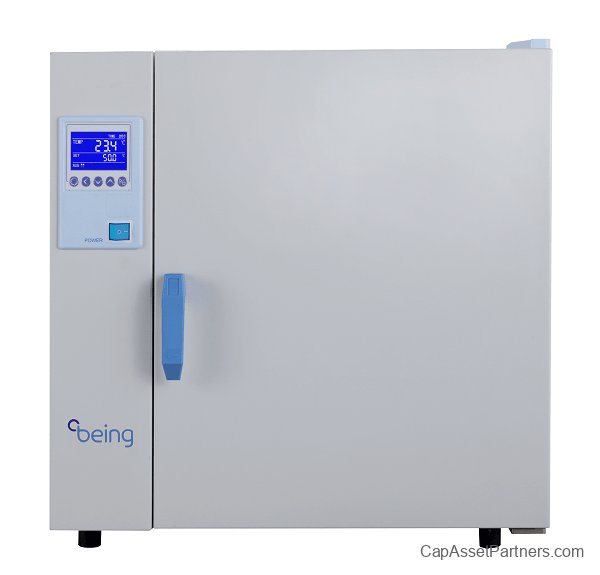

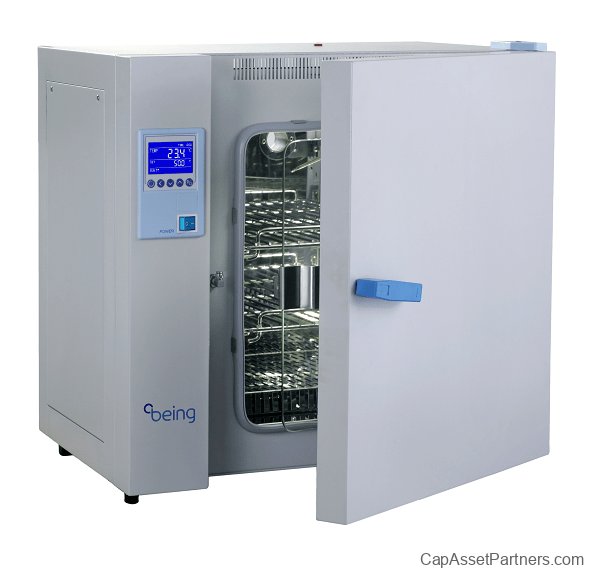

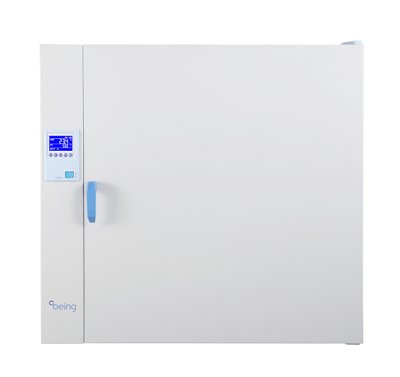

BIF Series Mechanical Convection Incubators
The BIF Series Mechanical Convection Incubators offer a range of flexible sizes—0.6 Cu ft, 1.2 Cu ft, 2.0 Cu ft, 4.5 Cu ft, and 8.1 Cu ft—designed to meet the diverse needs of various laboratory applications across multiple industries. These incubators ensure optimal temperature accuracy and control, due to the advanced BEING Controller, while prioritizing safety and user ease.
Key Features:
- P.I.D temperature controller provides precise and reliable temperature control.
- Automatic calibration function allows adaptation to diverse laboratory environments.
- Programmability for 7 periods and 9 steps per period enables a total of 63 programmable steps.
- Mechanical convection supports efficient circulation of warm air for uniform heating.
- Inner chamber crafted from corrosion-resistant mirror stainless steel for durability.
- Round, curved inner angles facilitate easy cleaning.
- Anti-skid shelf design allows for single-handed operation.
- Auto Start feature resumes operation after power loss or return.
- Temperature deviation alarm alerts for any fluctuations.
- Over temperature set point alarm ensures safety during use.
- Over current protection safeguards the system integrity.
- Independent over-temperature protection complies with DIN 12880 International standards, providing dual protection.
- Shelf configurations vary: BIF-16: 2/5 shelves, BIF-35: 2/5, BIF-55: 2/6, BIF-120: 2/10, BIF-200: 2/16.
Specifications:
| SKU |
# of Shelves |
Controller |
Temperature Stability |
Temperature Uniformity |
Type |
Shelf Capacity |
Max. # of Shelves |
Ambient Temperature Range |
| BH15255U |
2 Supplied |
PID Temperature Controller |
± 0.2°C |
≤0.8°C @ 37°C |
Mechanical Convection |
44.1 lb |
4 |
5°C to 80°C |
| BH152120U |
2 Supplied |
PID Temperature Controller |
± 0.2°C |
≤0.8°C @ 37°C |
Mechanical Convection |
44.1 lb |
10 |
5°C to 80°C |
| BH15235U |
2 Supplied |
PID Temperature Controller |
± 0.2°C |
≤0.8°C @ 37°C |
Mechanical Convection |
44.1 lb |
5 |
5°C to 80°C |
| BH152200U |
2 Supplied |
PID Temperature Controller |
± 0.2°C |
≤0.8°C @ 37°C |
Mechanical Convection |
44.1 lb |
16 |
5°C to 80°C |
Additional Information:
| SKU |
Model # |
Dimensions |
Access Port |
Internal Dimensions |
Certification |
Plug Type |
| BH15255U |
BIF-55 |
26.2 in x 25.0 in x 24.0 in |
5 mm |
15.8 in x 16.3 in x 13.4 in |
ETL |
NEMA 5-15 |
| BH152120U |
BIF-120 |
30.9 in x 29.3 in x 28.9 in |
5 mm |
20.5 in x 20.9 in x 18.3 in |
ETL |
NEMA 5-15 |
| BH15235U |
BIF-35 |
23.0 in x 20.9 in x 23.6 in |
5 mm |
12.6 in x 12.6 in x 13.0 in |
ETL |
NEMA 5-15 |
| BH152200U |
BIF-200 |
36.0 in x 35.4 in x 31.7 in |
5 mm |
25.6 in x 25.6 in x 21.5 in |
ETL |
NEMA 5-15 |
